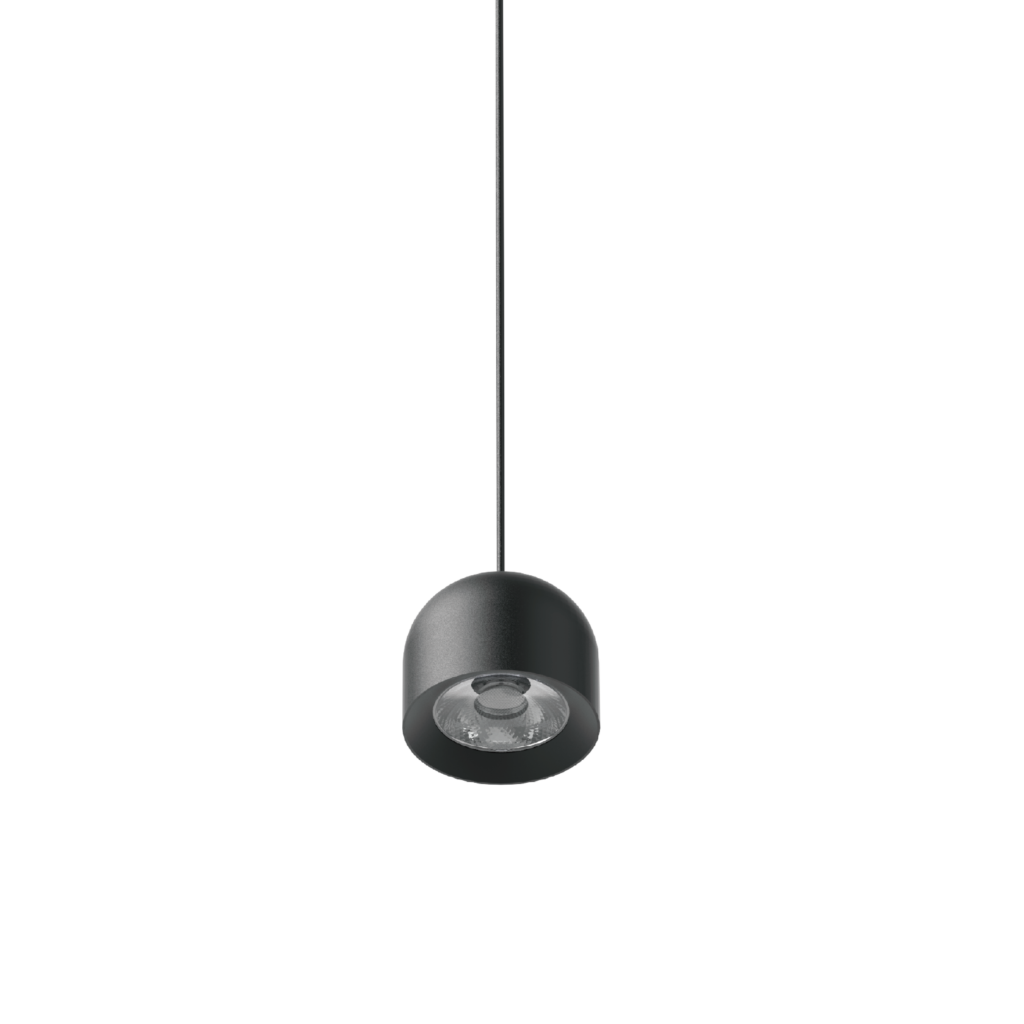

ACME GLASS - Ø68 Engine Glass Pendant
| IP Rating : | IP20 |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optional accessories : | Honeycomb, Elliptical Lens,Solite lens |
* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
