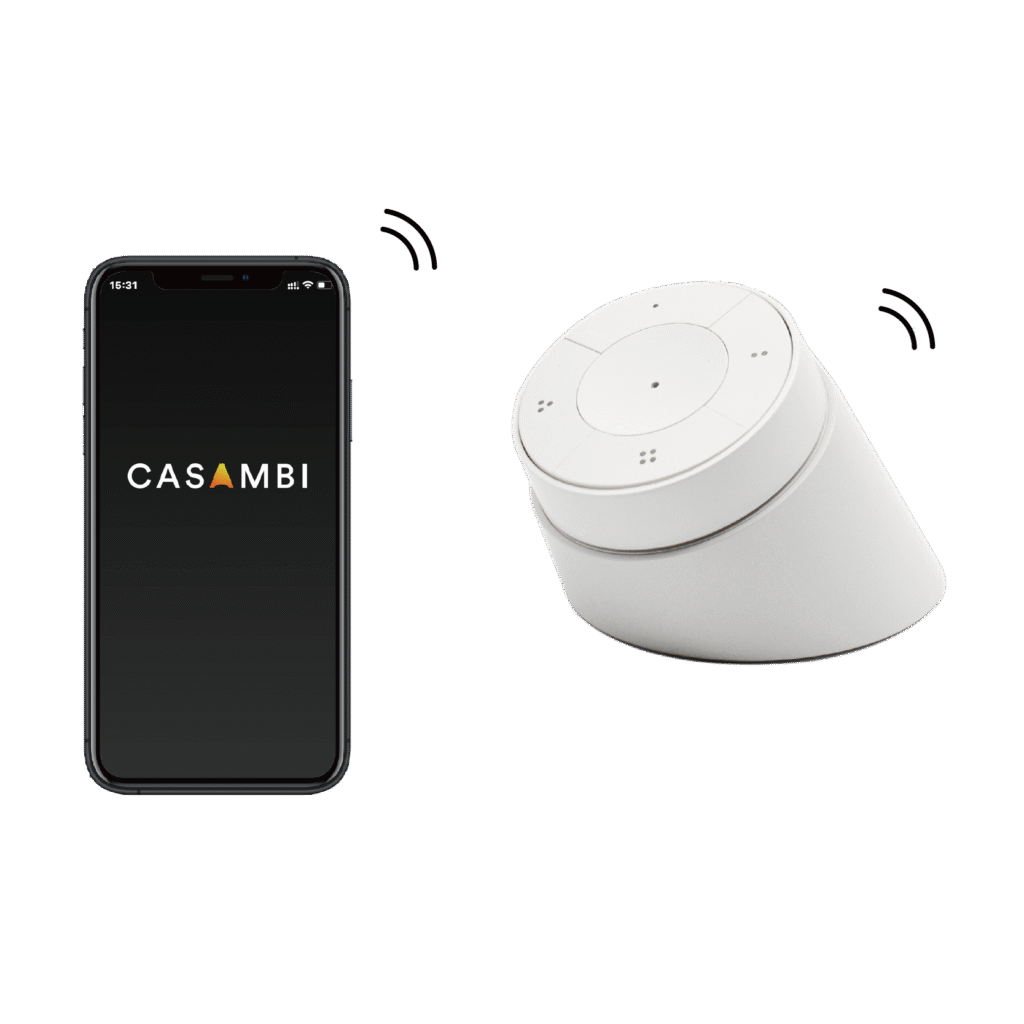

Power your project with DuraSmart, built on Casambi—the industry‑leading Bluetooth Low Energy platform for smart lighting. Get fast installation, intuitive control, and dependable performance.
In partnership with trusted LED driver manufacturers, DuraGreen makes Casambi integration simpler and more cost‑effective. Configure dynamic, sustainable lighting scenes with confidence—prioritising aesthetics, energy efficiency, and long‑term serviceability.

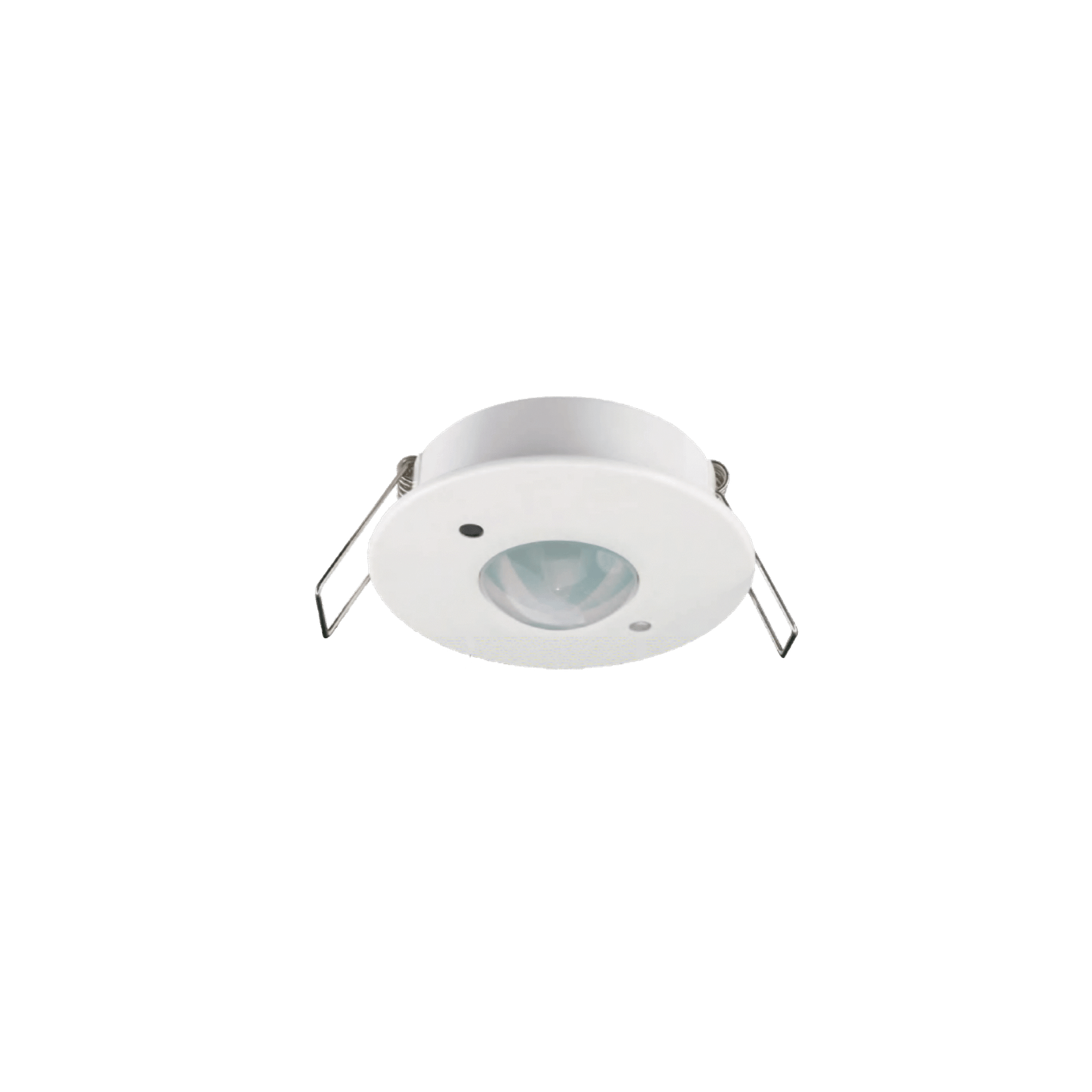

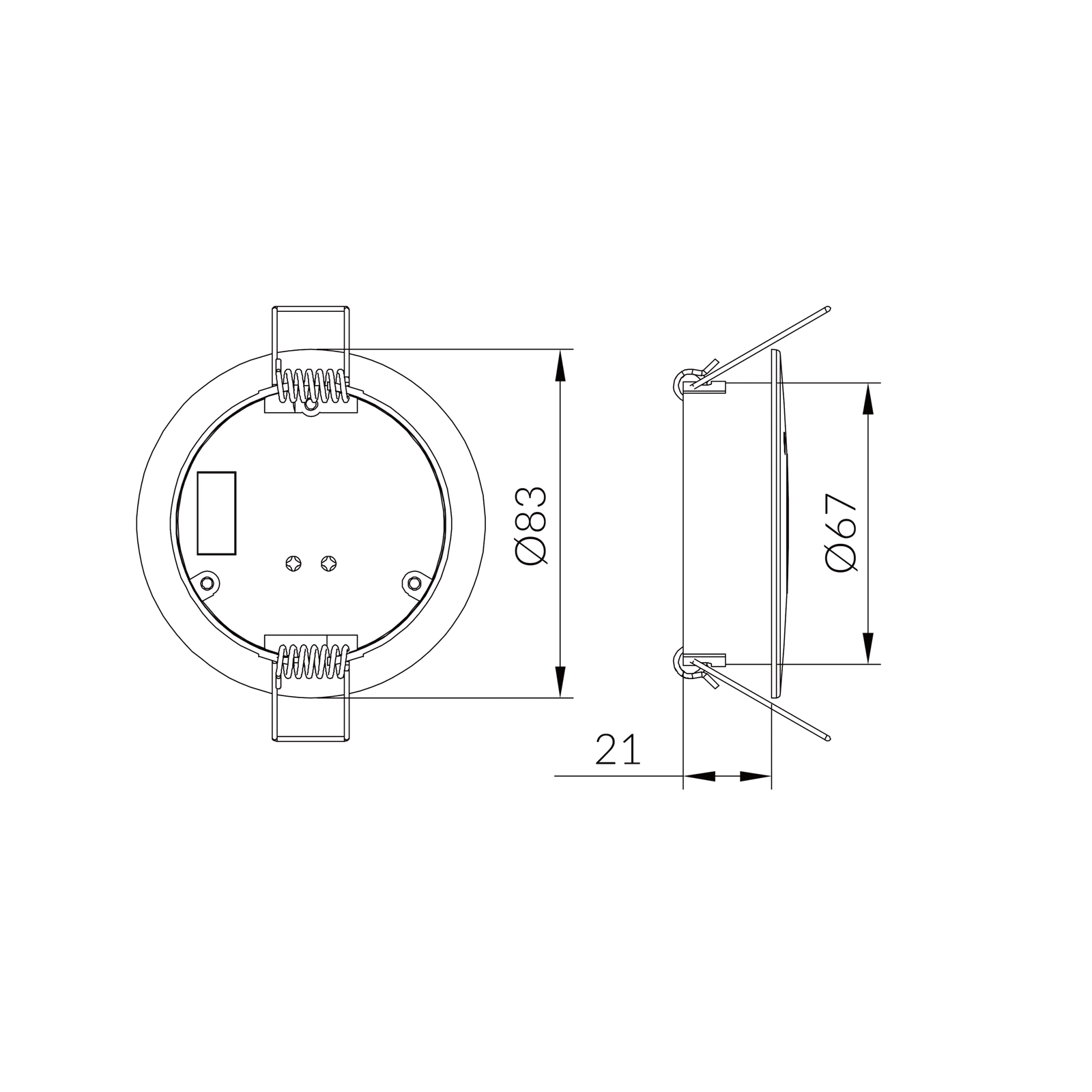

| Cutout : | 70mm |
| Power Supply : | 12-24VDC |
| Current Consumption : | < 20mA |
| Dimming Control : | DALI |
| DALI Control Mode : | Broadcast |
| Occupancy Sensing Type : | PIR sensor |
| Lux Detection Range : | 0-1000 Lux |
| Mounting Height : | Recommended height: 8ft (2.5m) |
| Detection Angle : | 130° |
| Detection Range : | Up to 5 meters @ 2.5m installation height |
| Safety Certification : | cULus Listed, CE |

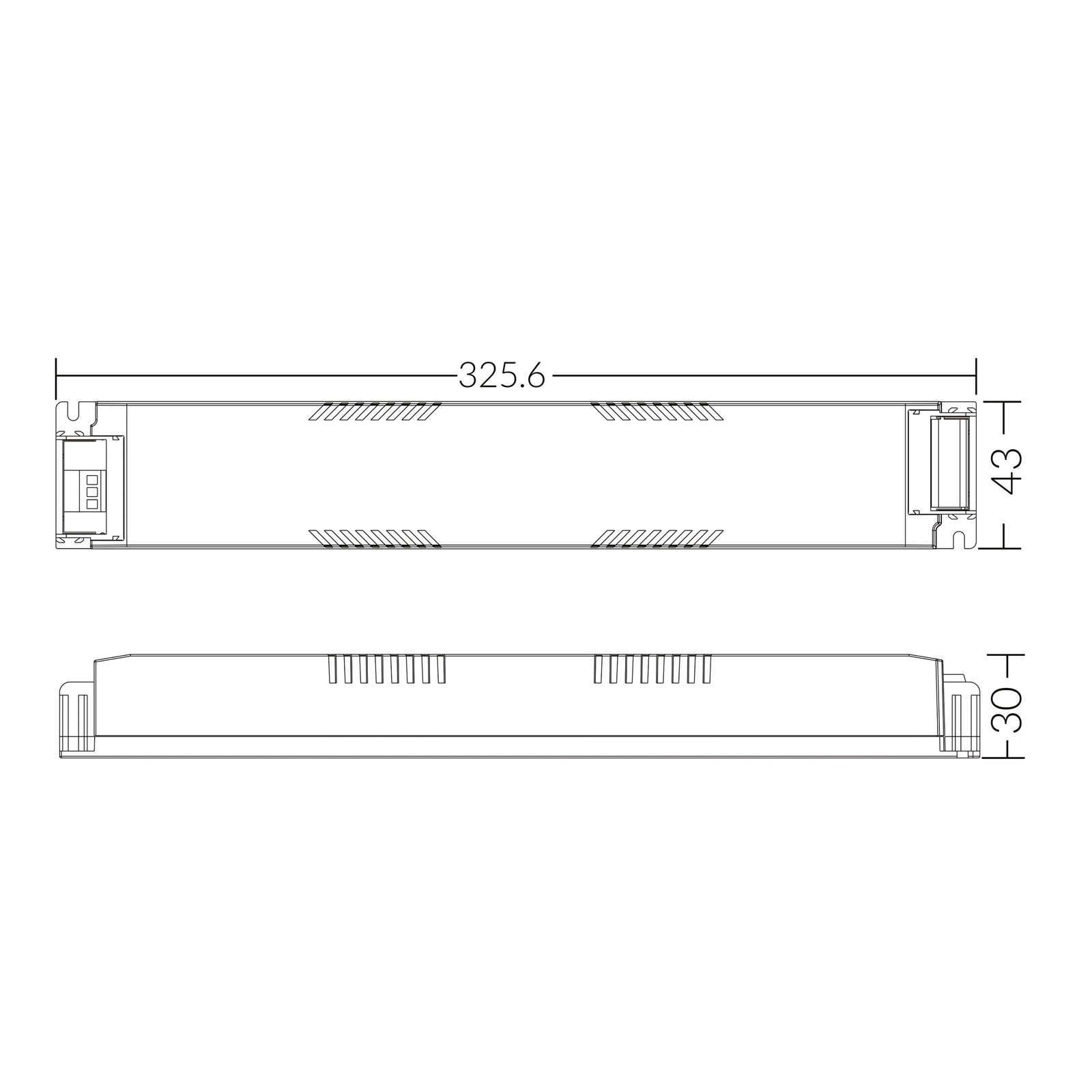

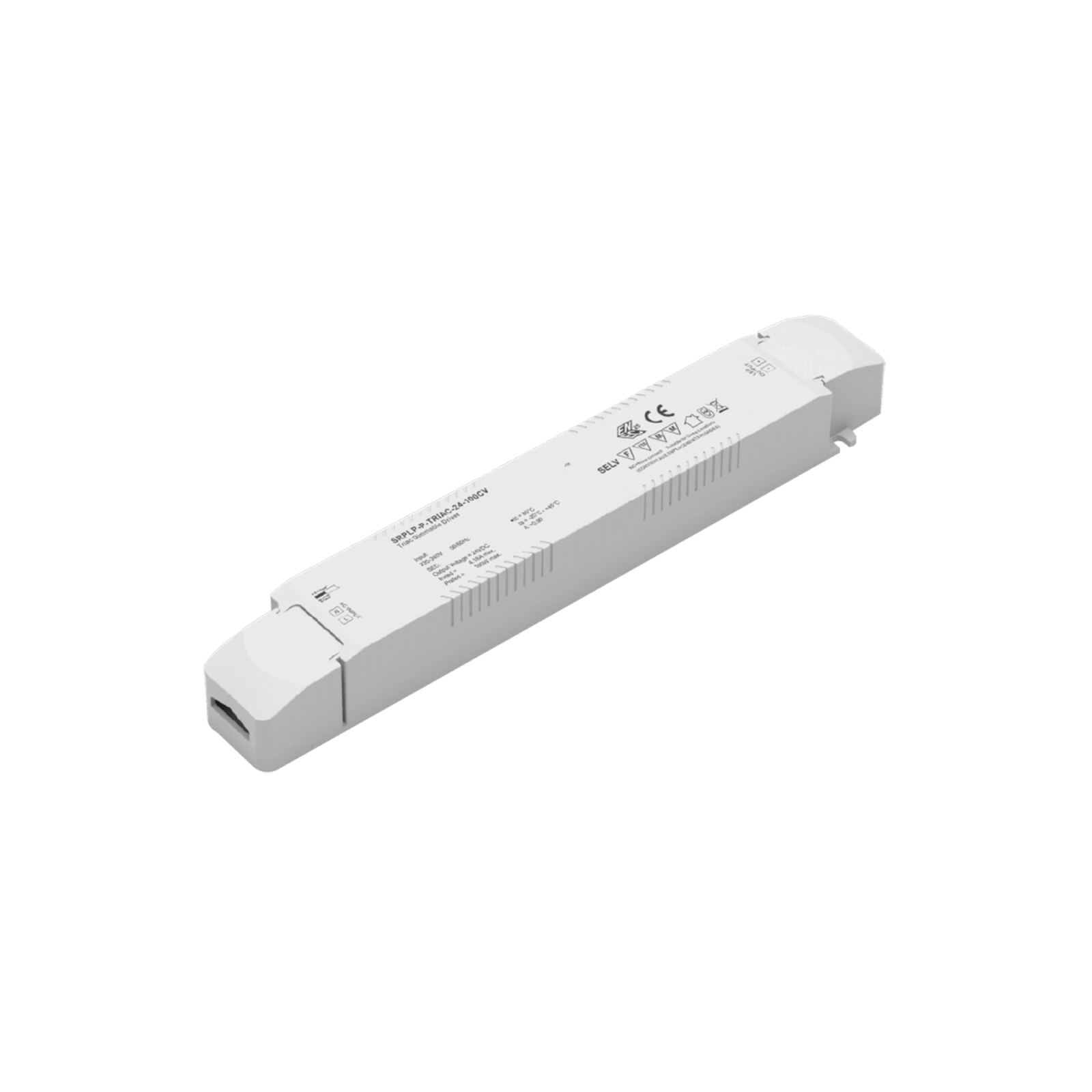

| LED Channel : | 2 |
| DC Voltage : | 24V DC |
| Max. Current : | Max. 6.25A(CH1+CH2≤6.25A） |
| Rated Power : | Max. 150W |
| Voltage Range : | 220-240V AC |
| Power Factor (Typ.) : | > 0.98 @ 230VAC |
| Efficiency (Typ.) : | 93% @ 230VAC full load |
| Dimming Interface : | Casambi |
| Dimming Range : | 0.1%-100% |
| Dimming Curve : | Linear/Logarithmic optional |
| Casambi support : | https://casambi.com/support/ |
| LED Channel : | 1 |
| DC Voltage : | 24V DC |
| Max. Current : | Max. 6.25A |
| Rated Power : | Max. 150W |
| Voltage Range : | 220-240V AC |
| Efficiency (Typ.) : | 93% @ 230VAC full load |
| Dimming Interface : | Casambi |
| Dimming Range : | 0.1%-100% |
| 0.1%-100% : | Linear/Logarithmic optional |
| Casambi support : | https://casambi.com/support/ |

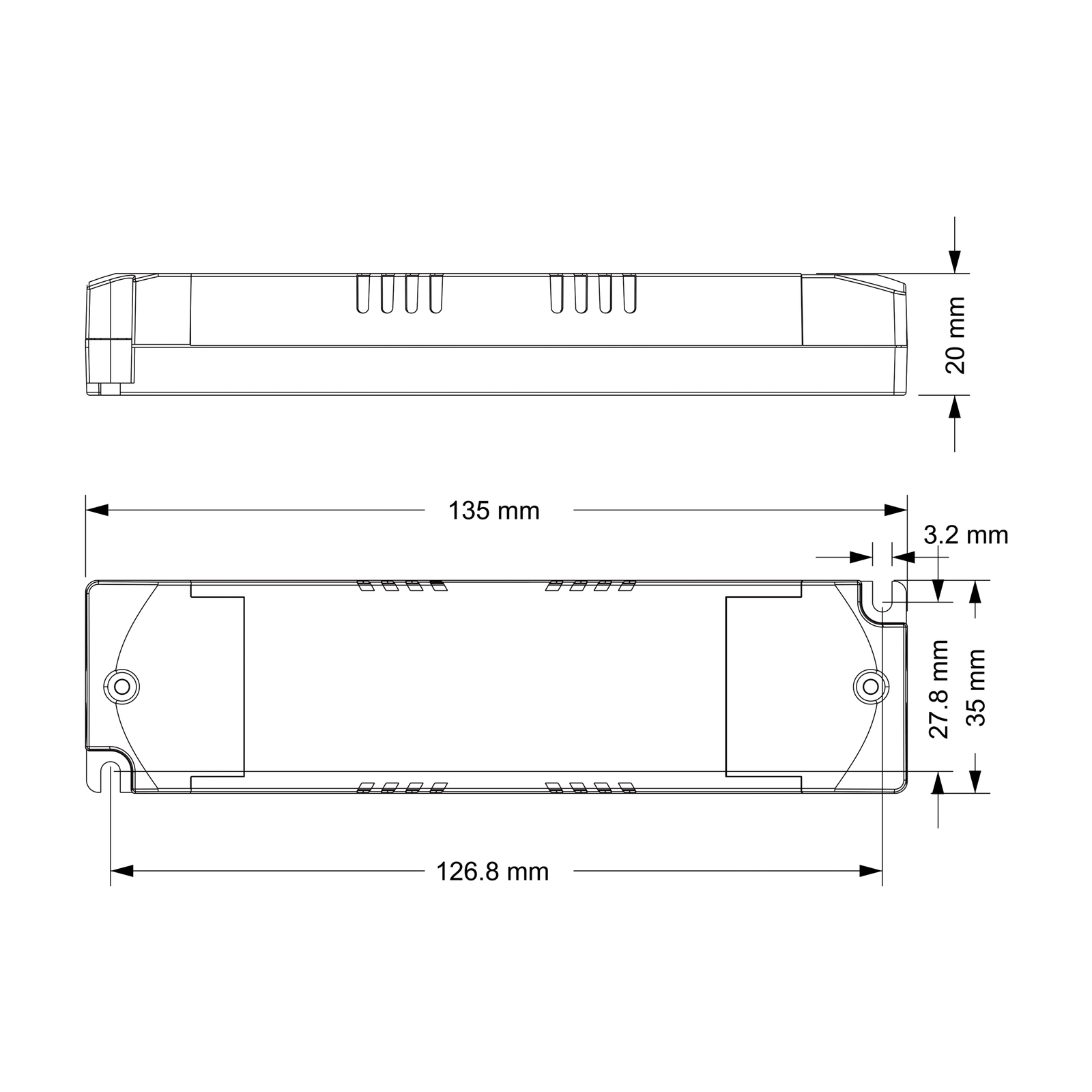

| LED Channel : | 2 |
| DC Voltage : | 6-42V, Max.50V |
| Current : | 100-700mA via NFC tool; Min.current gear lower to 0.1mA, default 350mA |
| Voltage Range : | 220-240VAC/220-240VDC |
| Rated Power : | Max. 15W |
| Efficiency (Typ.) : | ＞77% @ 230VAC full load |
| Dimming Range : | 0.01%-100%@ Max current |
| Dimming Curve : | Linear/ Logarithmic optional |
| Safety Standards : | EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023 |
| Casambi support : | https://casambi.com/support/ |

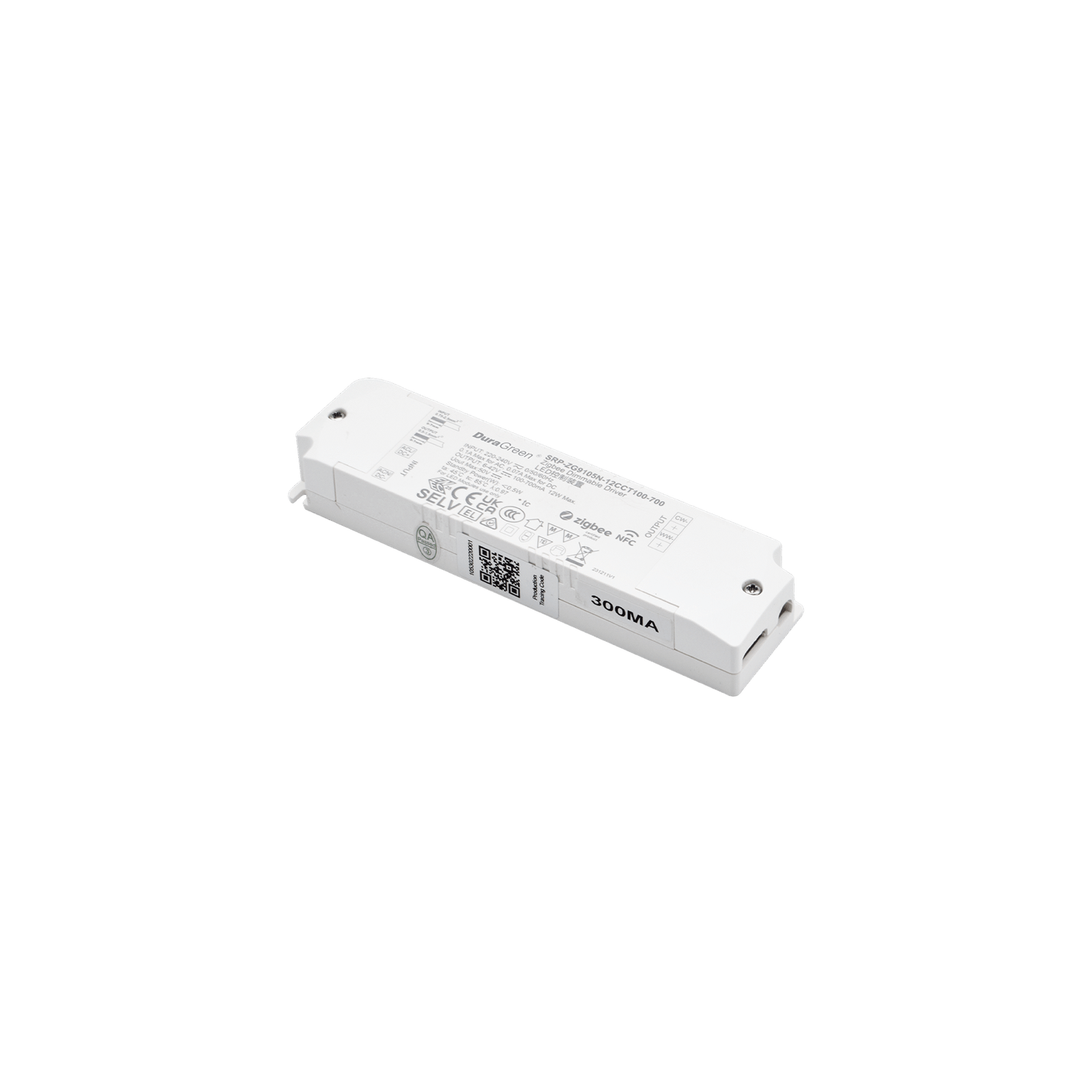

| LED Channel : | 1 |
| Current : | 100-700mA via NFC tool; Min.current gear lower to 0.1mA, default 300mA |
| DC Voltage : | 6-42V, Max.50V |
| Voltage Range : | 220-240VAC/220-240VDC |
| Rated Power : | Max. 15W |
| Efficiency (Typ.) : | ＞77% @ 230VAC full load |
| Dimming Range : | 0.01%-100%@ Max current |
| Dimming Curve : | Linear/ Logarithmic optional |
| Safety Standards : | EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023 |
| Casambi support : | https://casambi.com/support/ |
