ACME

by DuraGreen

Circular economy principles are intricately woven into every stage of our design and manufacturing process, making ACME a shining example of sustainability.

These fixtures are fully modular, allowing for easy repair, reuse, and end-of-life reintroduction into standard stock.

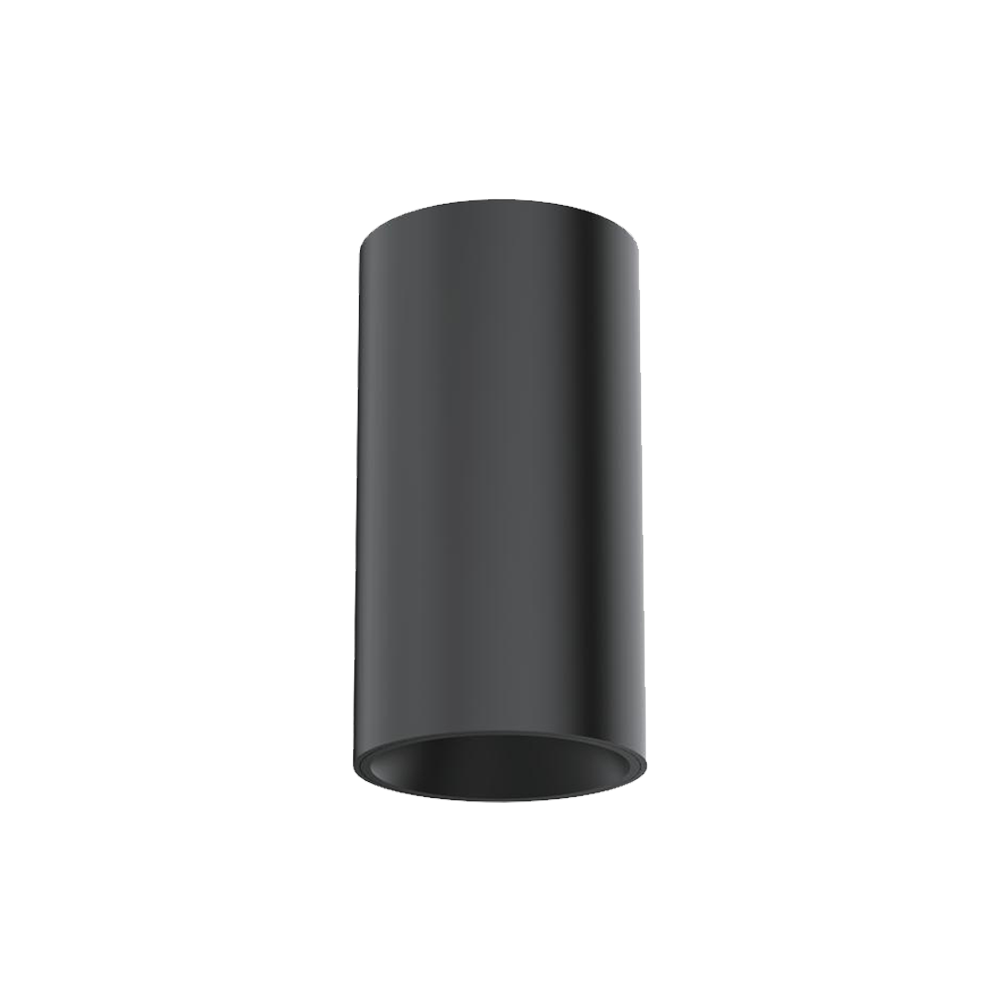

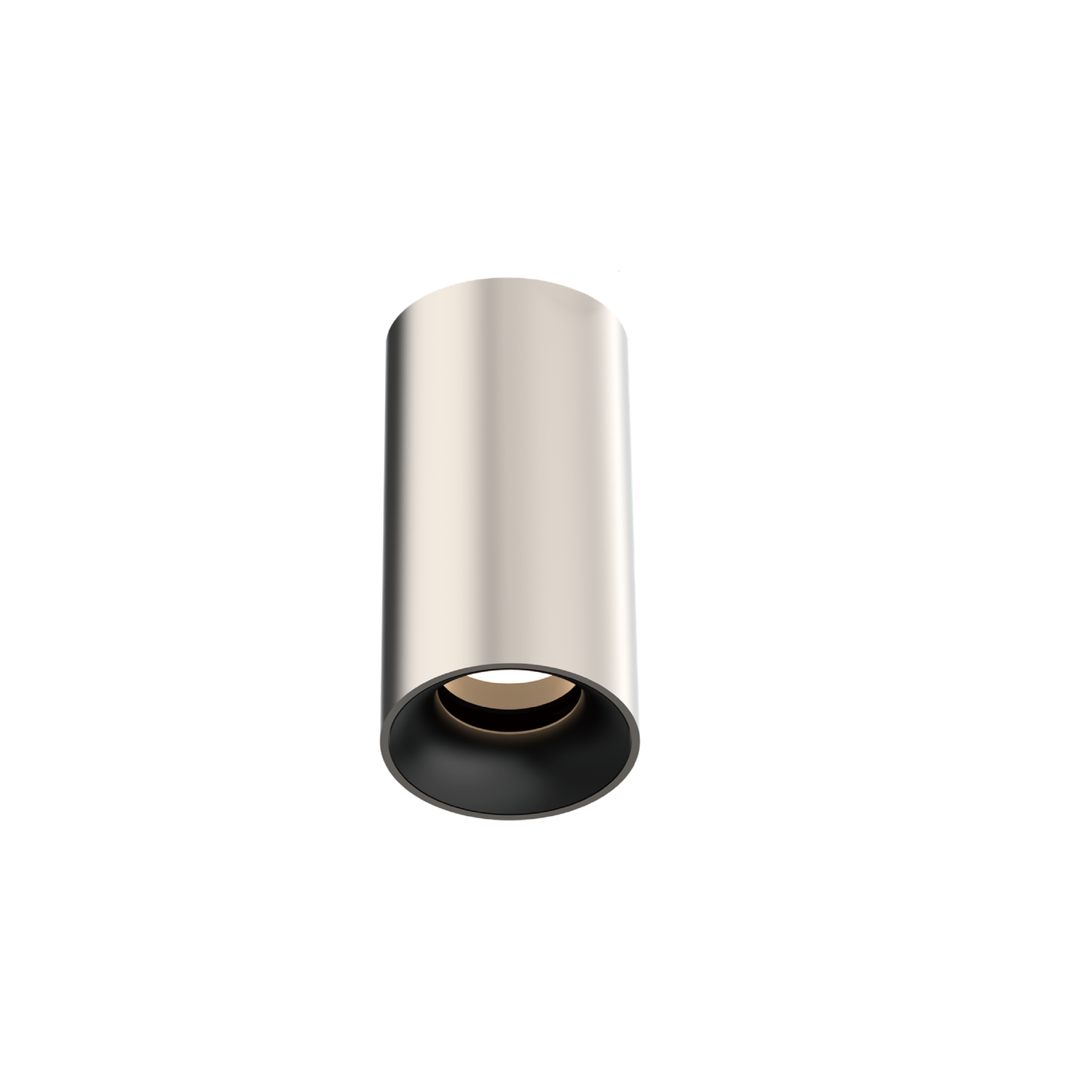

ACME - 57 Surface Fixed

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :15°/24°/36°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS

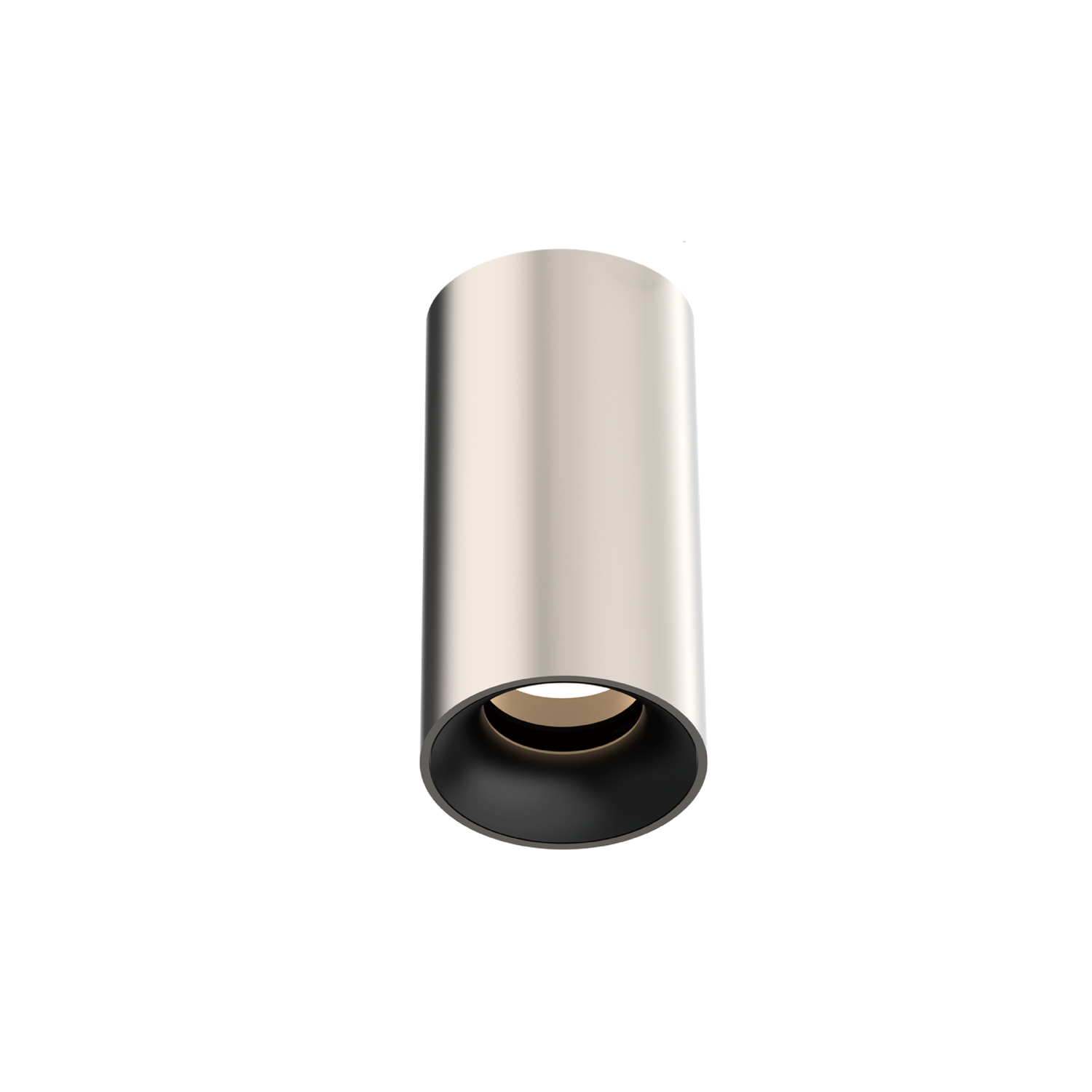

ACME - 68 Surface Fixed

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :15°/24°/36°/50°
UGR :<10
CRI :>50,000 hrs (L70 B10)
Lifetime :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
CCT :110
Typical Source Efficacy (Im/W) :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Control :2 Step MacAdams
Binning :AC220-240V 50/60Hz
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS
