ACME FIXED

by DuraGreen

ACME Fixed Downlights bring refined performance to a complete family of architectural luminaires, from compact 36mm 5W fittings to powerful 110mm 30W solutions. With a choice of beam angles, colour temperatures, installation styles, and intelligent controls including DALI and Casambi, ACME gives designers the freedom to create precise, comfortable light across a wide range of spaces. Selected 78mm and 110mm sizes also offer dual optics with optional reflector optics for enhanced lumen efficiency.

Close-up of a glossy dark gray cylindrical pipe with a rounded top against a black background.
✖

SPEC

SIZE

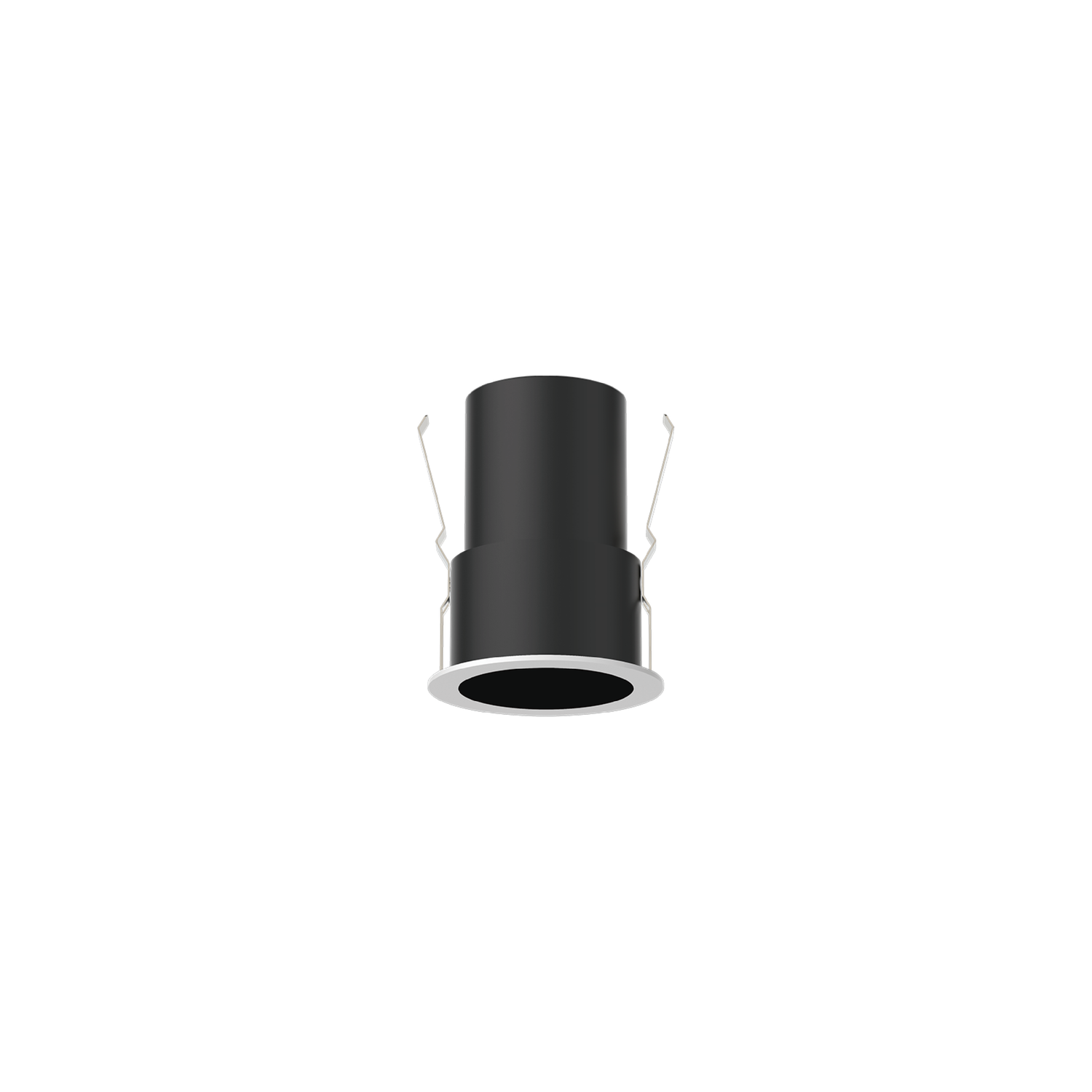

ACME FIXED - 36 Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP20
Optics :24°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :103
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 12V 300mA 5W
Ambient temp :-20 ℃ to 25 ℃
Material :Fine aluminium 6063A

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

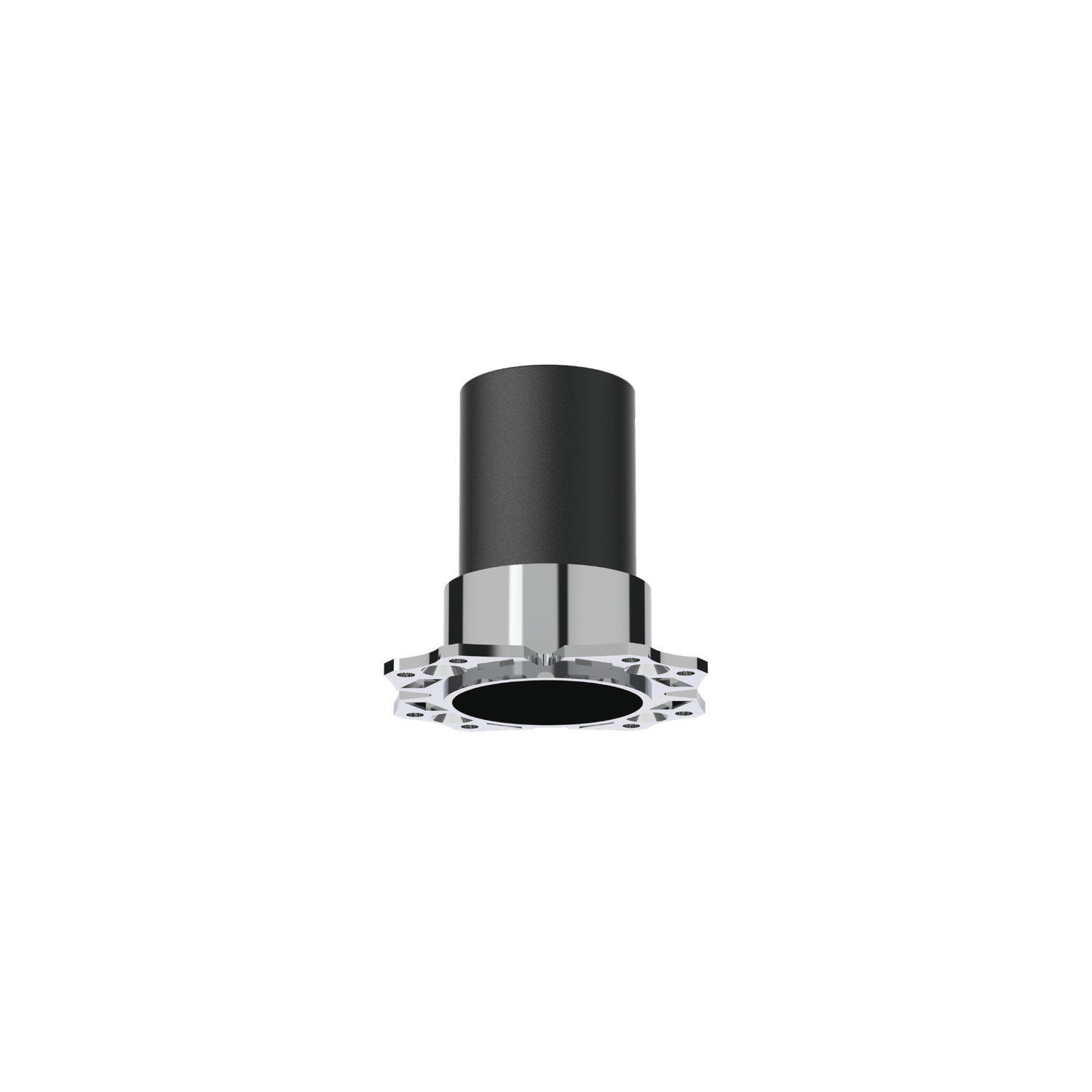

ACME FIXED - 36 Trimless Fixed

Copy link QUOTE Share

IP Rating :IP20
Optics :24°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :103
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 12V 300mA 5W
Ambient temp :-20 ℃ to 25 ℃
Material :Fine aluminium 6063A

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

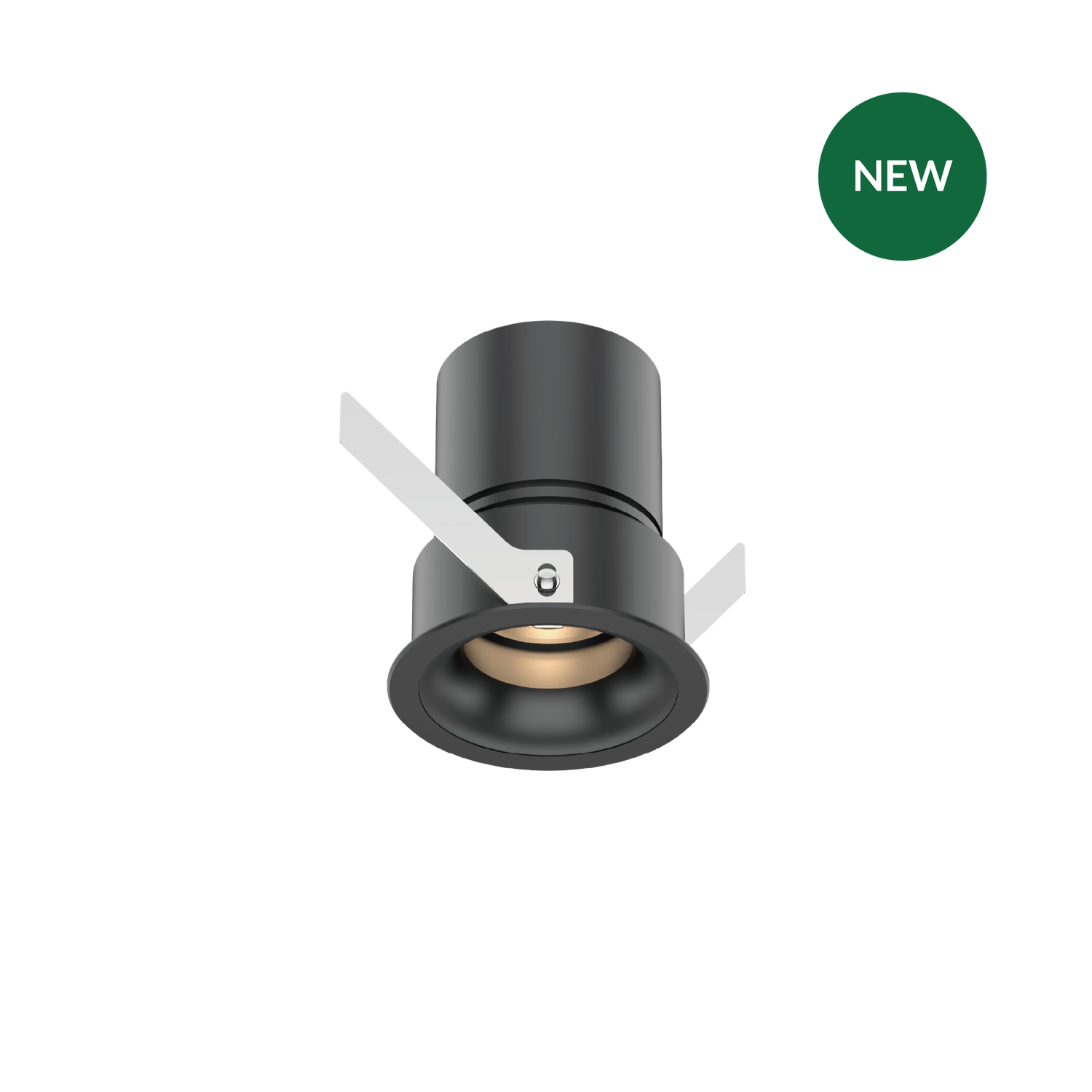

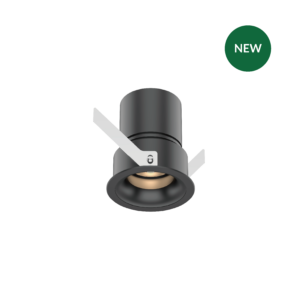

ACME FIXED - 57 Curve Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°/65°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W / DC 36V 200mA 8W / DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

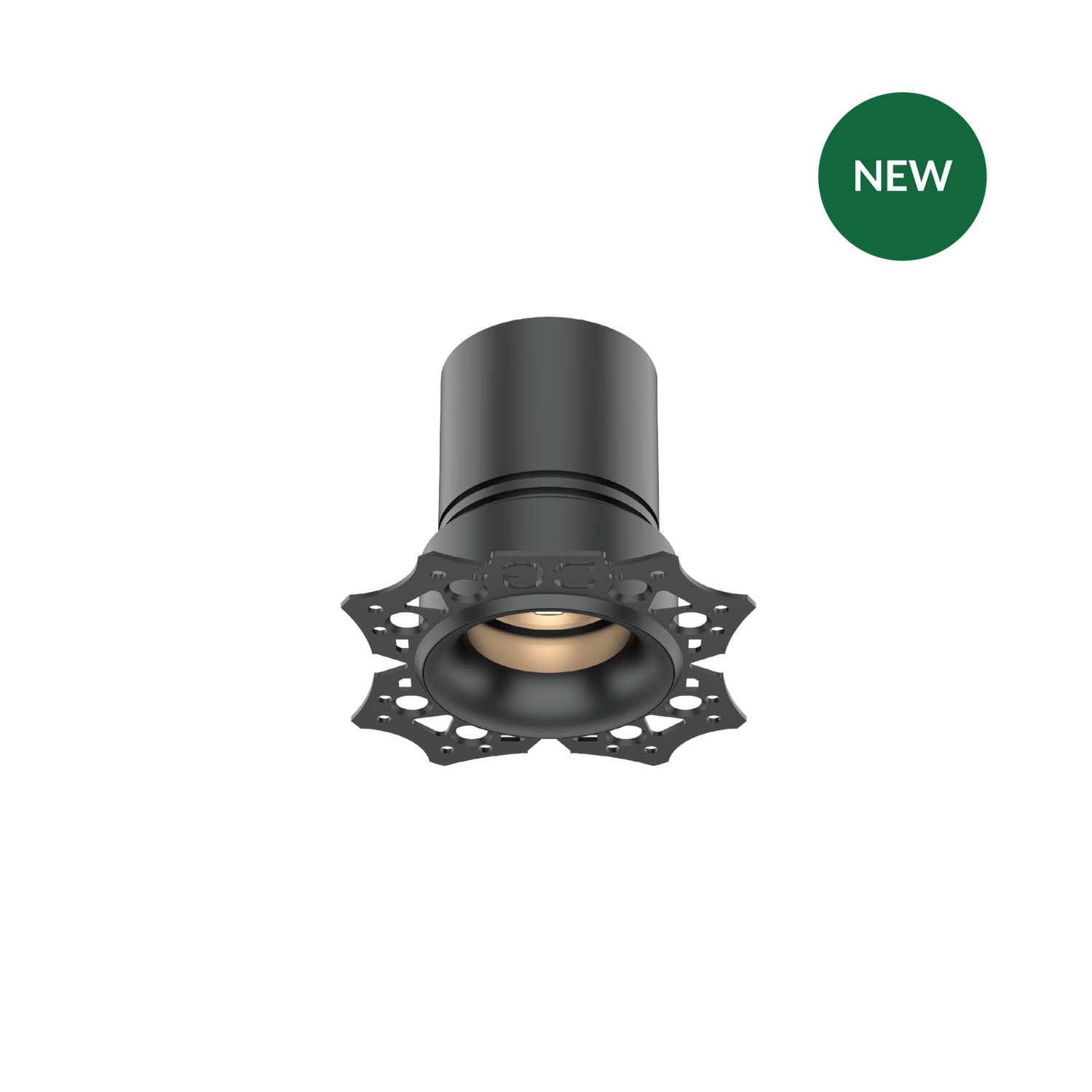

ACME FIXED - 57 Curve Trimless Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°/65°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W / DC 36V 200mA 8W / DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

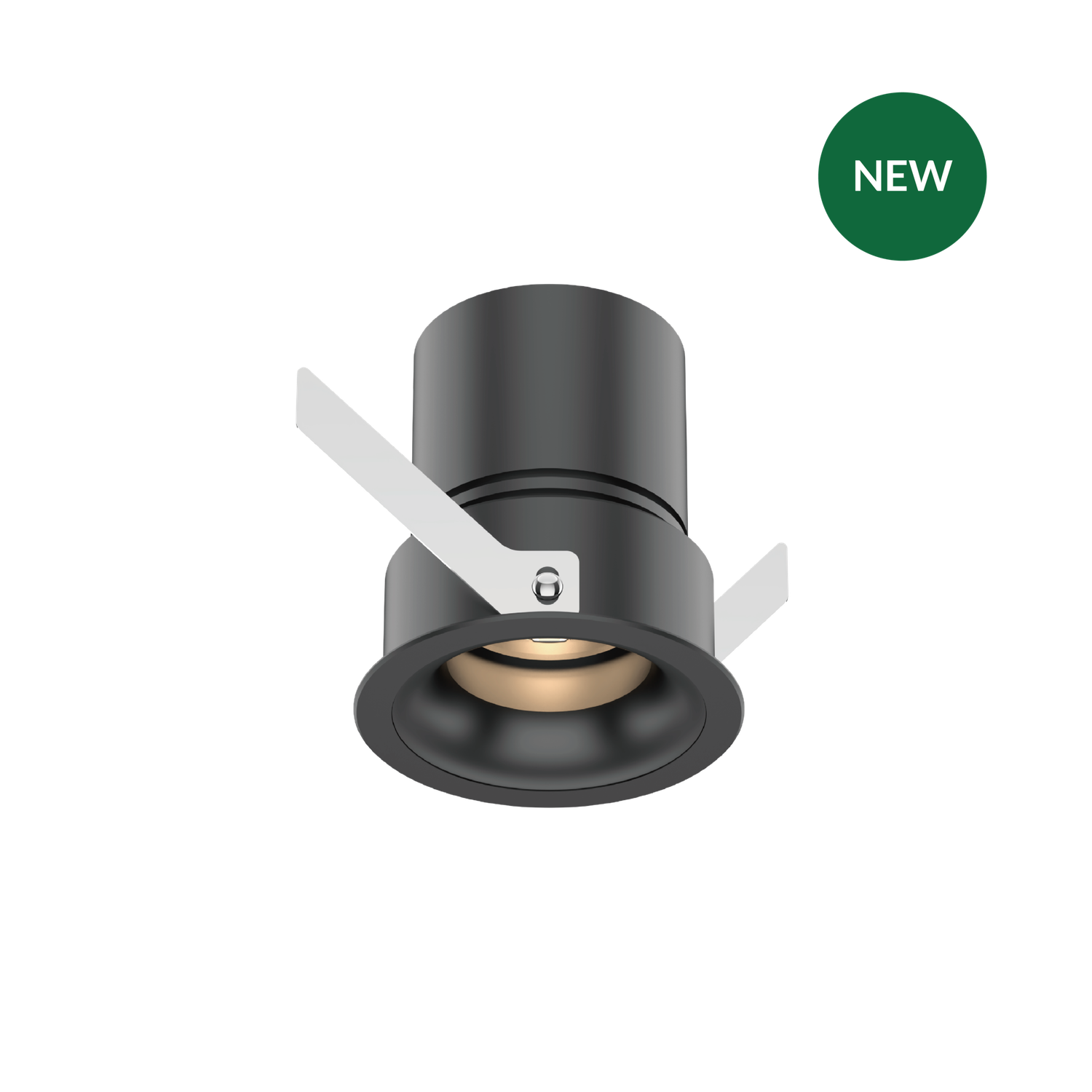

ACME FIXED - 68 Curve Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°/65°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

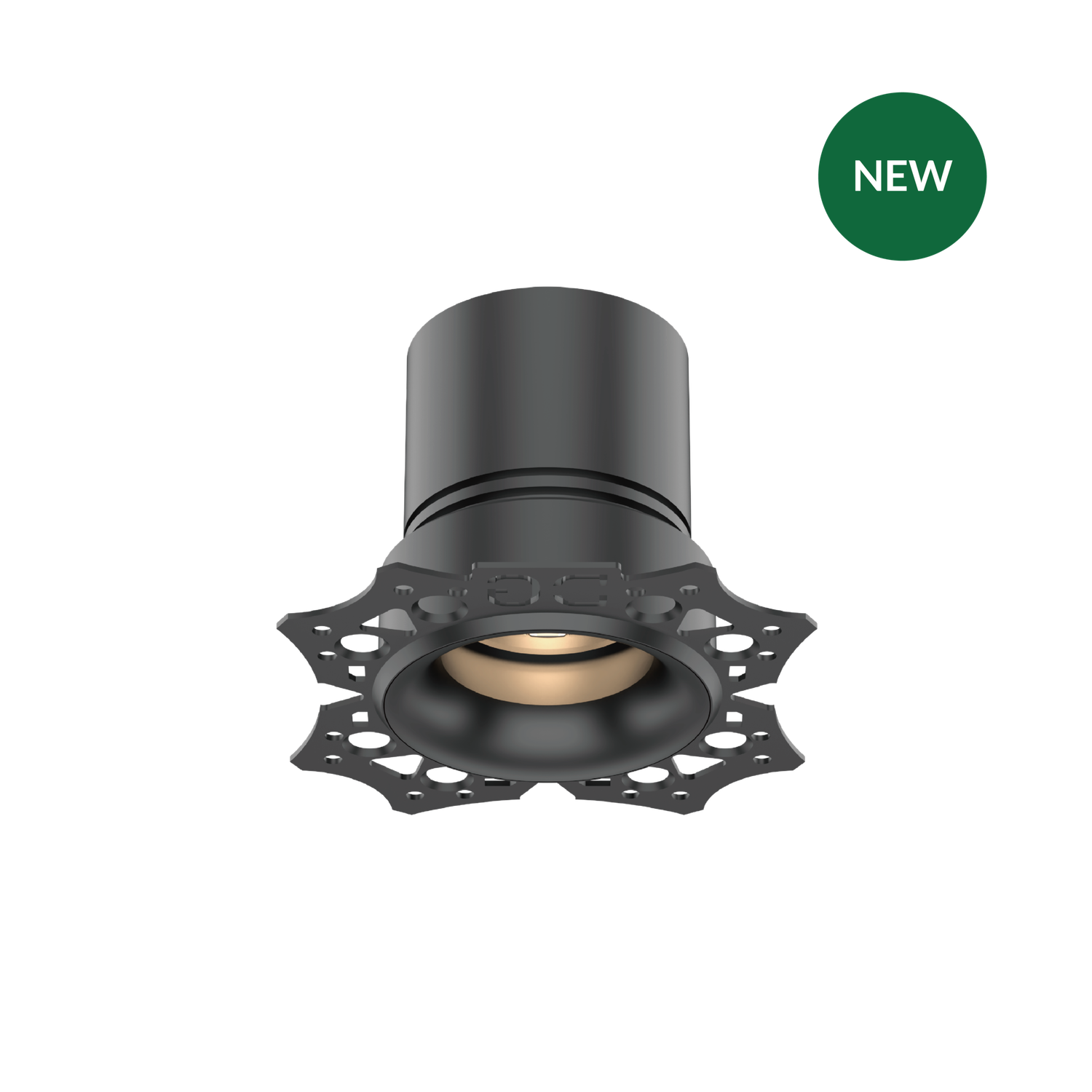

ACME FIXED - 68 Curve Trimless Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°/65°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

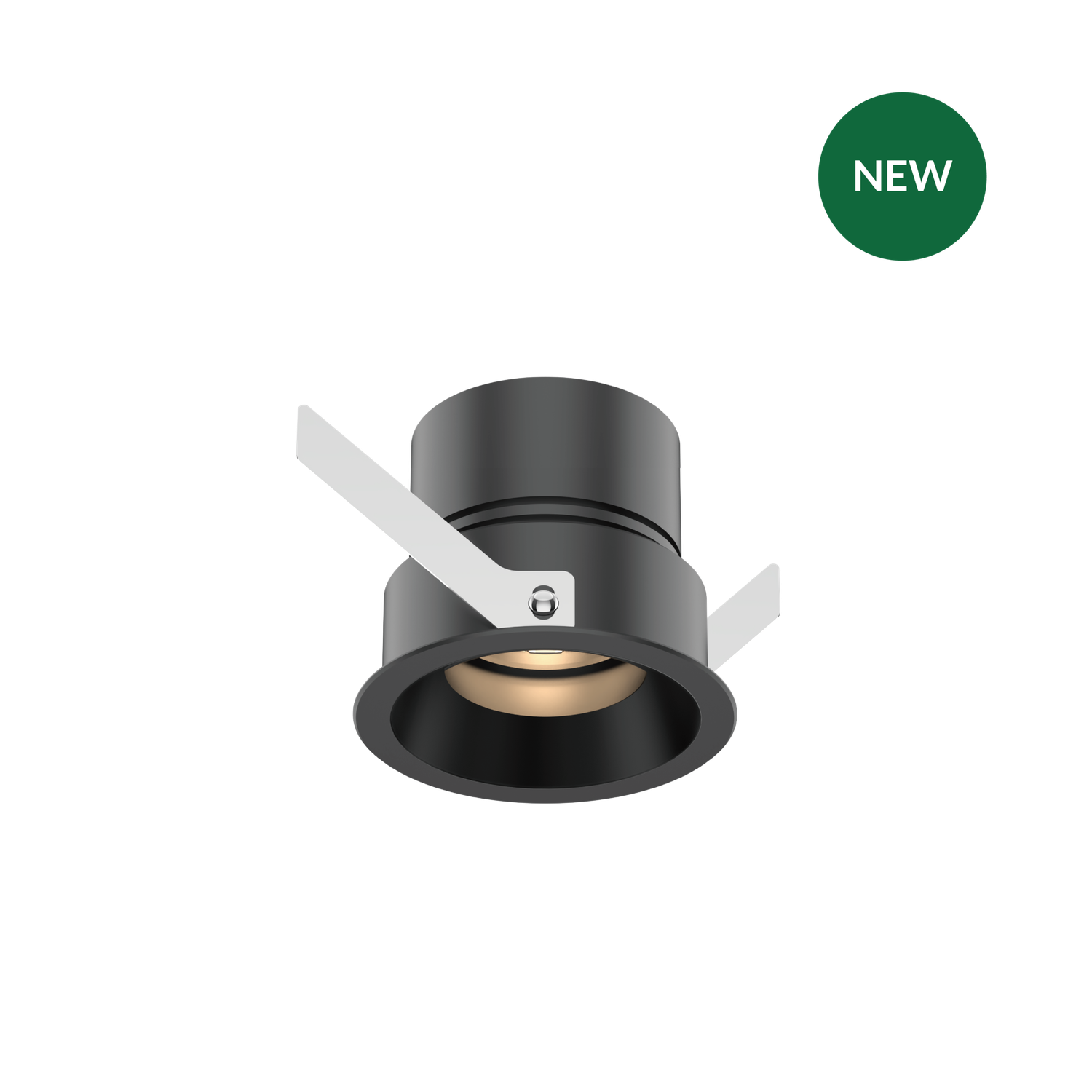

ACME FIXED - 68 Shallow Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

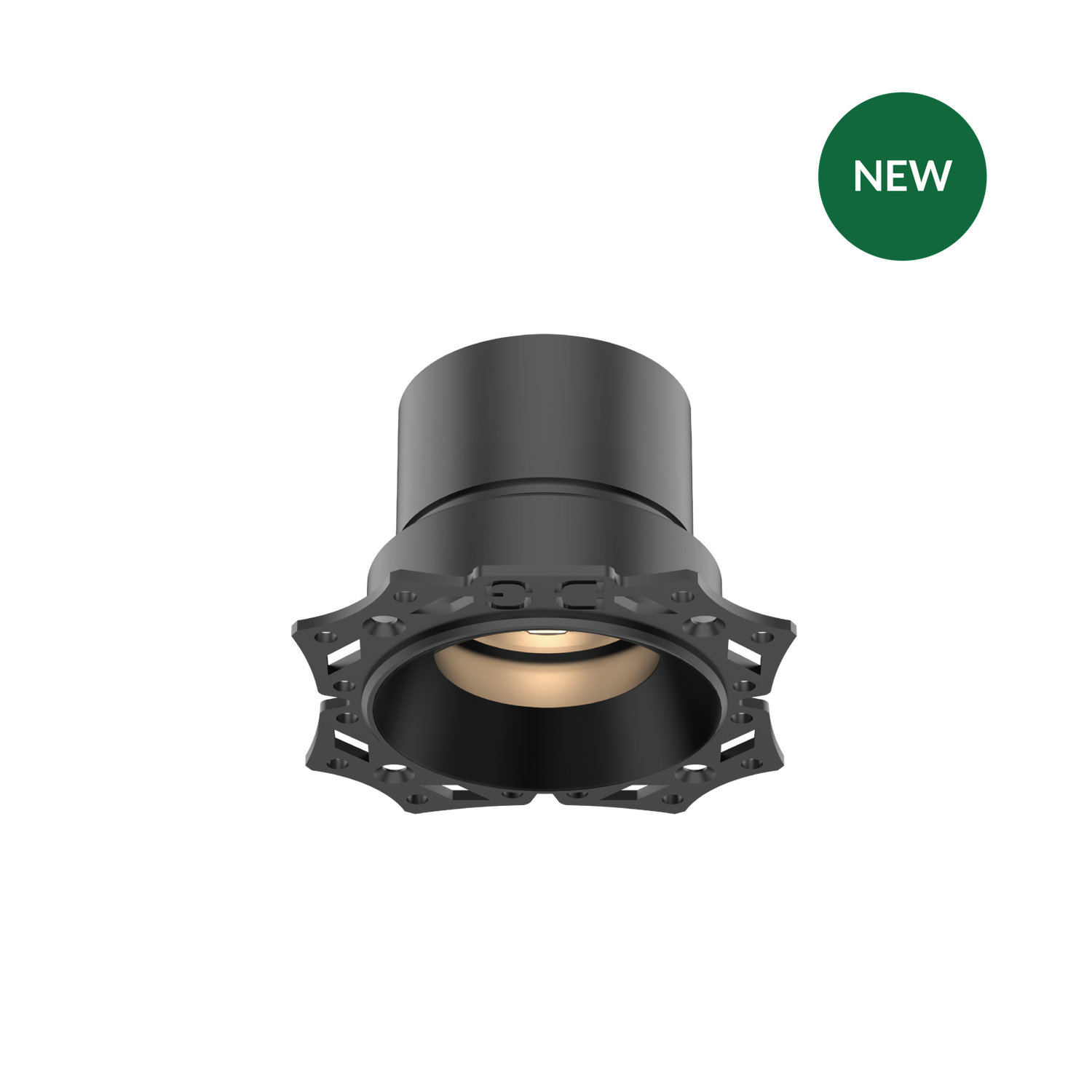

ACME FIXED - 68 Shallow Trimless Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

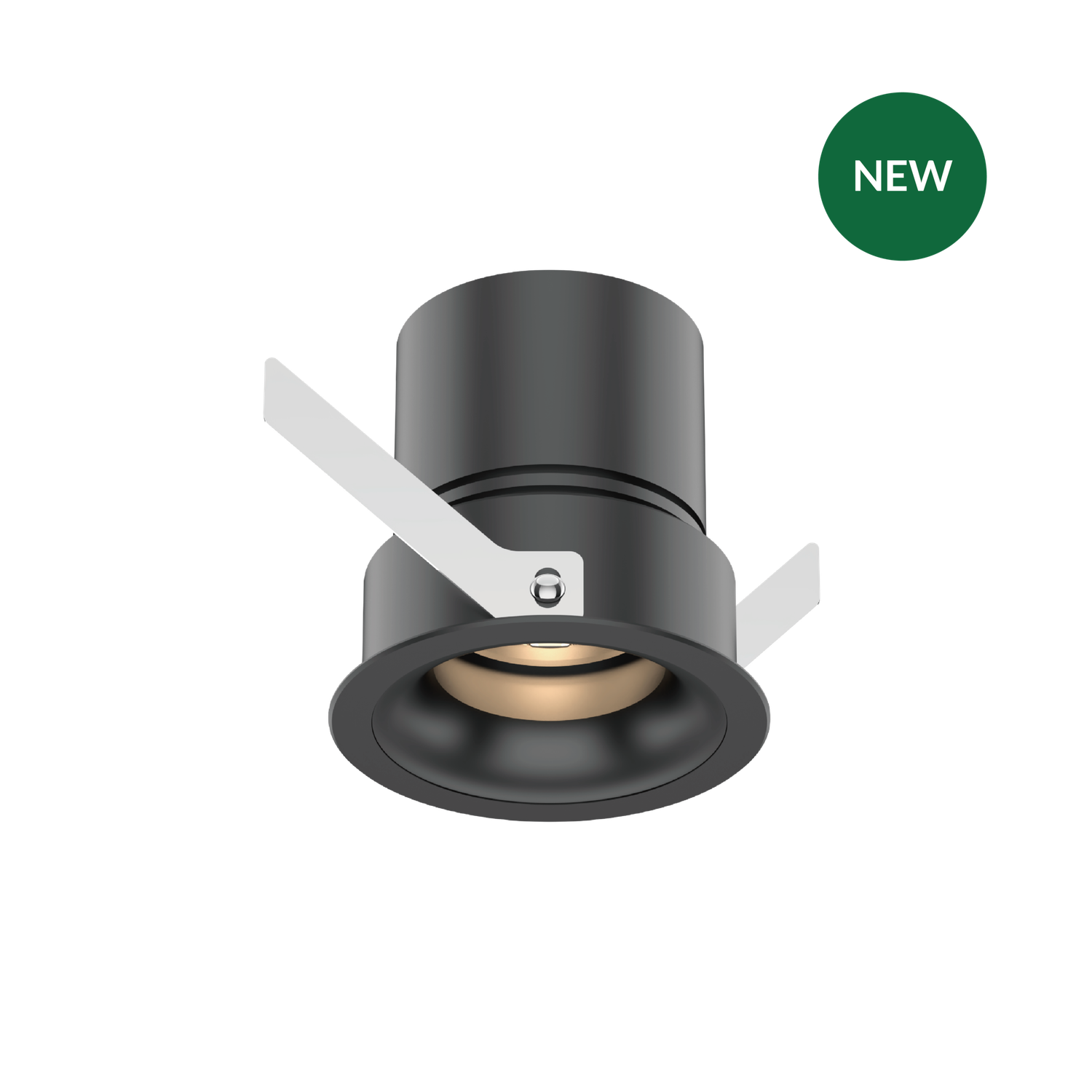

ACME FIXED - 78 Curve Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

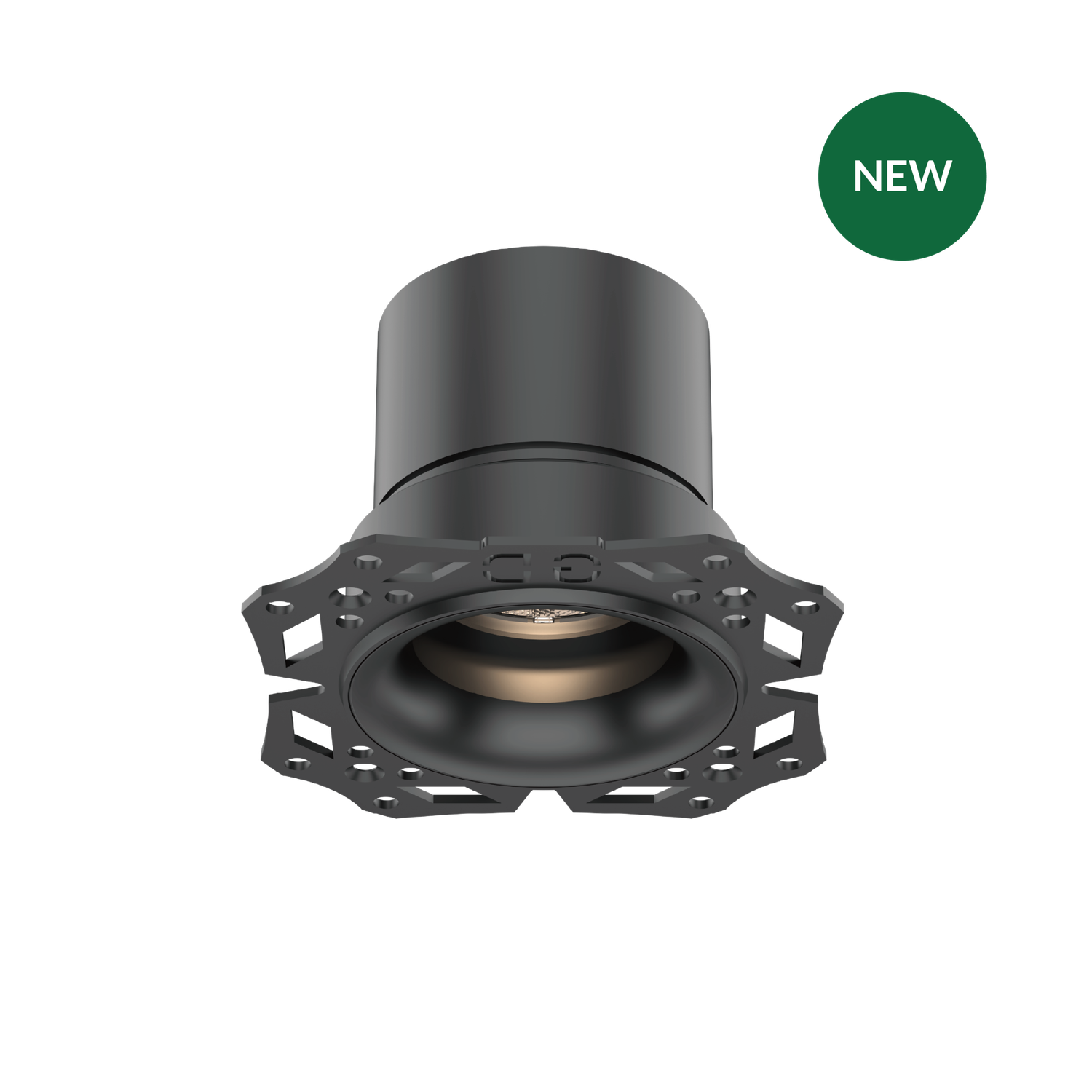

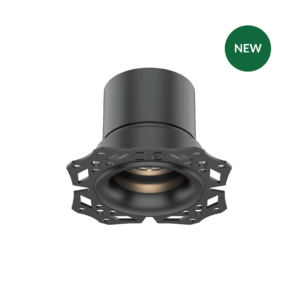

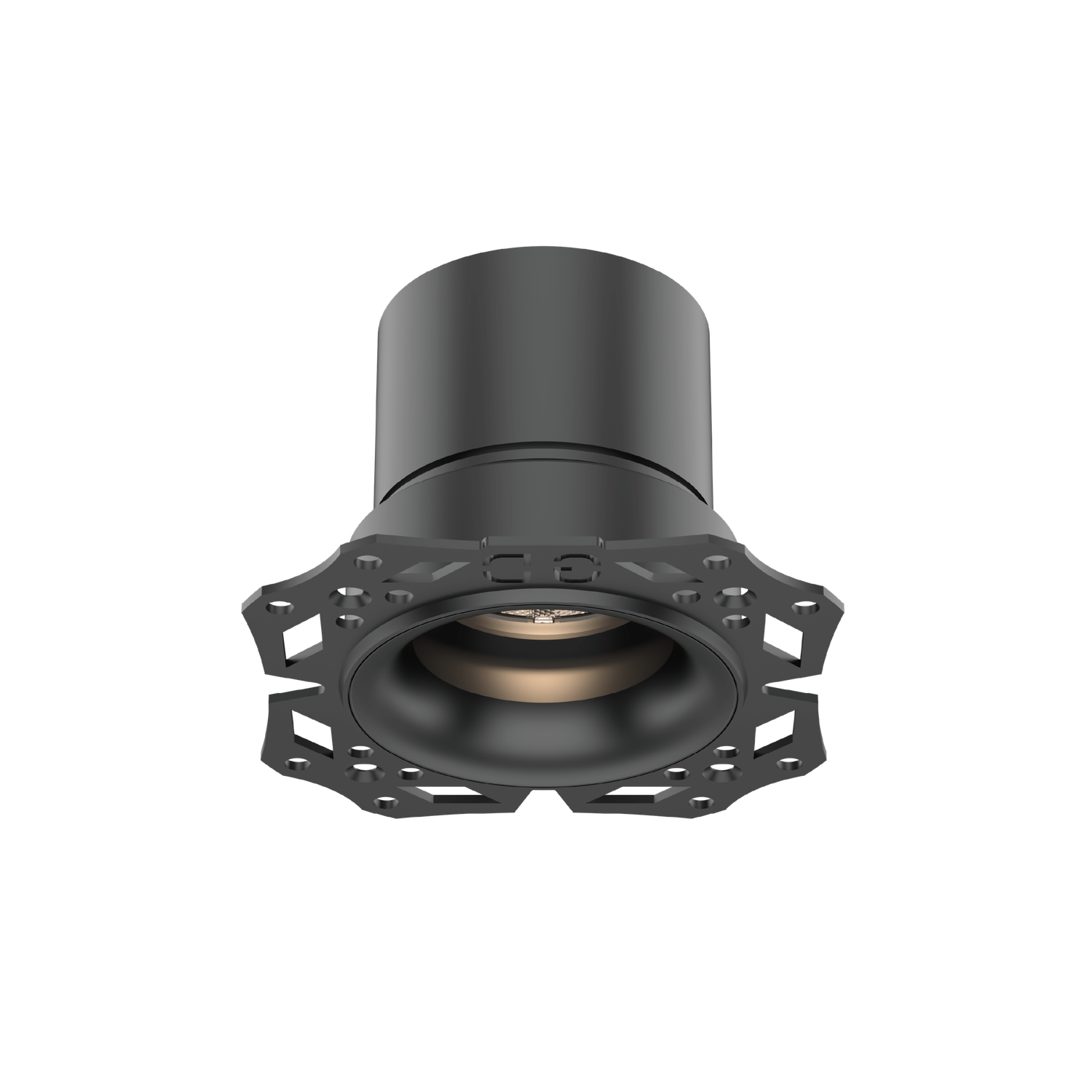

ACME FIXED - 78 Curve Trimless Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

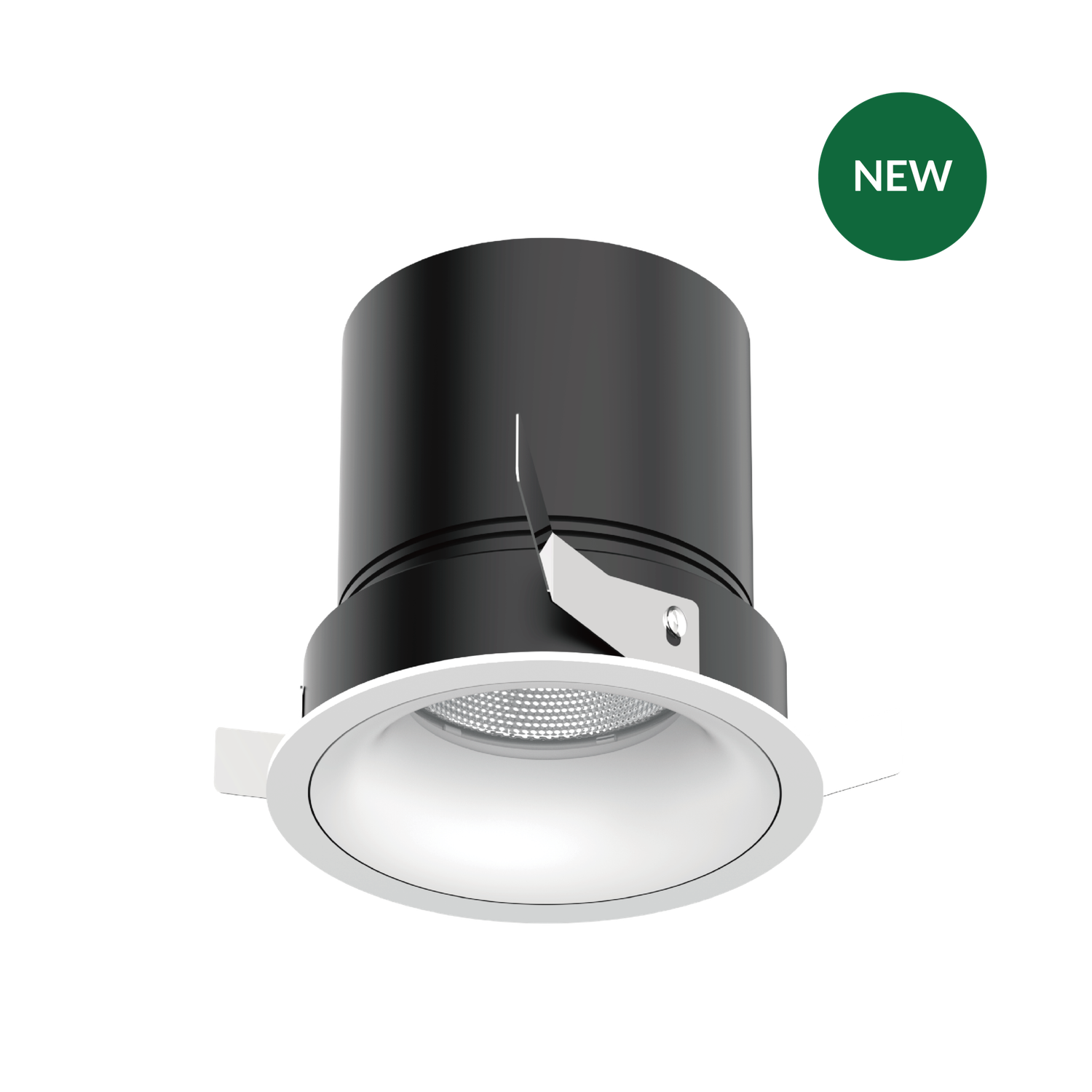

ACME FIXED - 110 Curve Mini-Trim Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :145
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 300mA 12W/ DC 36V 350mA 15W / DC 36V 500mA 20W / DC 36V 600mA 25W / DC 36V 700mA 30W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

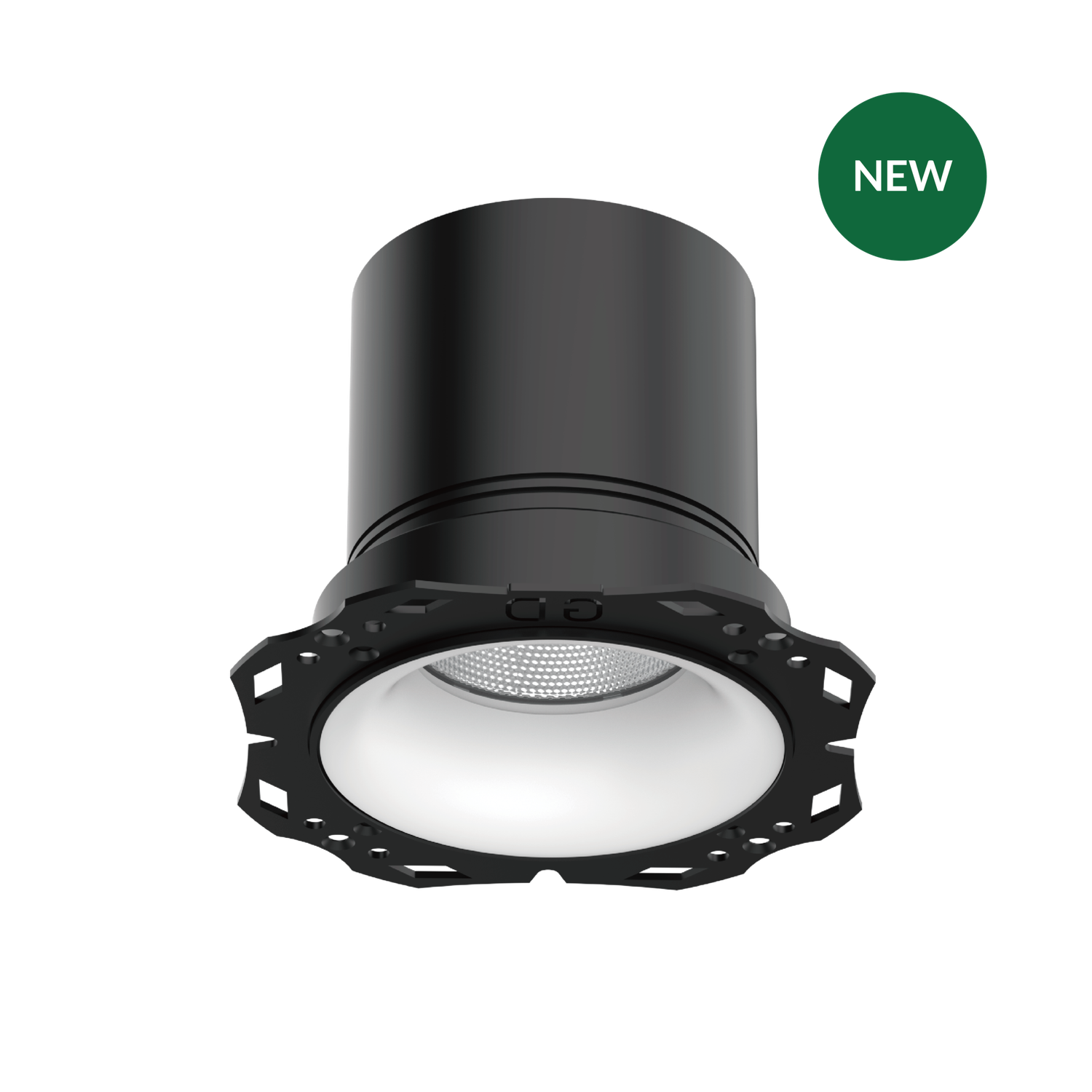

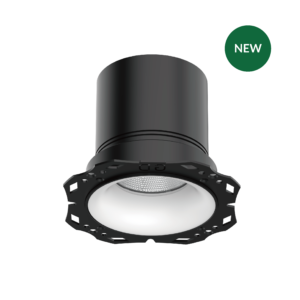

ACME FIXED - 110 Curve Trimless Fixed

Copy link QUOTE Share

IP Rating :IP65 front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K/3000K/3500K/4000K/2700K-6000K
Typical Source Efficacy (Im/W) :145
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 300mA 12W/ DC 36V 350mA 15W / DC 36V 500mA 20W / DC 36V 600mA 25W / DC 36V 700mA 30W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
