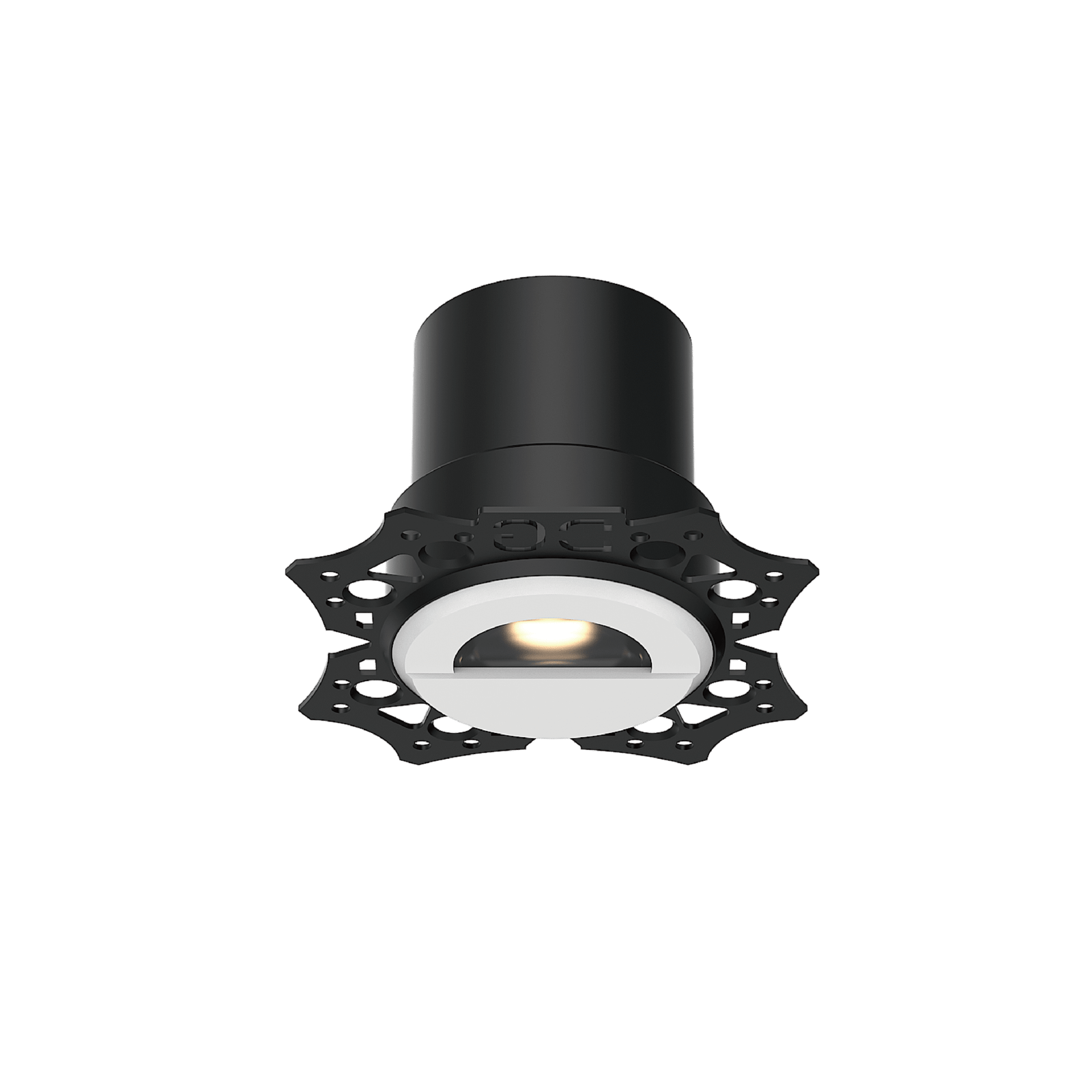

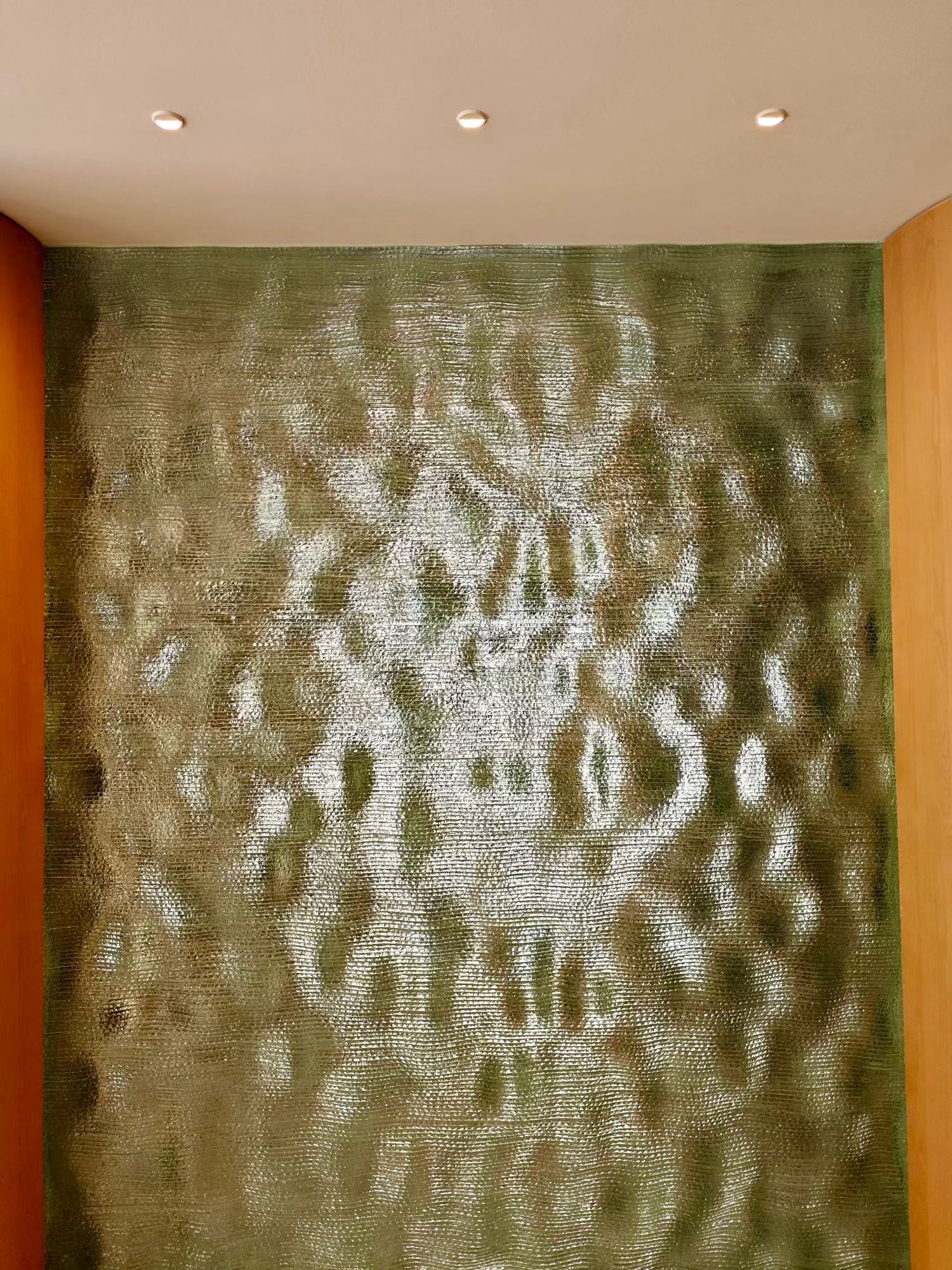

ACME Wall Washer downlights are designed to bring walls to life with smooth, even vertical illumination. Their carefully controlled distribution highlights texture, colour, and form while keeping glare to a minimum and the ceiling line clean. Ideal for premium residential, hospitality, retail, and gallery projects, the range provides a coherent, architectural tool for shaping perception of space, guiding circulation, and creating depth and drama through light.
| IP Rating : | IP65 front |
| Optics : | Asymmetrical Wallwash |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 350mA 15W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| IP Rating : | IP65 front |
| Optics : | Asymmetrical Wallwash |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 350mA 15W |
| Ambient temp : | -20 ℃ to 25 ℃ |
