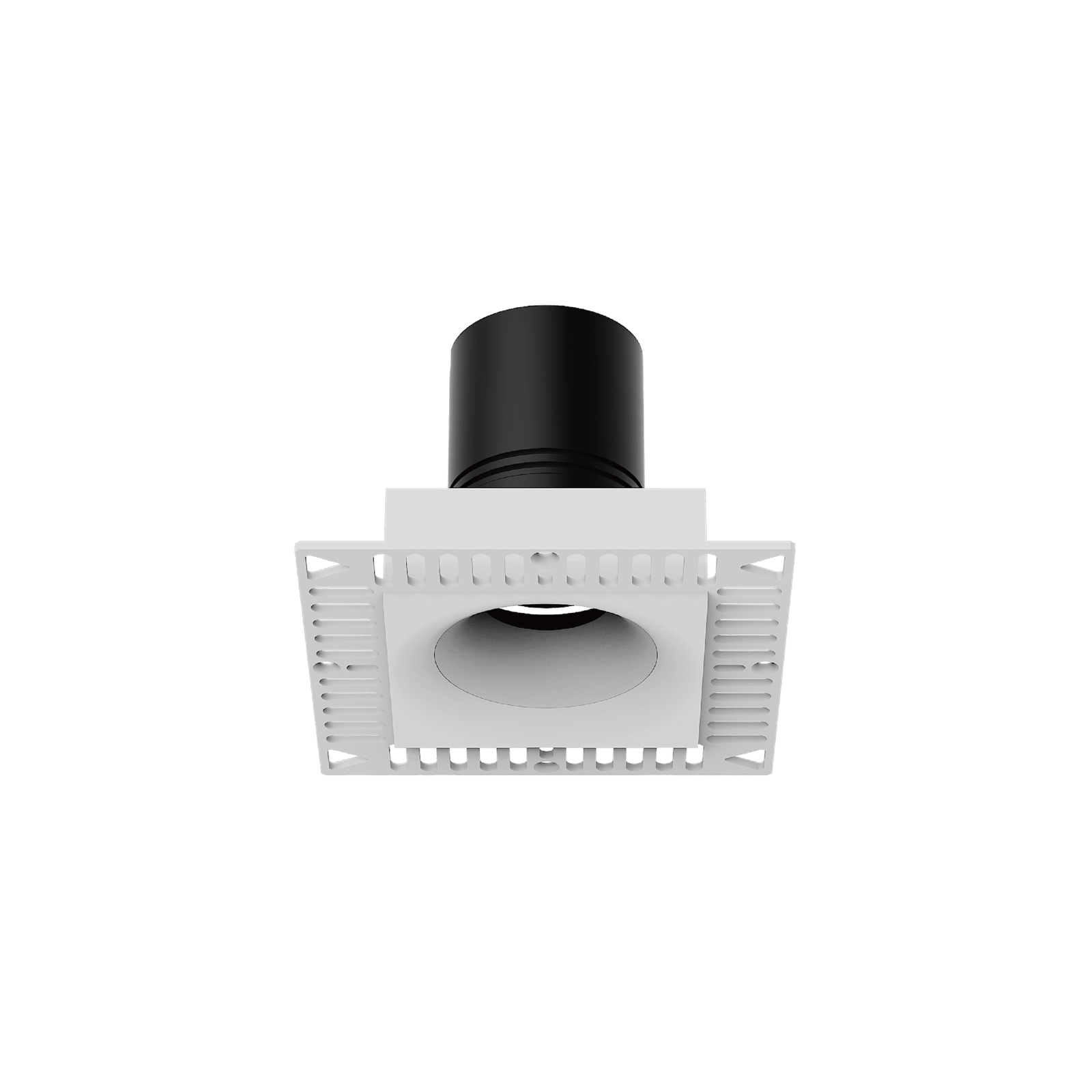

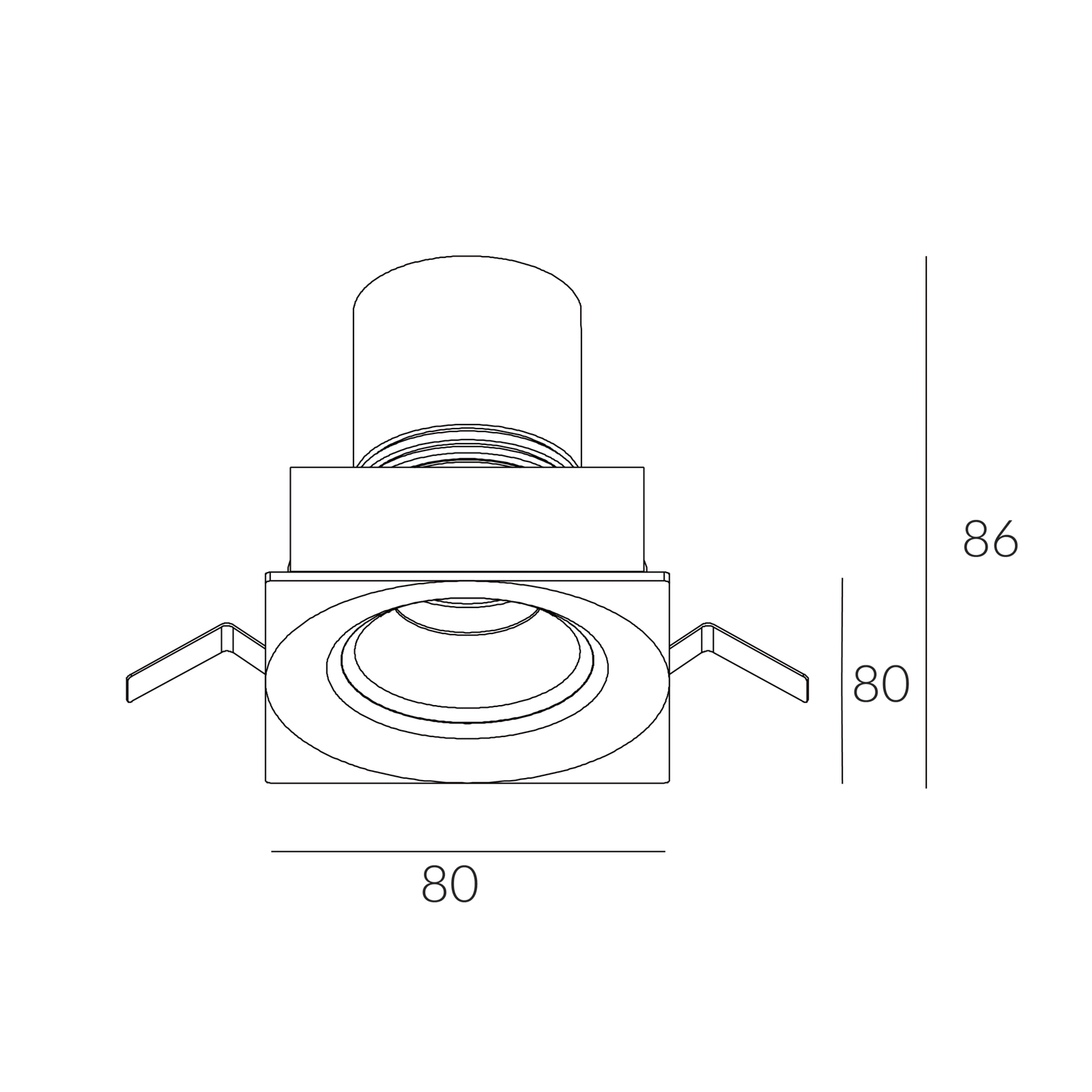

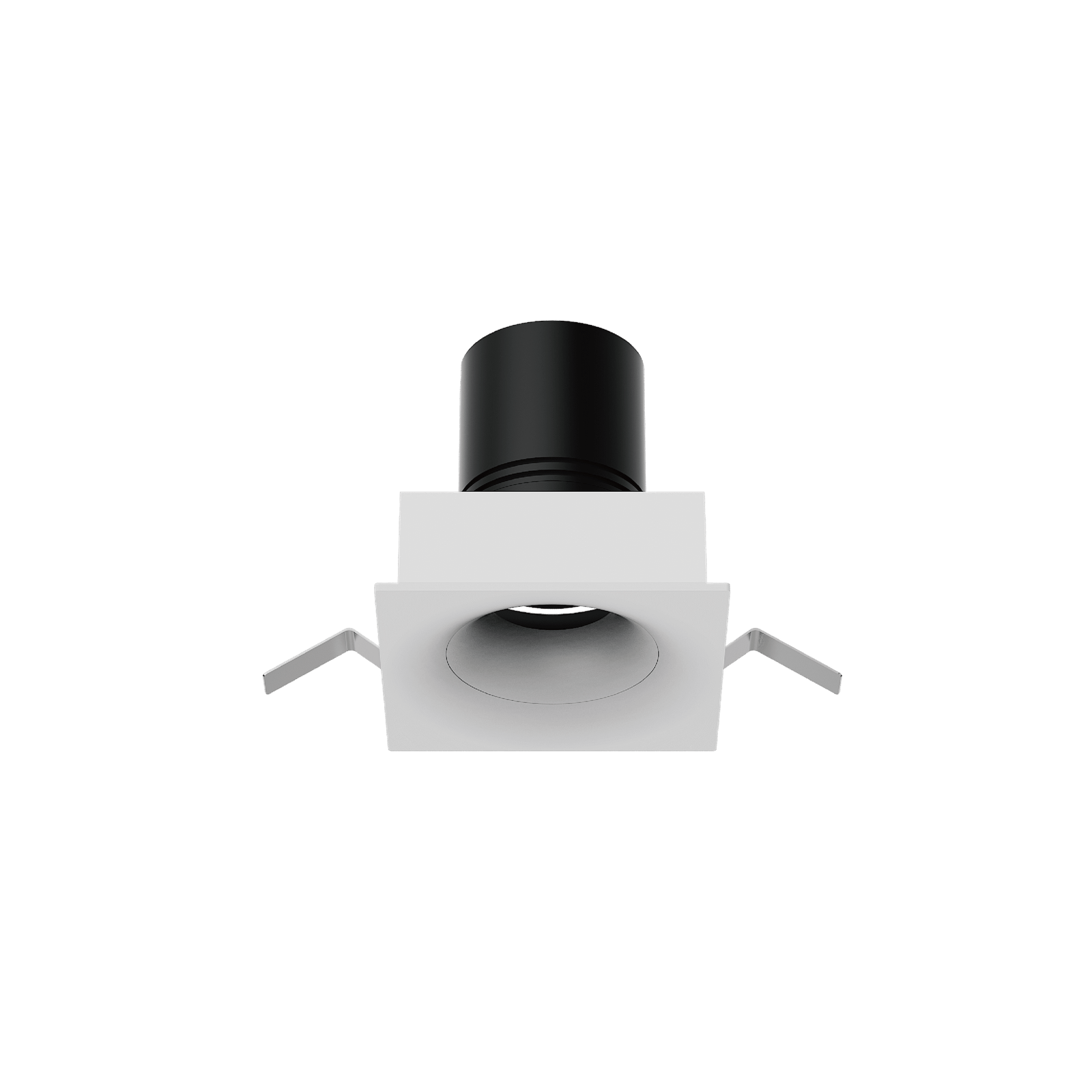

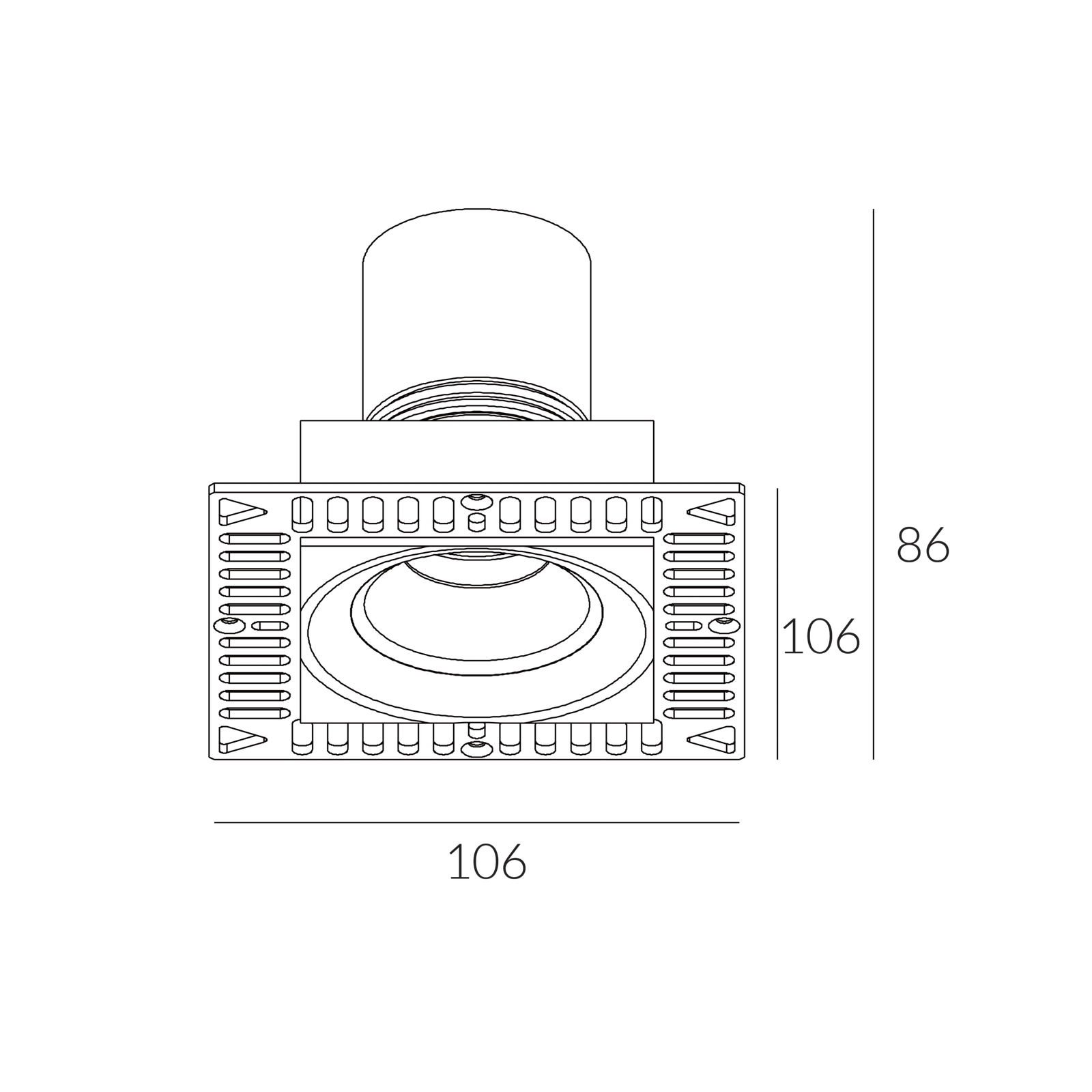

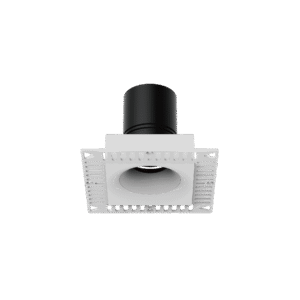

Skip to content ACME Square downlights, available in both mini‑trim and trimless versions, offer a crisp, geometric alternative to round apertures while maintaining excellent visual comfort. The compact square form sits neatly within the ceiling grid, with the mini‑trim version providing a refined frame and the trimless option virtually disappearing into the architecture. Ideal for premium residential, hospitality, and retail interiors, the range delivers precise, controlled illumination with a consistent aesthetic, giving designers the flexibility to mix installation details while keeping a unified, contemporary look across the project.
| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W x 2 DC 36V 250mA 10W x 2 DC 36V 300mA 12W x 2 |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W x 2 DC 36V 250mA 10W x 2 DC 36V 300mA 12W x 2 |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
