EVOLINE

by DuraGreen

The charm of this line resides in its delicate elegance and unobtrusive nature. The refined simplicity of the fixtures’ design allows them to meld seamlessly in various settings.

EVOLINE - 1 Spot Fixed Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 3V 650mA 3W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS


EVOLINE - 2 Spots Fixed Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 6V 500mA 5W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS

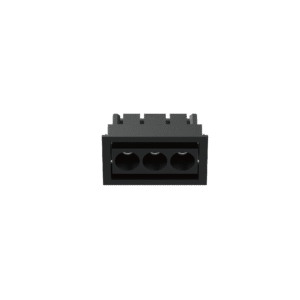

EVOLINE - 3 Spots Adjustable Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 9V 500mA 6W DC 9V 700mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS

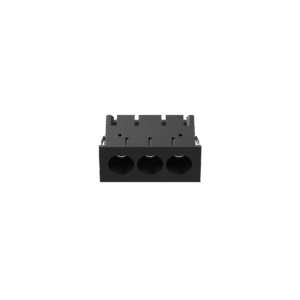

EVOLINE - 3 Spots Fixed Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 9V 500mA 6W DC 9V 700mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS

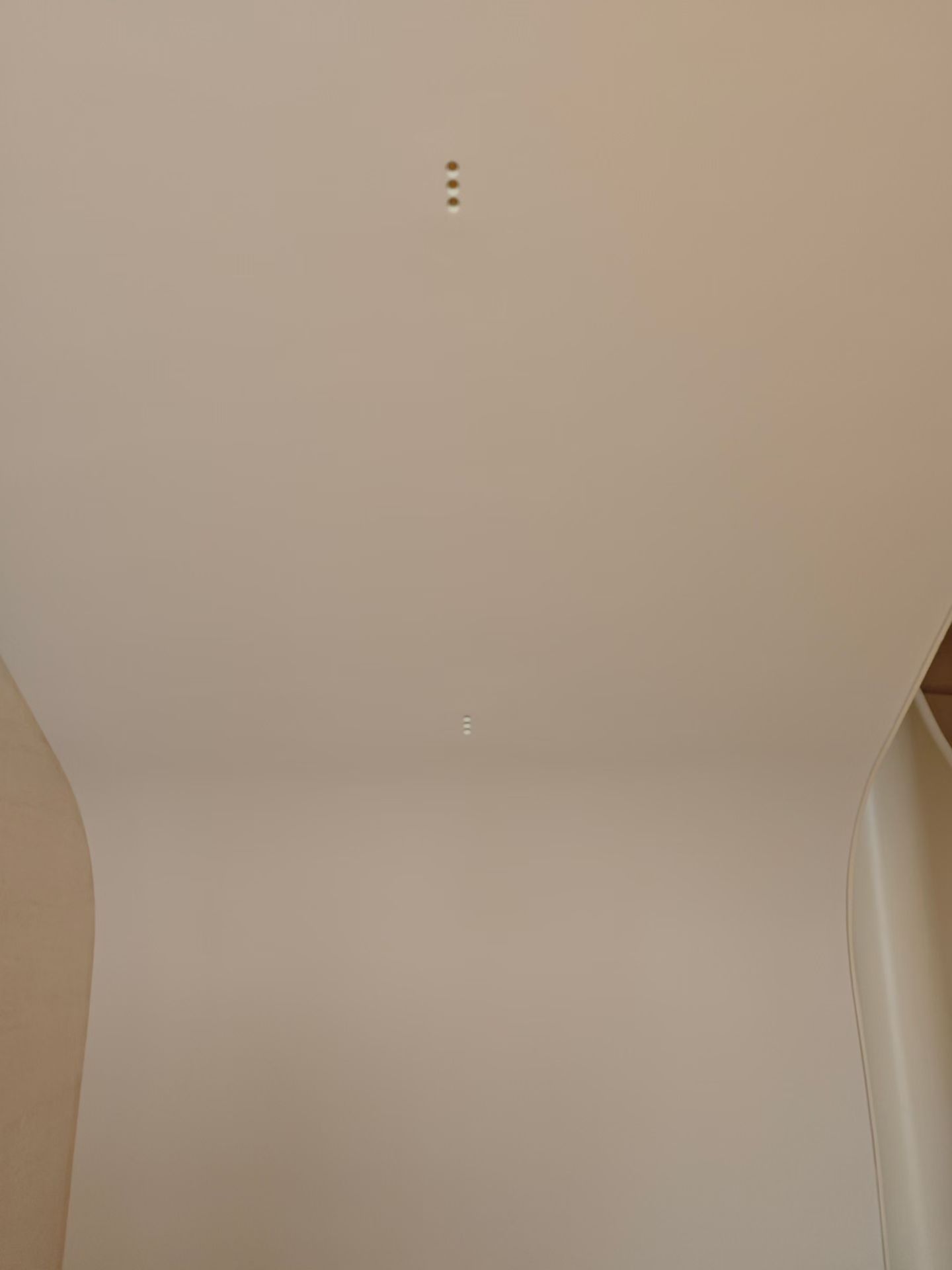

EVOLINE - 3 Spots Trimless Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 9V 500mA 6W DC 9V 700mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS


EVOLINE - 6 Spots Fixed Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 18V 400mA 8W DC 18V 500mA 10W DC 18V 600mA 12W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS

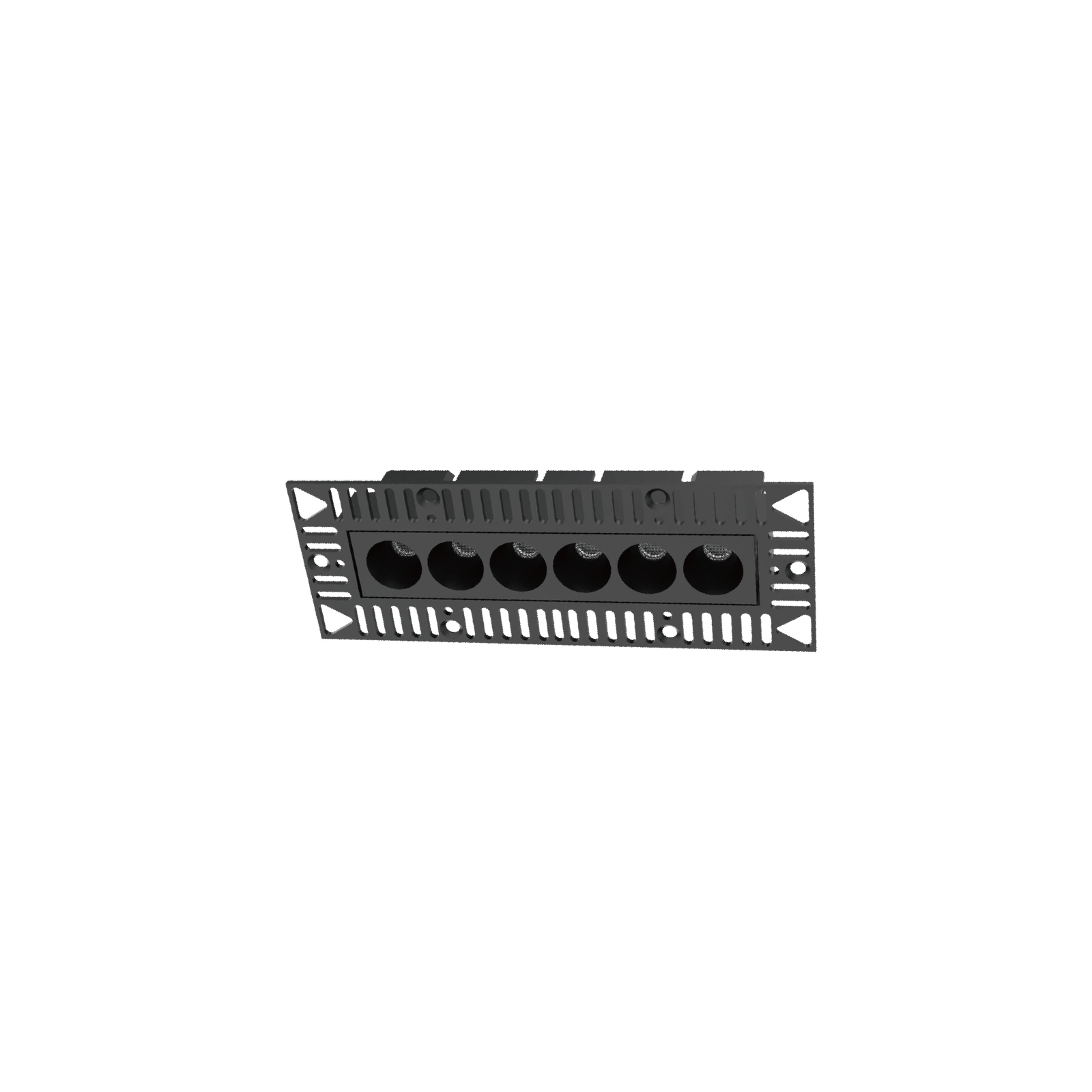

EVOLINE - 6 Spots Trimless Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 18V 400mA 8W DC 18V 500mA 10W DC 18V 600mA 12W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS


EVOLINE - 9 Spots Fixed Line

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 27V 500mA 15W DC 27V 700mA 20W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS


EVOLINE - 9 Spots Fixed Square

PRODUCT DESCRIPTION Copy link


IP Rating :IP20 and IP44 options
Optics :50°
UGR :<17
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 27V 300mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

DIMENSIONS


Why This Light

Our team connects creativity with engineering.

We support the seen and the often invisible infrastructure of lighting technology, bringing imagination to light in projects across Australia.
