Downlights

ACME CURVE

✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 57 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 57 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 68 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 68 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

ACME STRAIGHT

✖

SPEC

Certifications

SIZE

ACME STRAIGHT ADJUSTABLE - 57 Straight Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME STRAIGHT ADJUSTABLE - 57 Straight Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME STRAIGHT ADJUSTABLE - 68 Straight Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME STRAIGHT ADJUSTABLE - 68 Straight Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

ACME SEMI

✖

SPEC

Certifications

SIZE

ACME SEMI ADJUSTABLE - 57 Semi Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME SEMI ADJUSTABLE - 57 Semi Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME SEMI ADJUSTABLE - 68 Semi Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME SEMI ADJUSTABLE - 68 Semi Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

ACME ALABASTER

✖

SPEC

SIZE

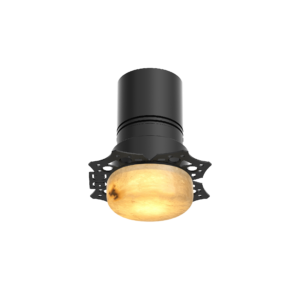

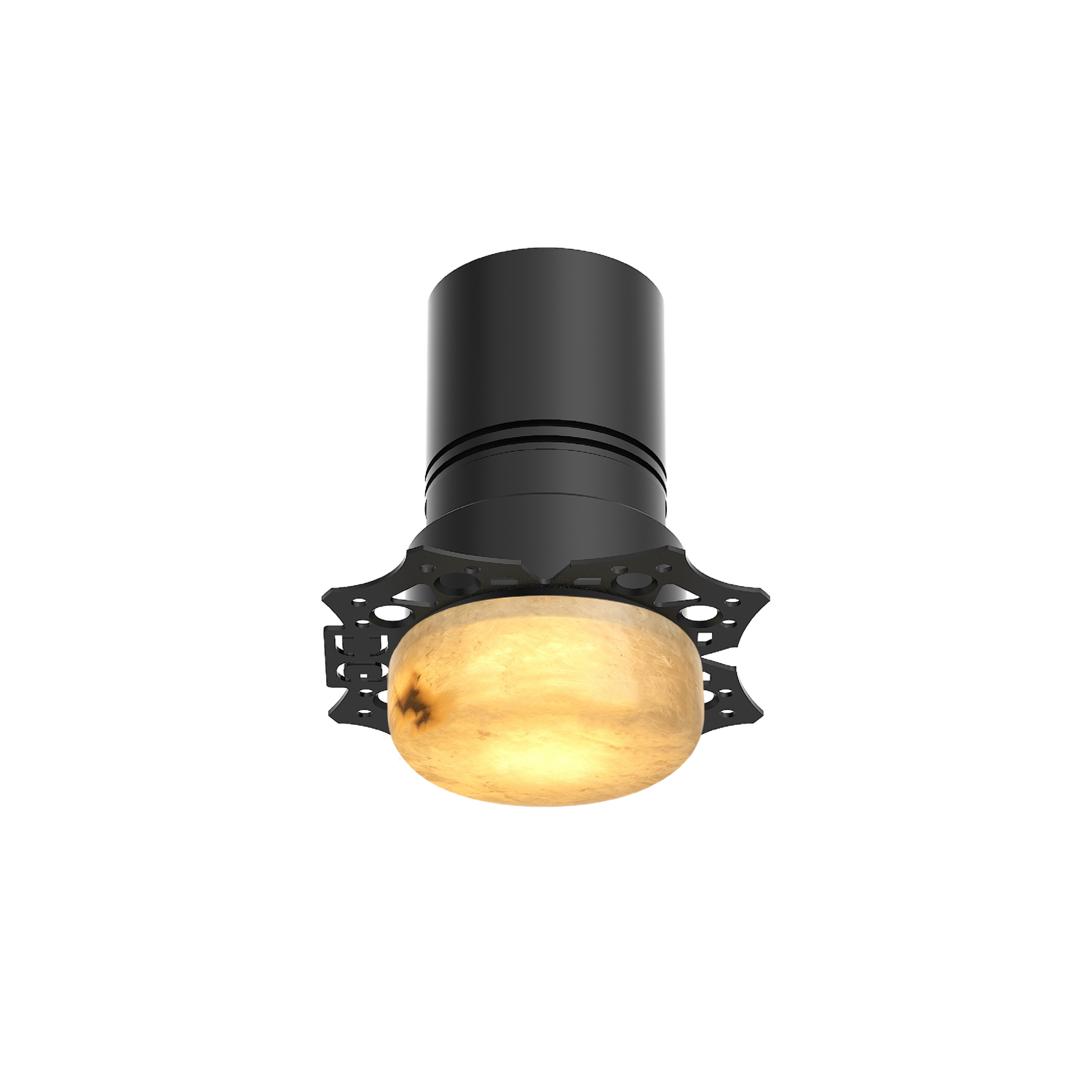

ACME ALABASTER - 57 ACME Trimless Fixed Alabaster Luna

Copy link QUOTE Share

IP Rating :IP65 front
Optics :120°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W/ DC 36V 200mA 8W /DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Material :Fine Aluminium 6063A + Alabaster Stone

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

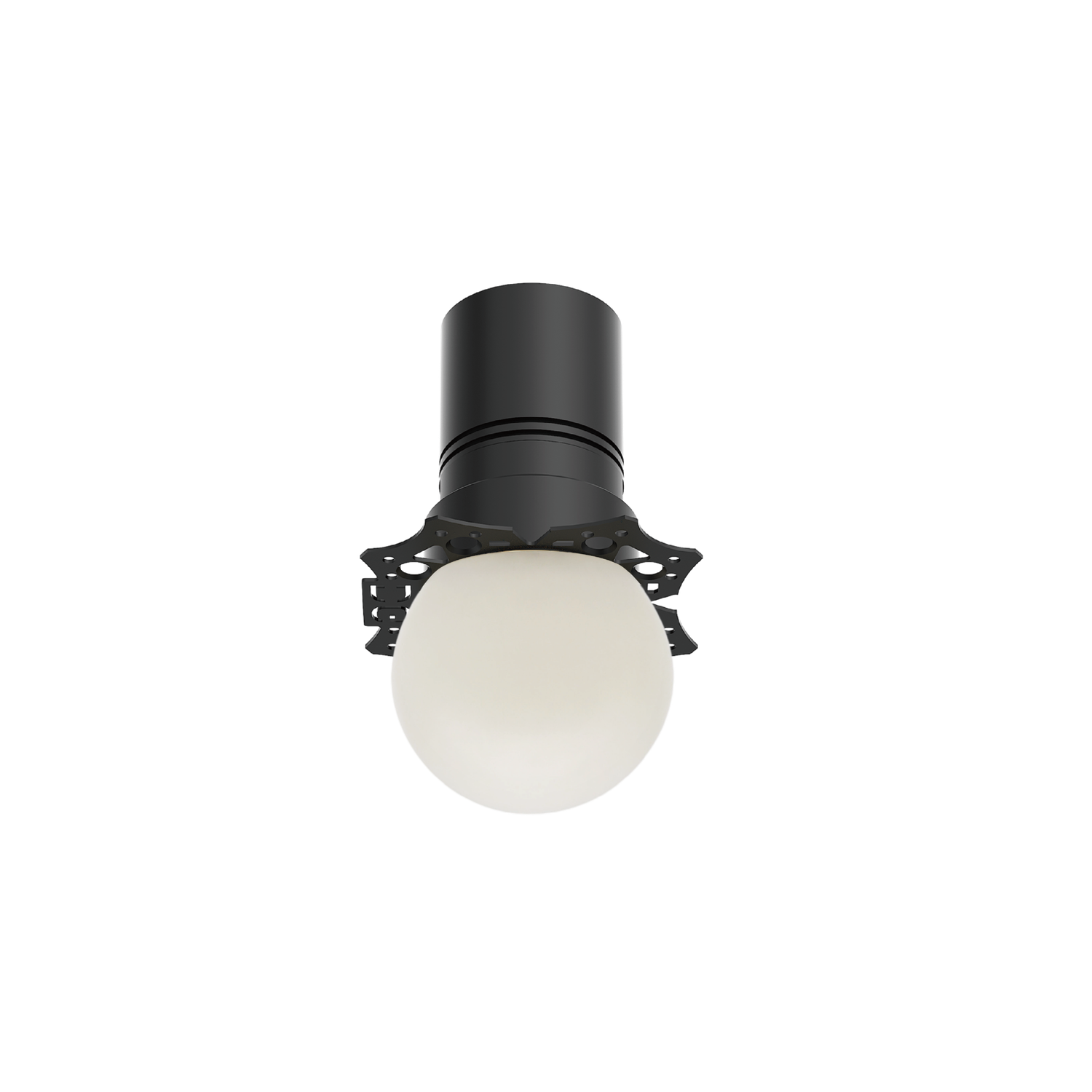

ACME ALABASTER - 57 ACME Trimless Fixed Alabaster Globe

Copy link QUOTE Share

IP Rating :IP65 front
Optics :120°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W /DC 36V 200mA 8W/ DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Material :Fine Aluminium 6063A + Alabaster Stone

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

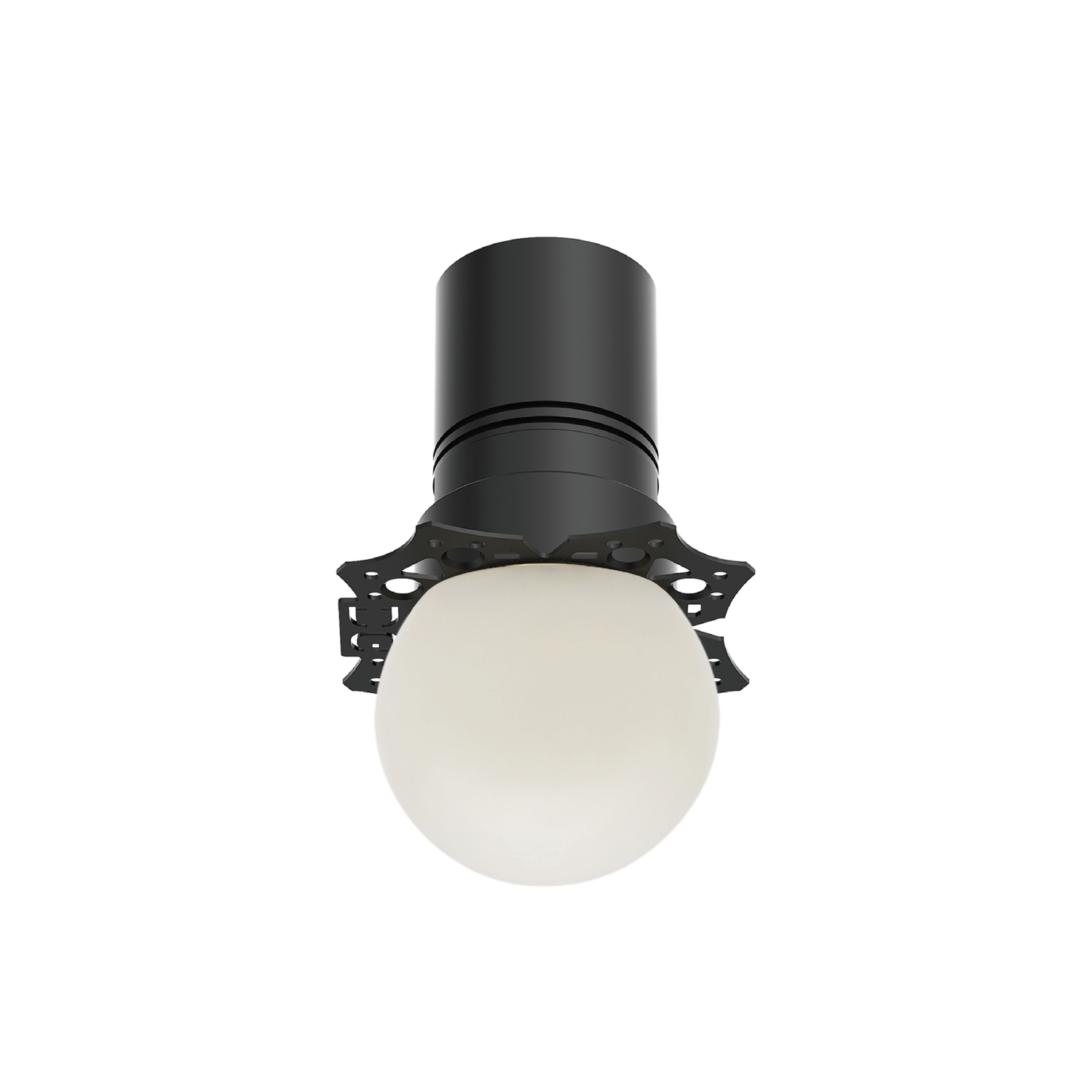

ACME ALABASTER - 68 ACME Trimless Fixed Alabaster Globe

Copy link QUOTE Share

IP Rating :IP65 front
Optics :120°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Material :Fine Aluminium 6063A + Alabaster Stone

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

ACME PINHOLE

✖

SPEC

SIZE

ACME PINHOLE - 57 Pinhole Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃ ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Pinhole Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Oval Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Oval Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME PINHOLE - 68 Pinhole Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME PINHOLE - 68 Pinhole Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W/ DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME PINHOLE - 68 Oval Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME PINHOLE - 68 Oval Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W/ DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

text

✖
Share
