Track Lights

48V Track Lights

✖

SPEC

SIZE

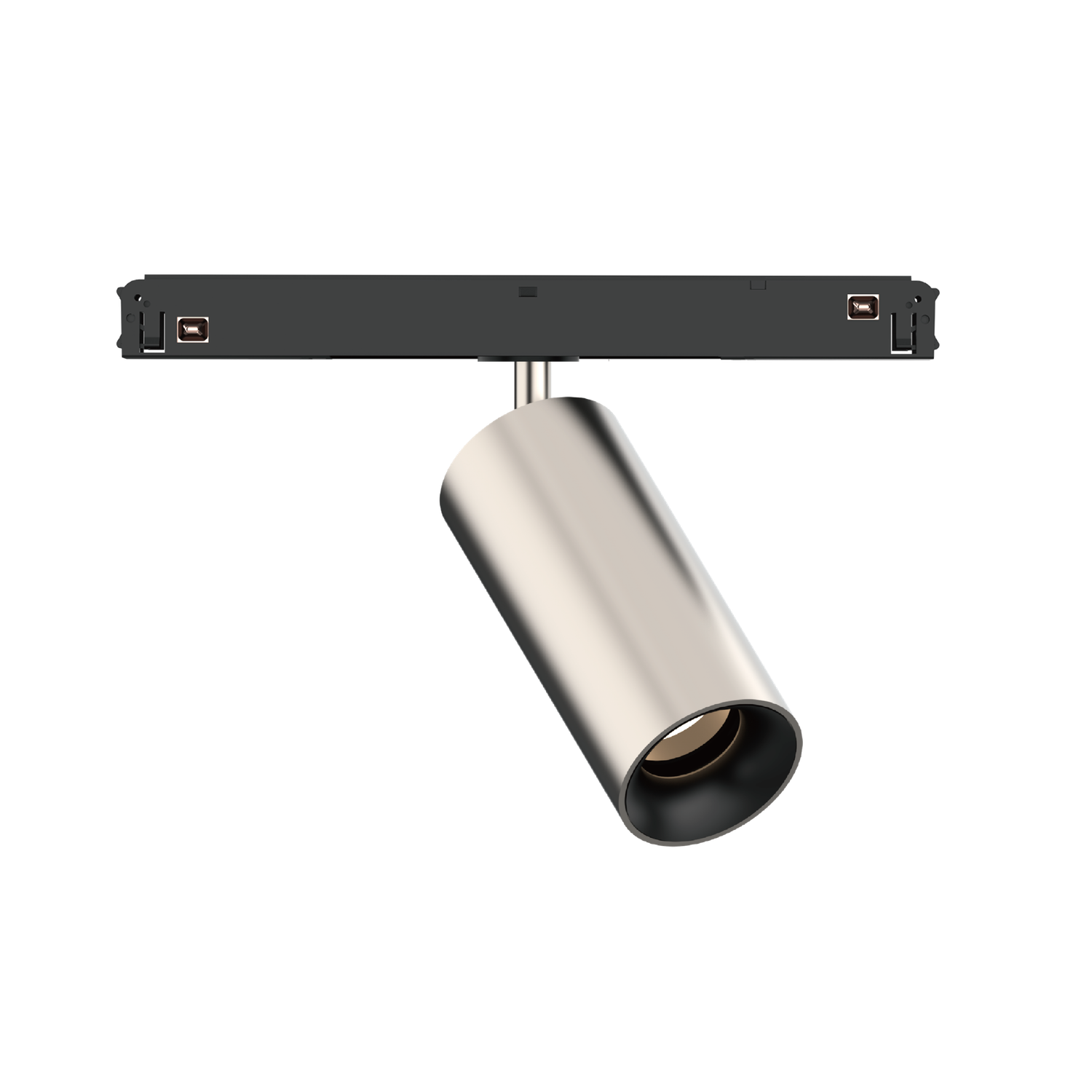

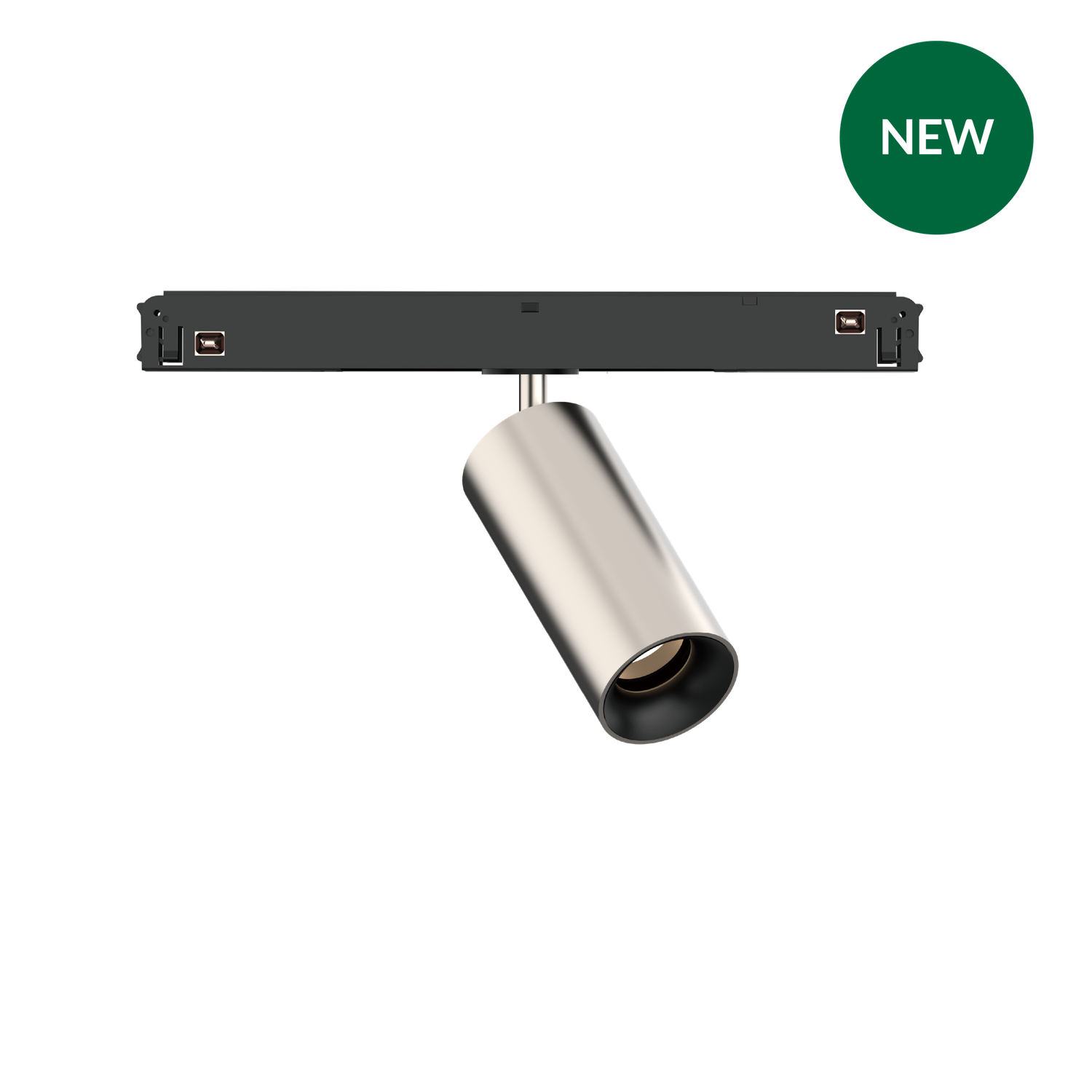

48V Track Lights - ACME 57 Track Light

Copy link QUOTE Share

IP Rating :IP20
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K/3000K/3500K/4000K/2700-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :48 VDC
Output* :DC 36V 150mA 6W /DC 36V 200mA 8W /DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

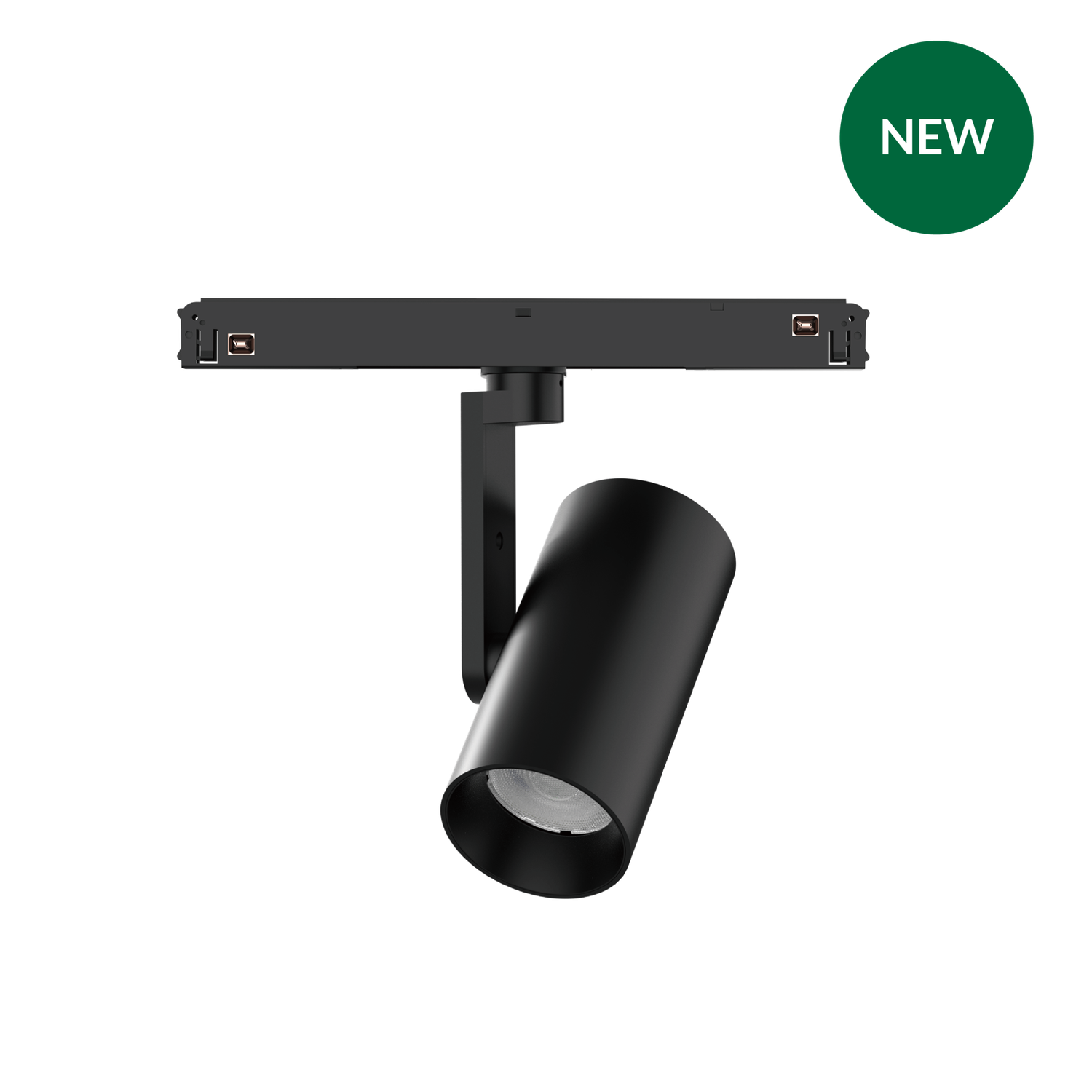

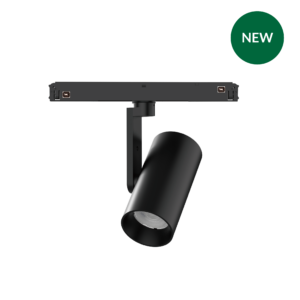

48V Track Lights - ACME 68 Track Light

Copy link QUOTE Share

IP Rating :IP20
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K/3000K/3500K/4000K/2700-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :48 VDC
Output* :DC 36V 350mA 15W /DC 36V 500mA 20W /DC 36V 600mA 25W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

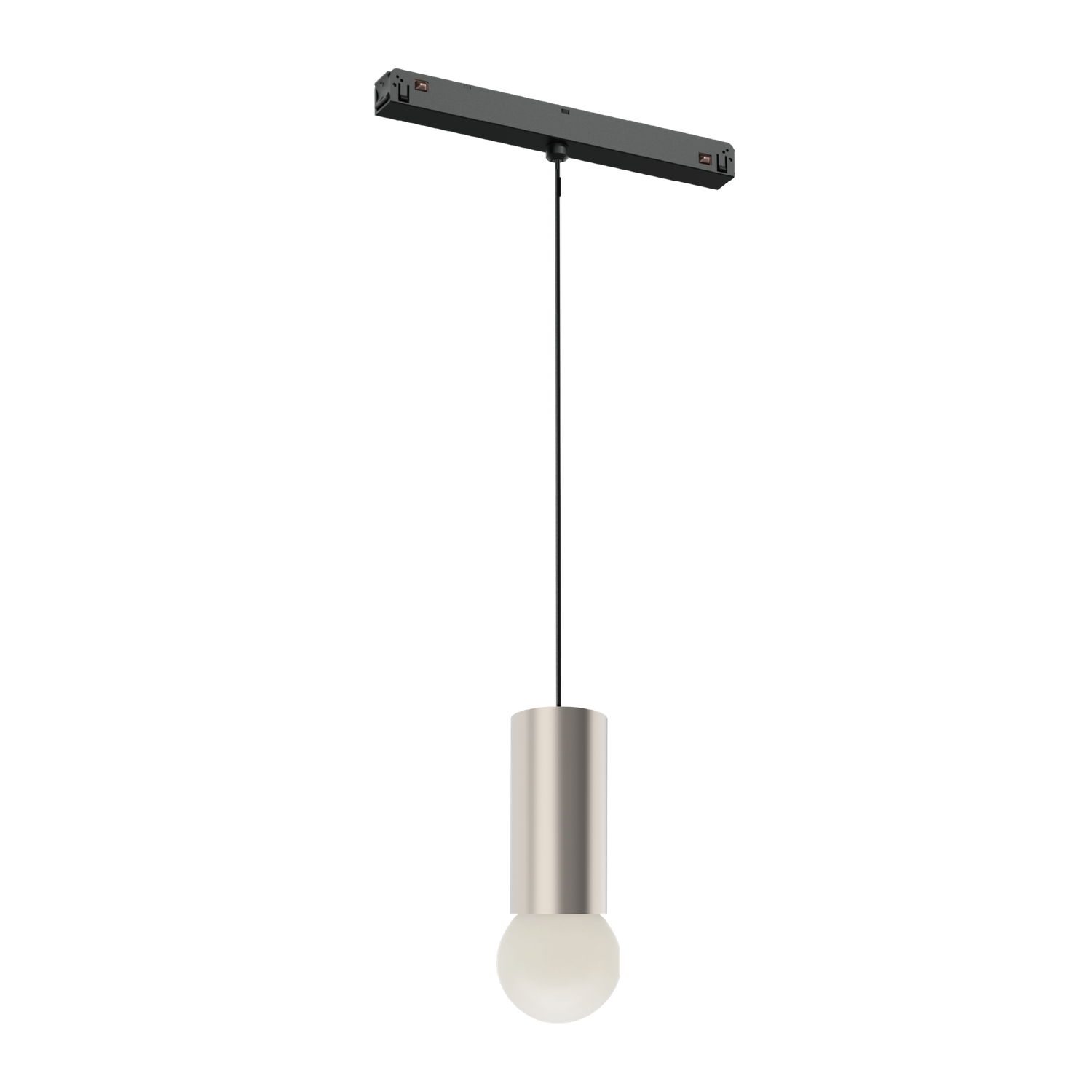

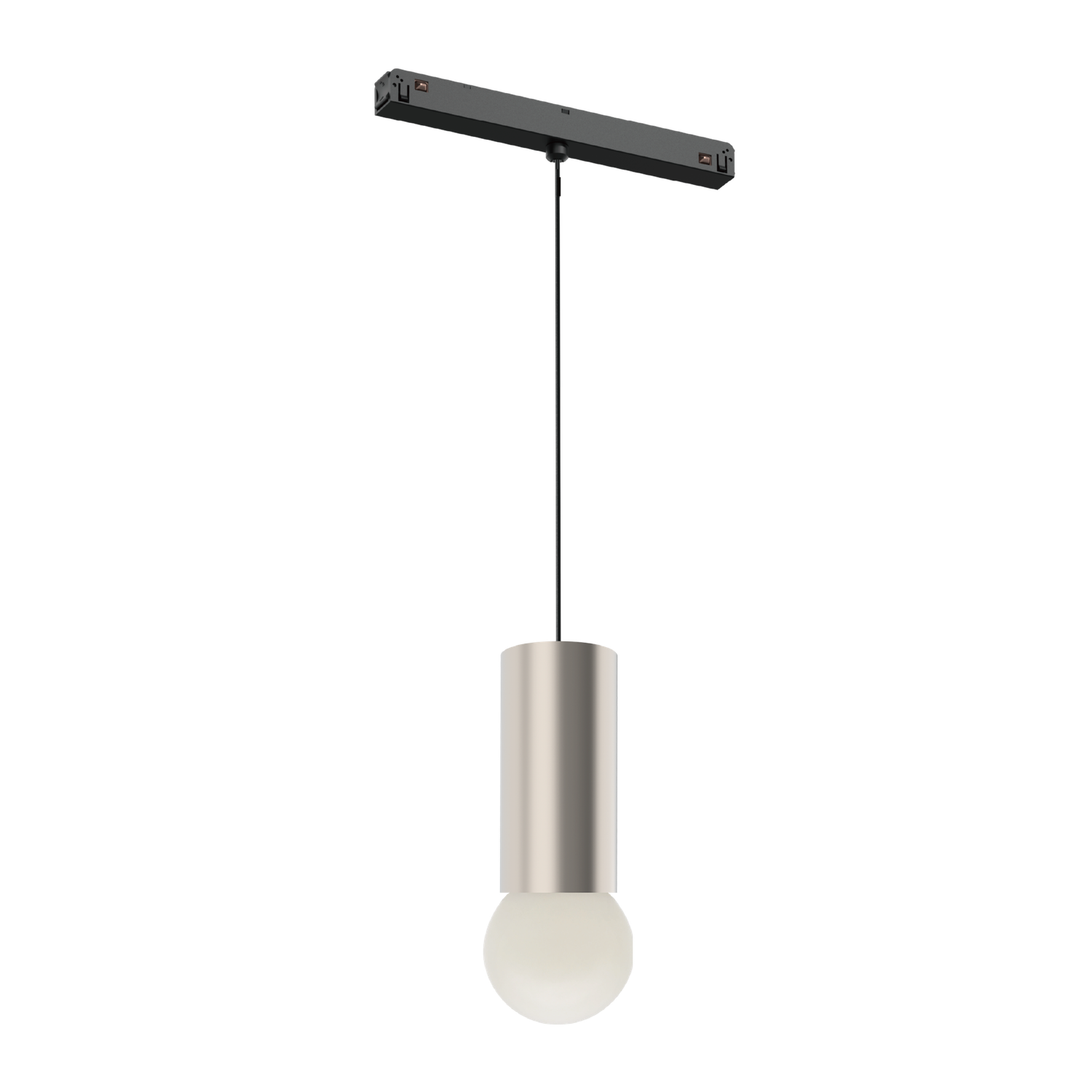

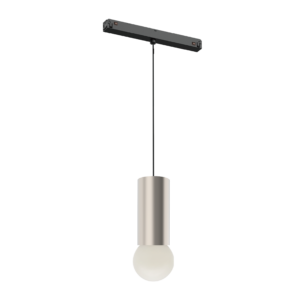

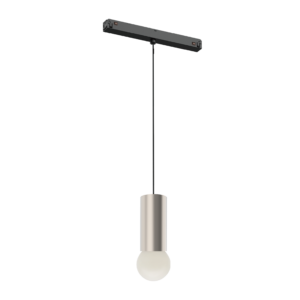

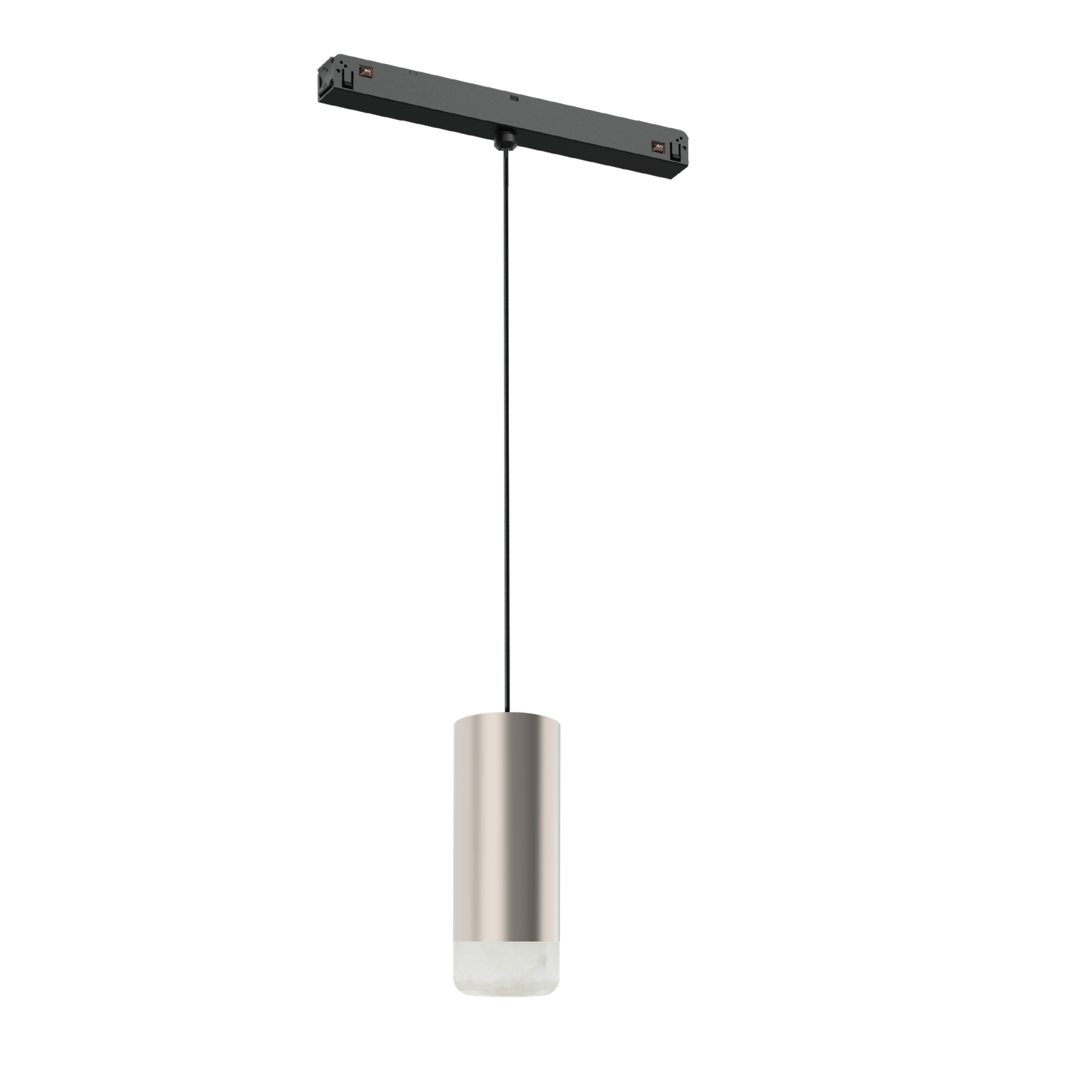

48V Track Lights - ACME 57 Engine Pendant

Copy link QUOTE Share

IP Rating :IP20
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :48 VDC
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optional accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

48V Track Lights - 57 Engine Alabaster Luna Pendant

Copy link QUOTE Share

IP Rating :IP20
Optics :120°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :110
Control :On/off, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :48 VDC
Output* :DC 36V 150mA 6W /DC 36V 200mA 8W /DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

48V Track Lights - 57 Engine Alabaster Globe Pendant

Copy link QUOTE Share

IP Rating :IP20
Optics :120°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :110
Control :On/off, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :48 VDC
Output* :DC 36V 150mA 6W/ DC 36V 200mA 8W /DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us

220V-240V Track Lights

✖

SPEC

SIZE

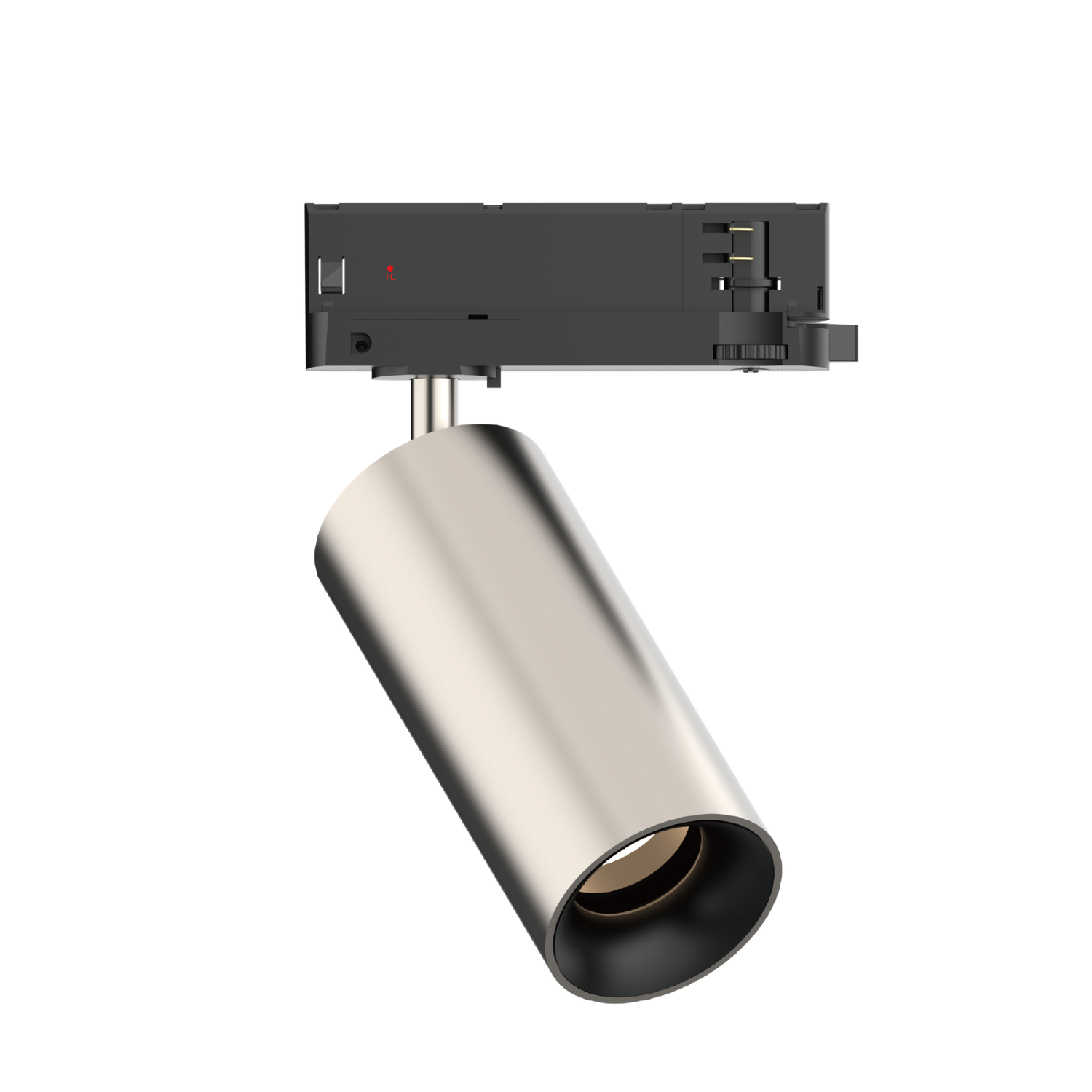

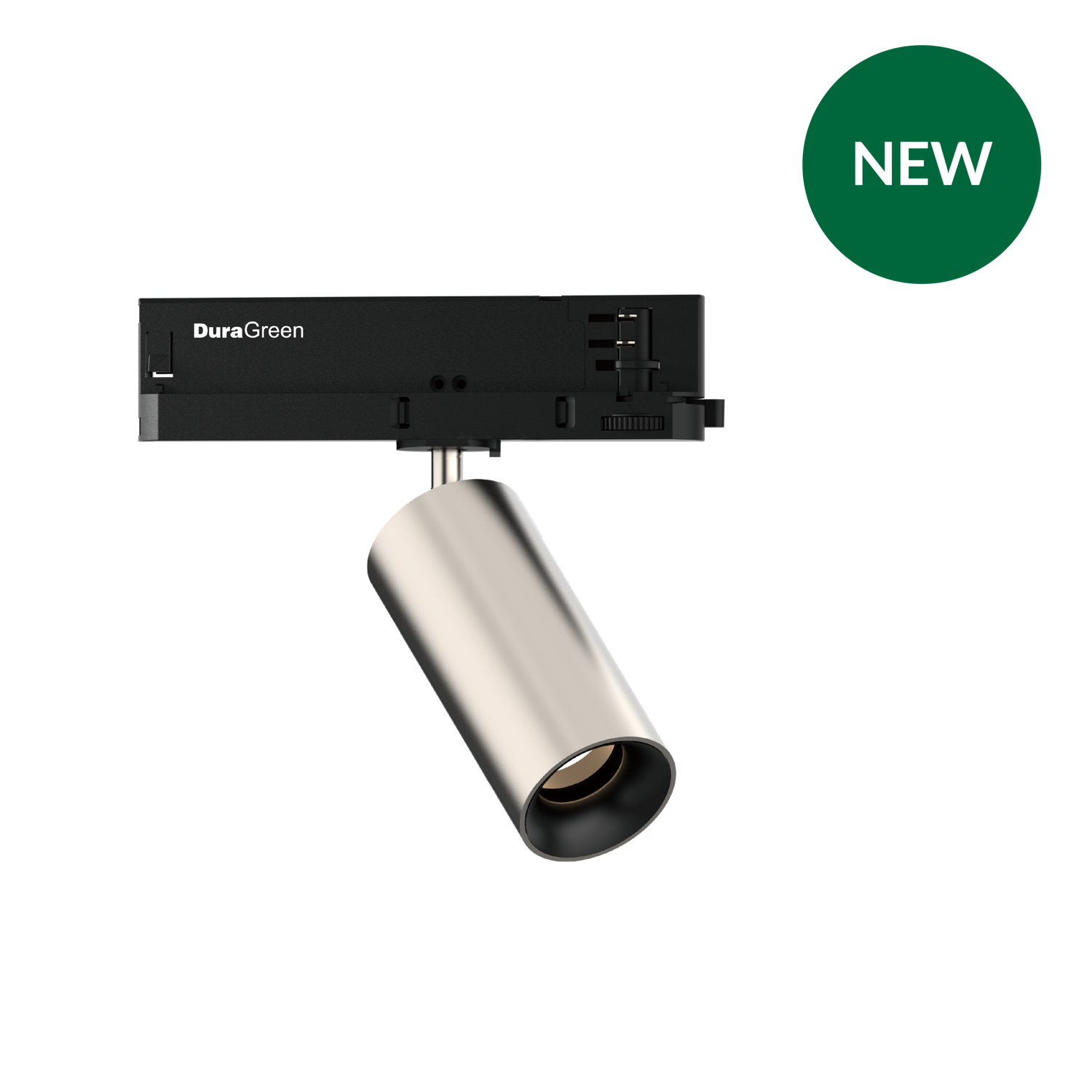

220-240V Track Lights - ACME 57 Track Light

Copy link QUOTE Share

IP Rating :IP20
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W /DC 36V 200mA 8W/ DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

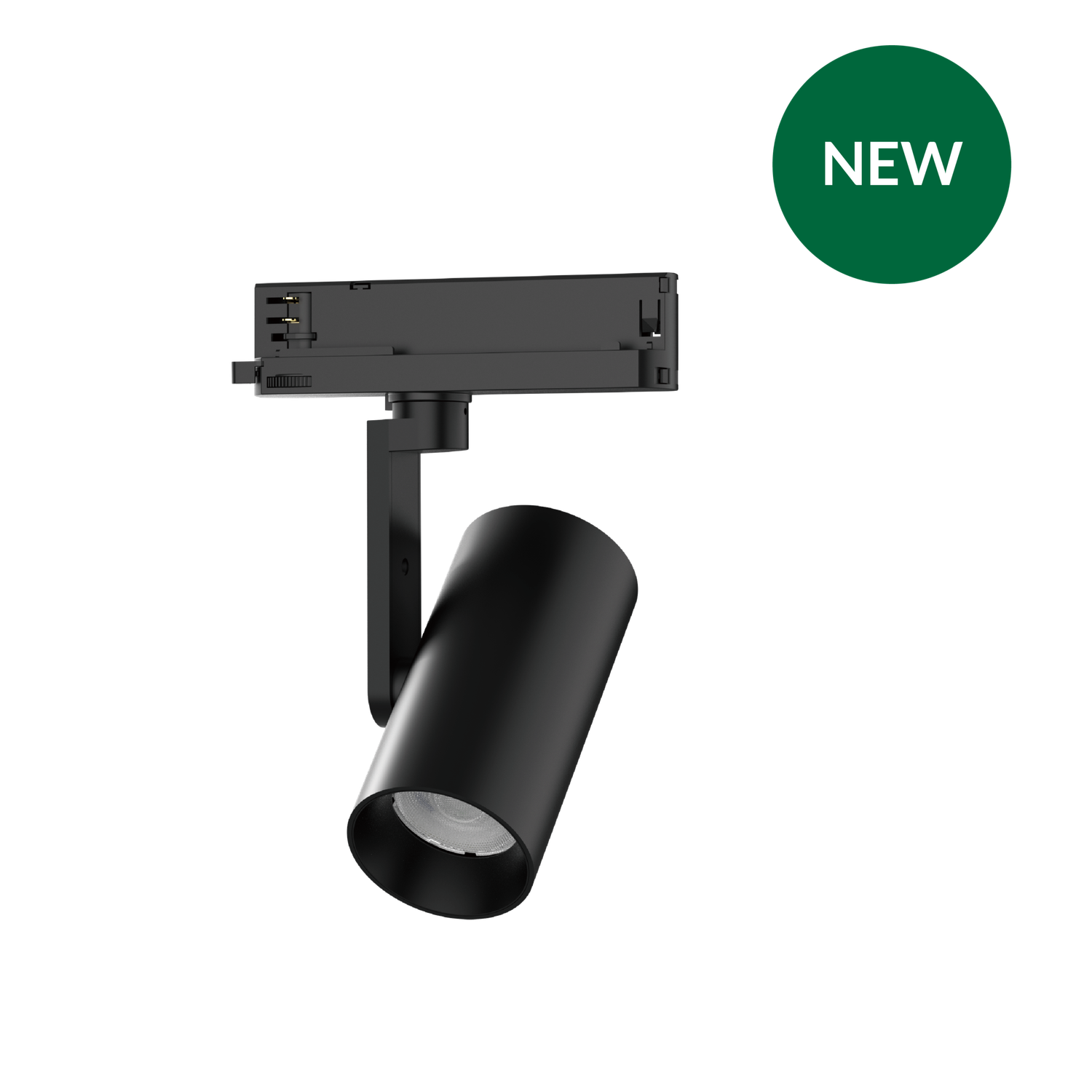

220-240V Track Lights - ACME 68 Track Light

Copy link QUOTE Share

IP Rating :IP20
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W /DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
