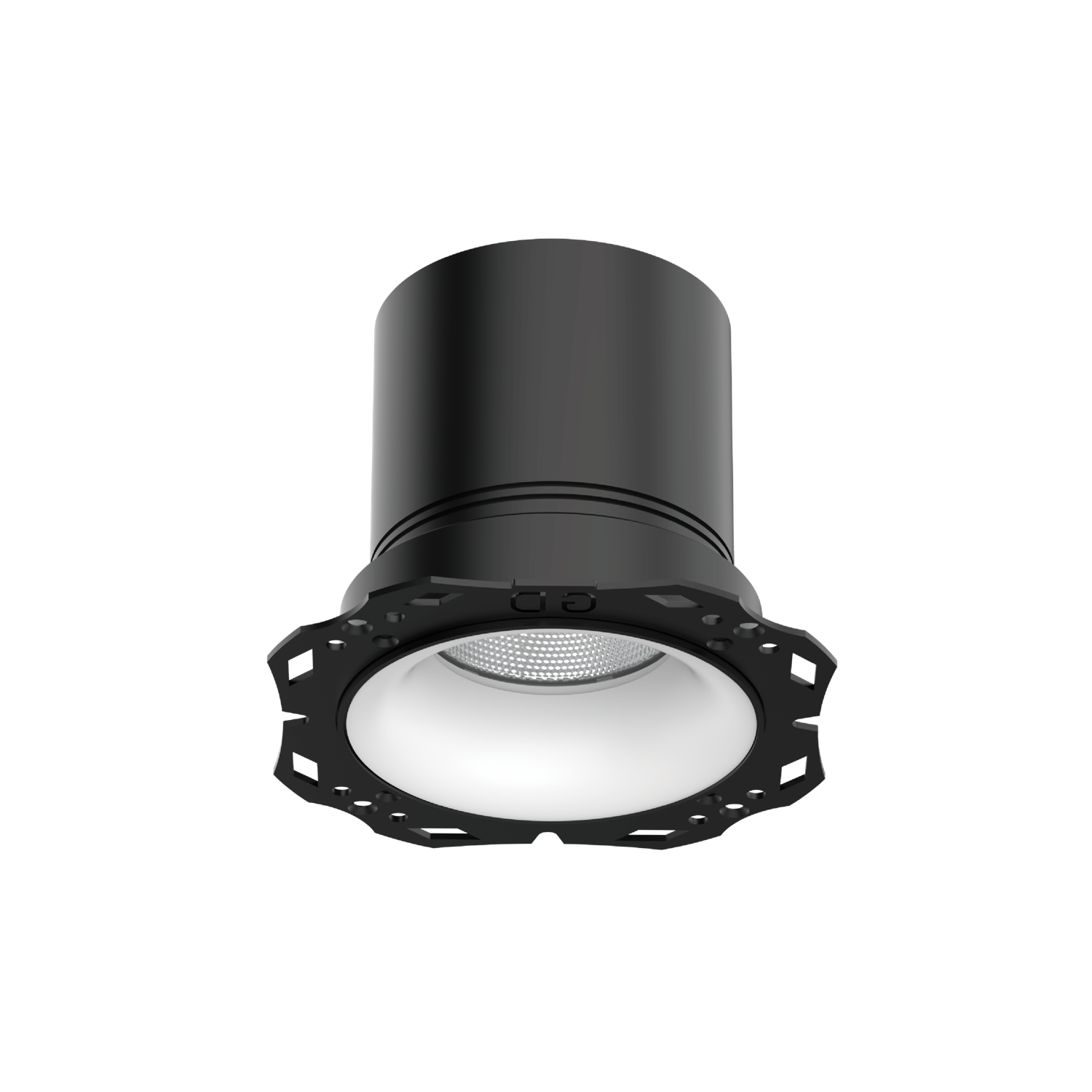

We’re expanding the successful ACME downlight family with System 110—a 110mm cutout platform built for high-output performance and maximum specification flexibility. Delivering up to 30W per engine, System 110 features a dual-optics system: choose soft-light lenses for refined visual comfort, or high-efficiency reflectors when you need maximum output. With plug-and-play modularity and beam angles ranging from an ultra-narrow 5° to an ultra-wide 80°, it adapts seamlessly from precision accent lighting to wide, even general illumination—while remaining easy to tailor to lighting designer preferences.

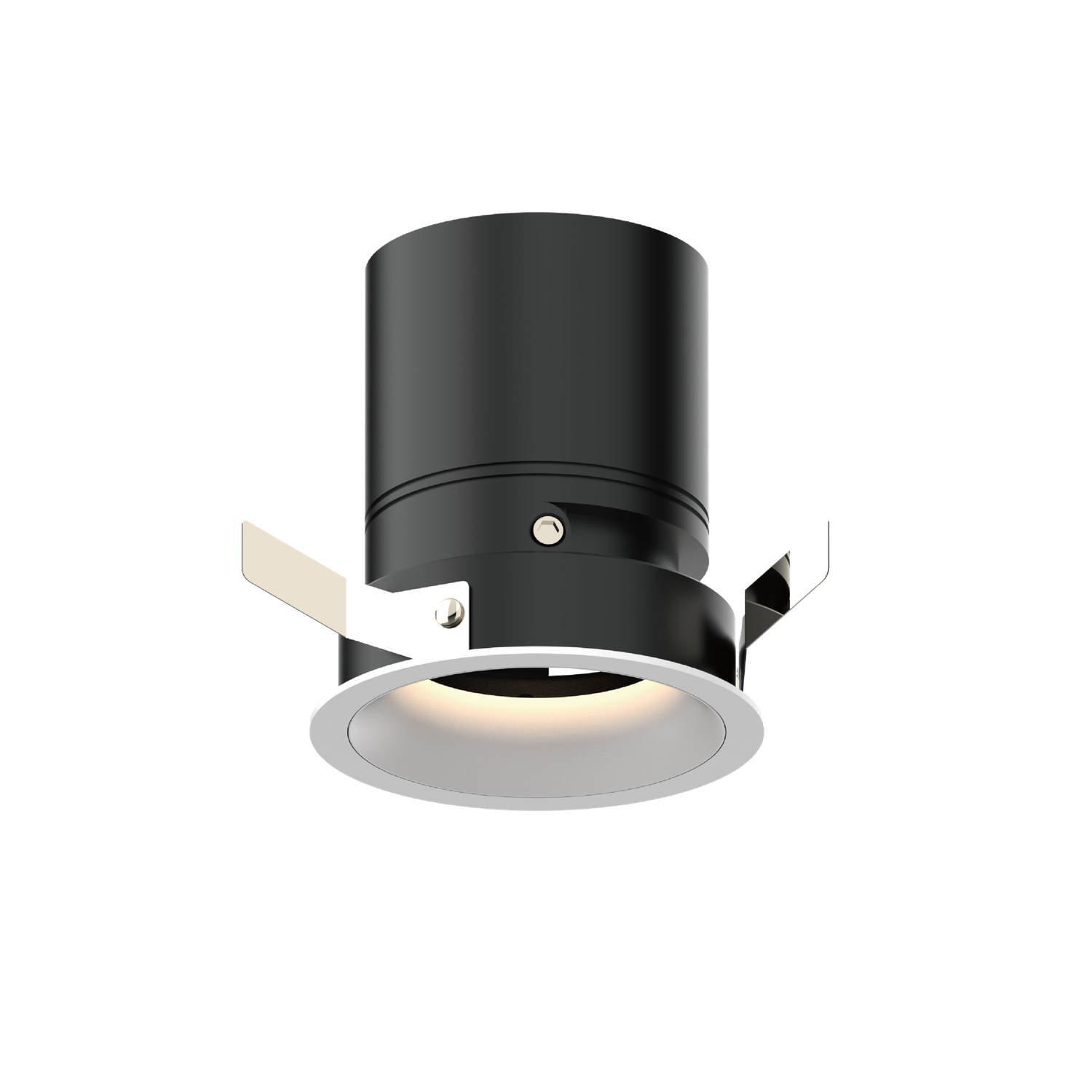

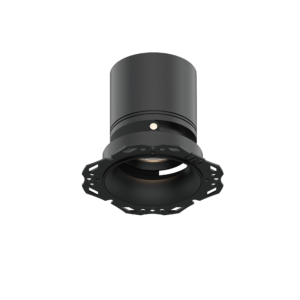

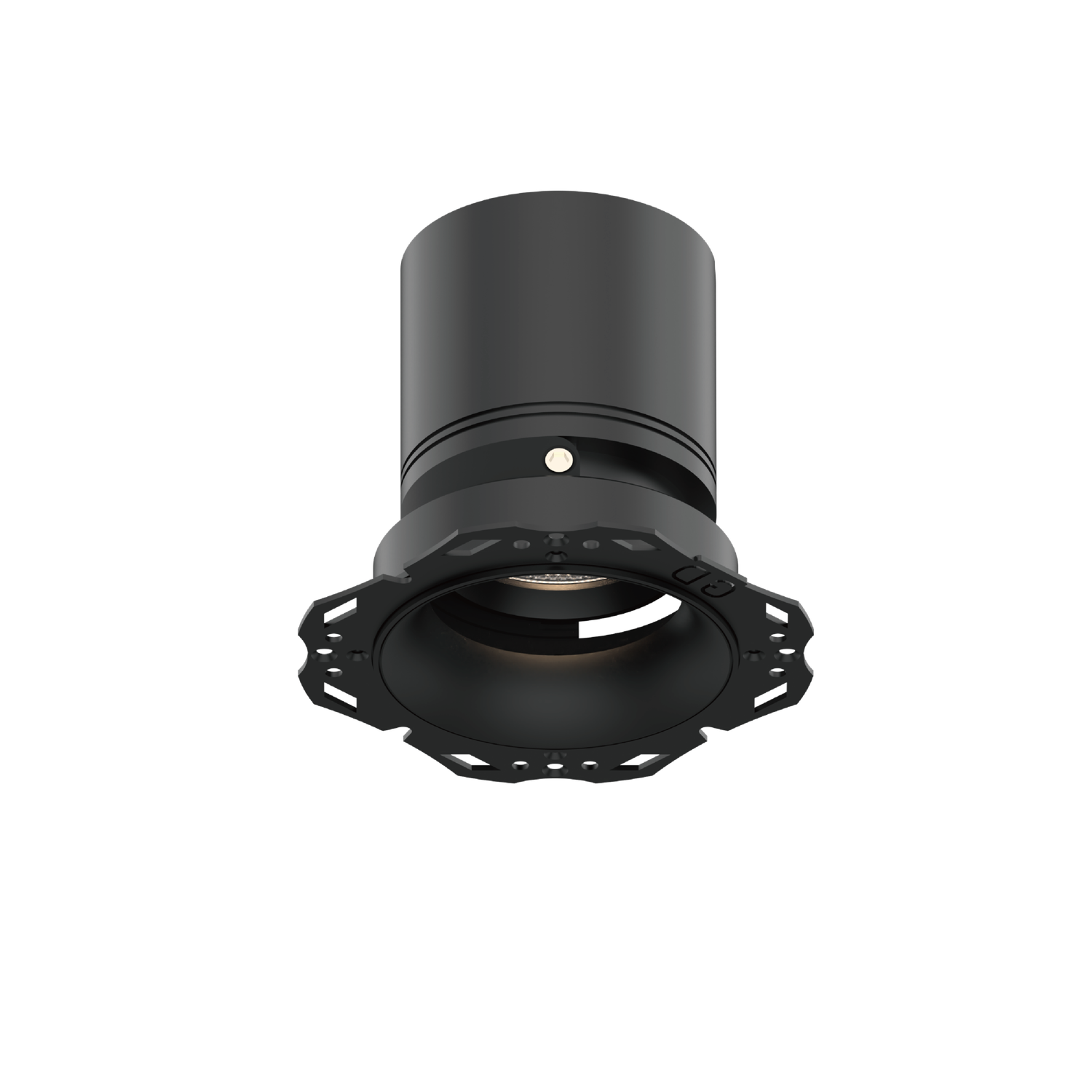

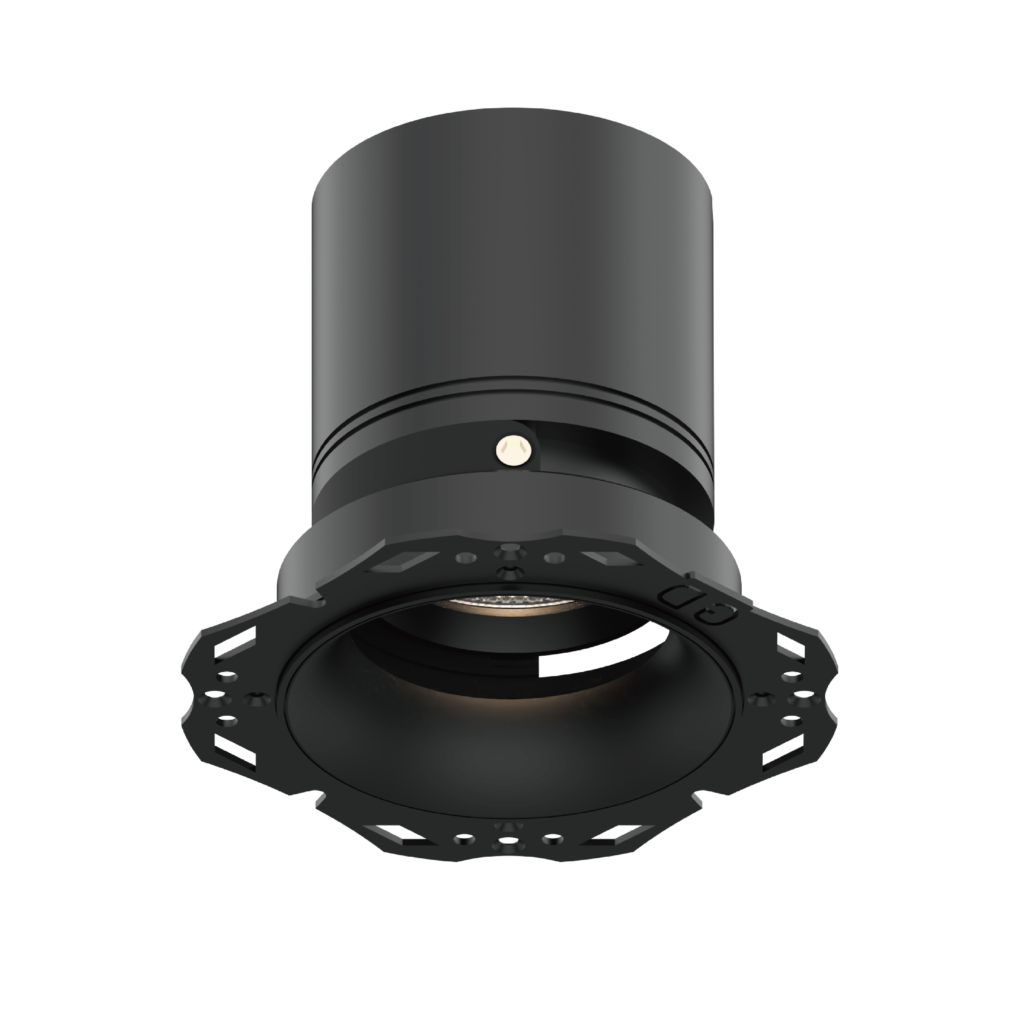

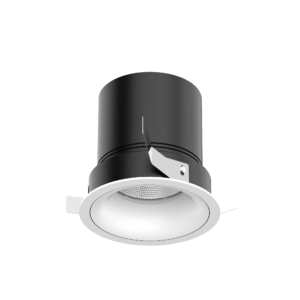

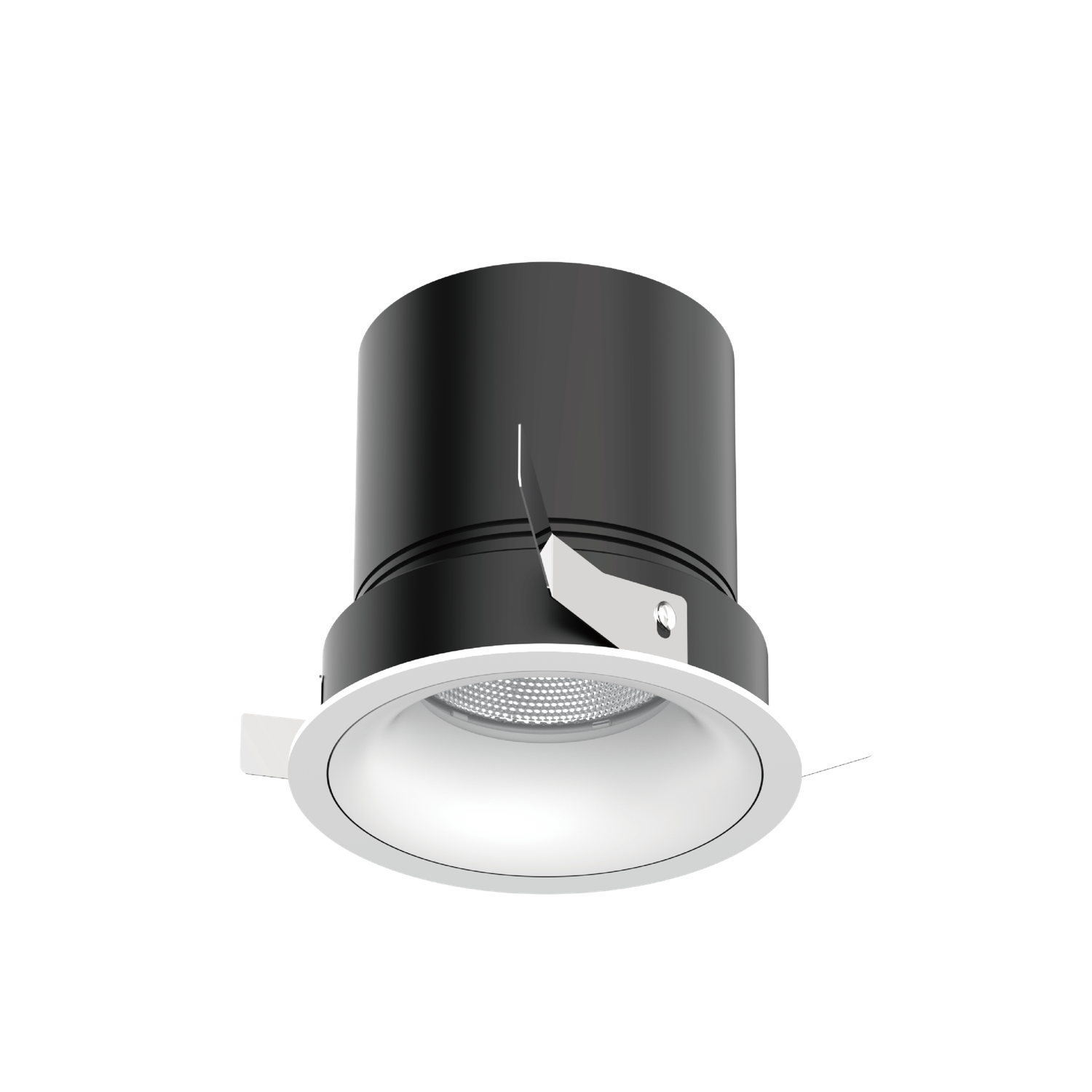

Available in single or double configurations, in trim or trimless versions.
| IP Rating : | IP44 |
| Optics : | 5°/10°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/3500K/4000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 145 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP44 |
| Optics : | 5°/10°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/3500K/4000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 145 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
