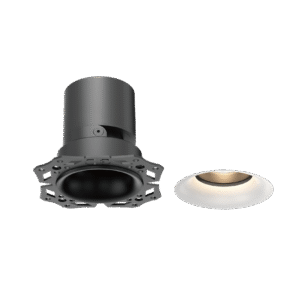

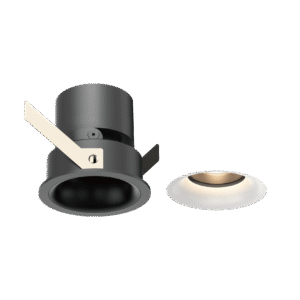

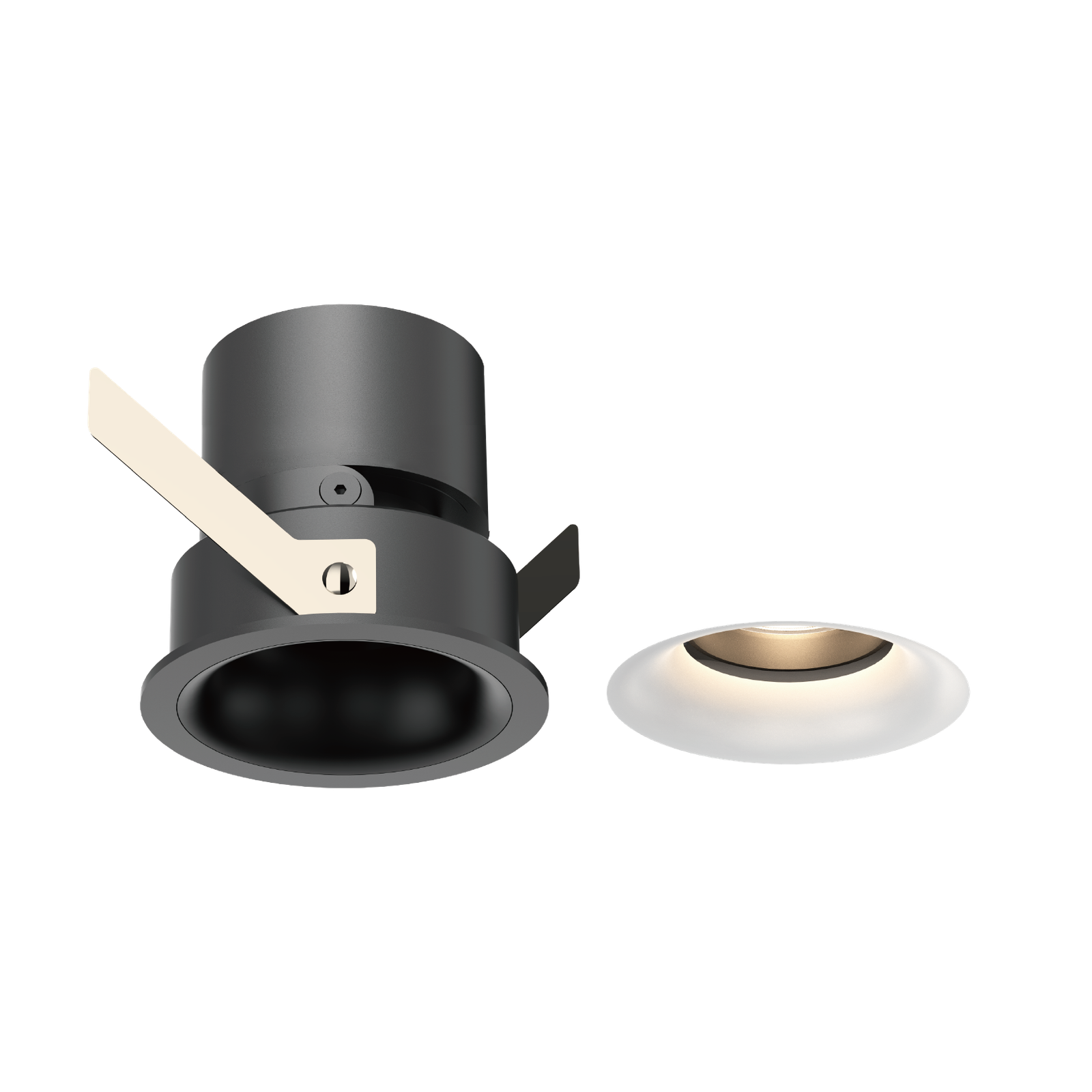

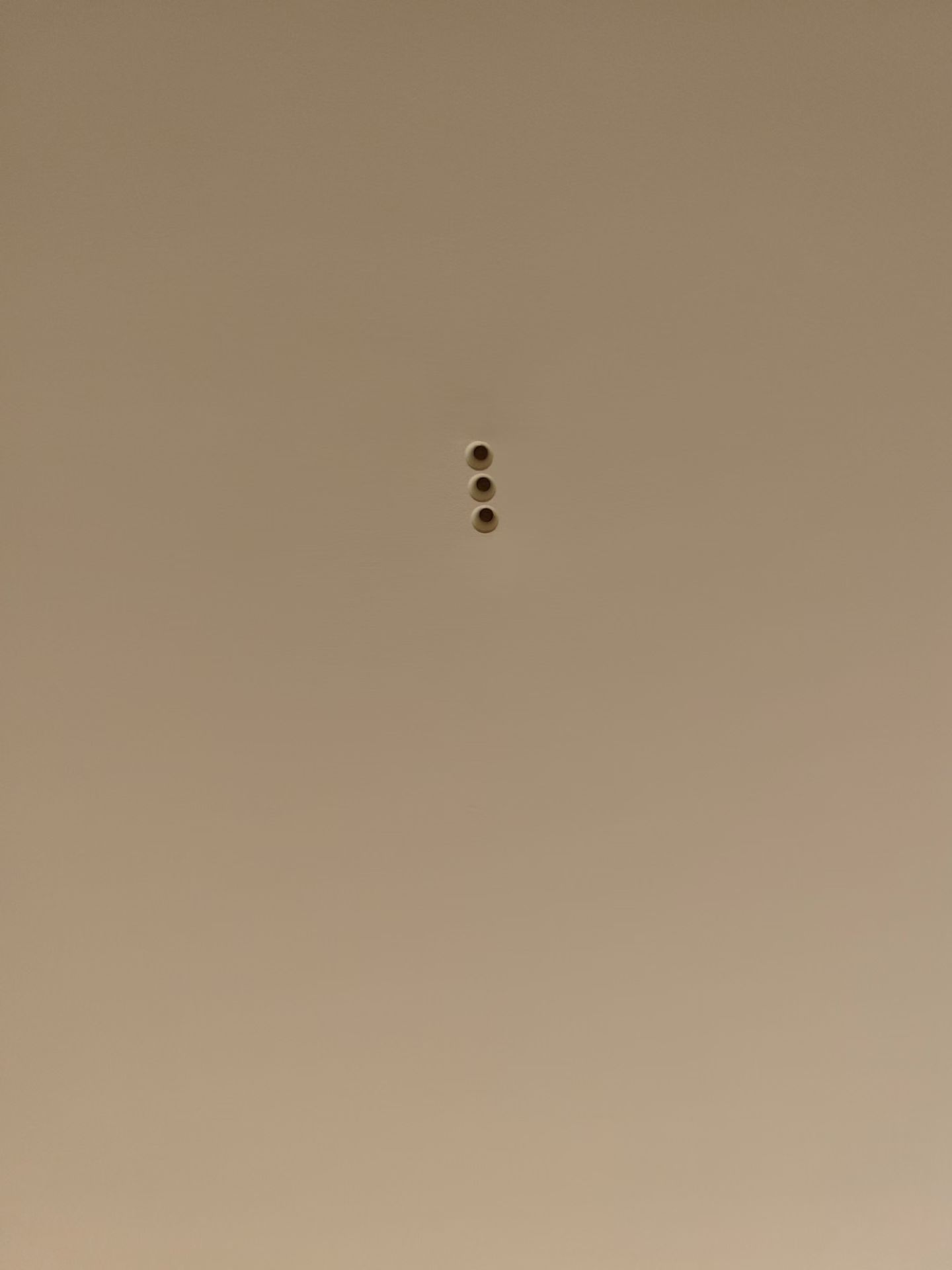

ACME Curve downlights bring together refined minimalism and precise, comfortable illumination. Designed as a cohesive family, they offer mini-trim and trimless options to suit everything from discreet residential applications to high‑end hospitality, retail, and gallery spaces. Their compact, curved form disappears into the ceiling, allowing light – not the luminaire – to define the architecture. With excellent visual comfort and consistent light quality across the range, ACME Curve fittings support everything from intimate mood lighting to focused accenting of key features. Developed to meet demanding international standards, they provide a reliable, future‑ready platform for designers who want a clean ceiling aesthetic without compromising on performance or flexibility.

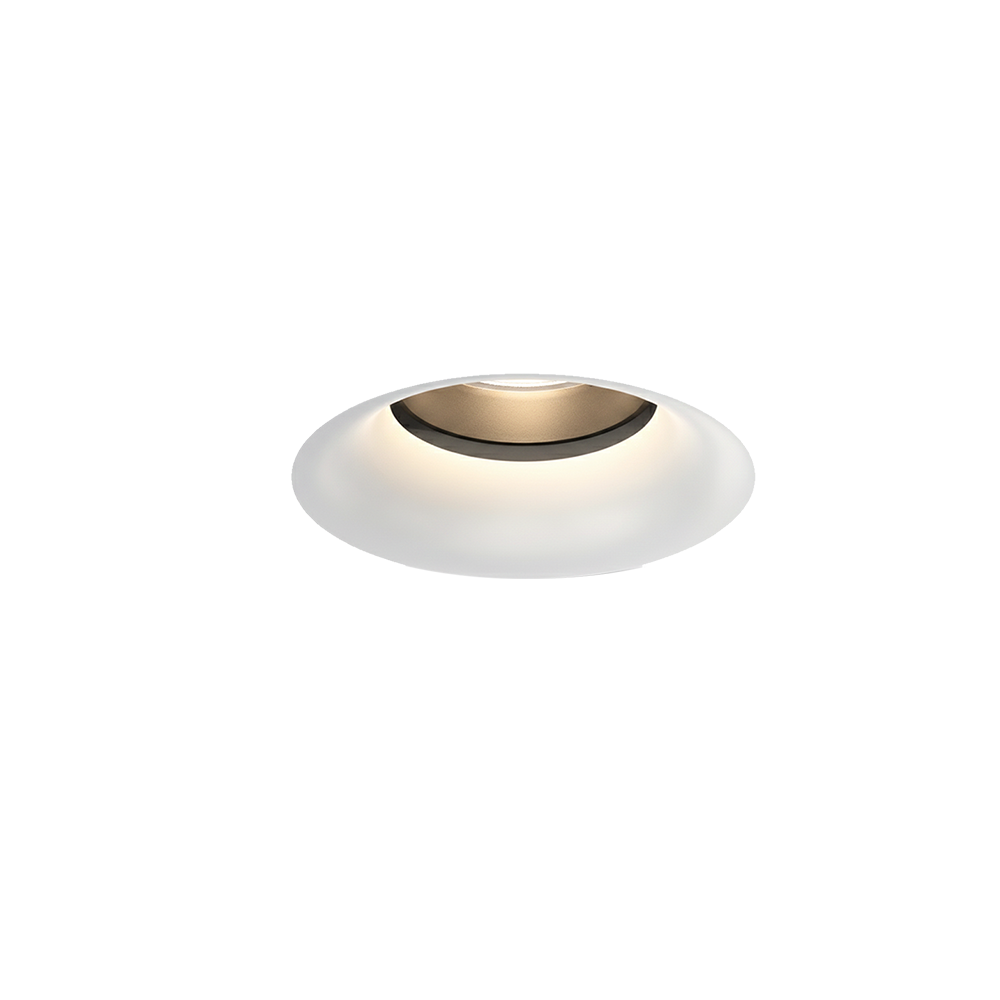

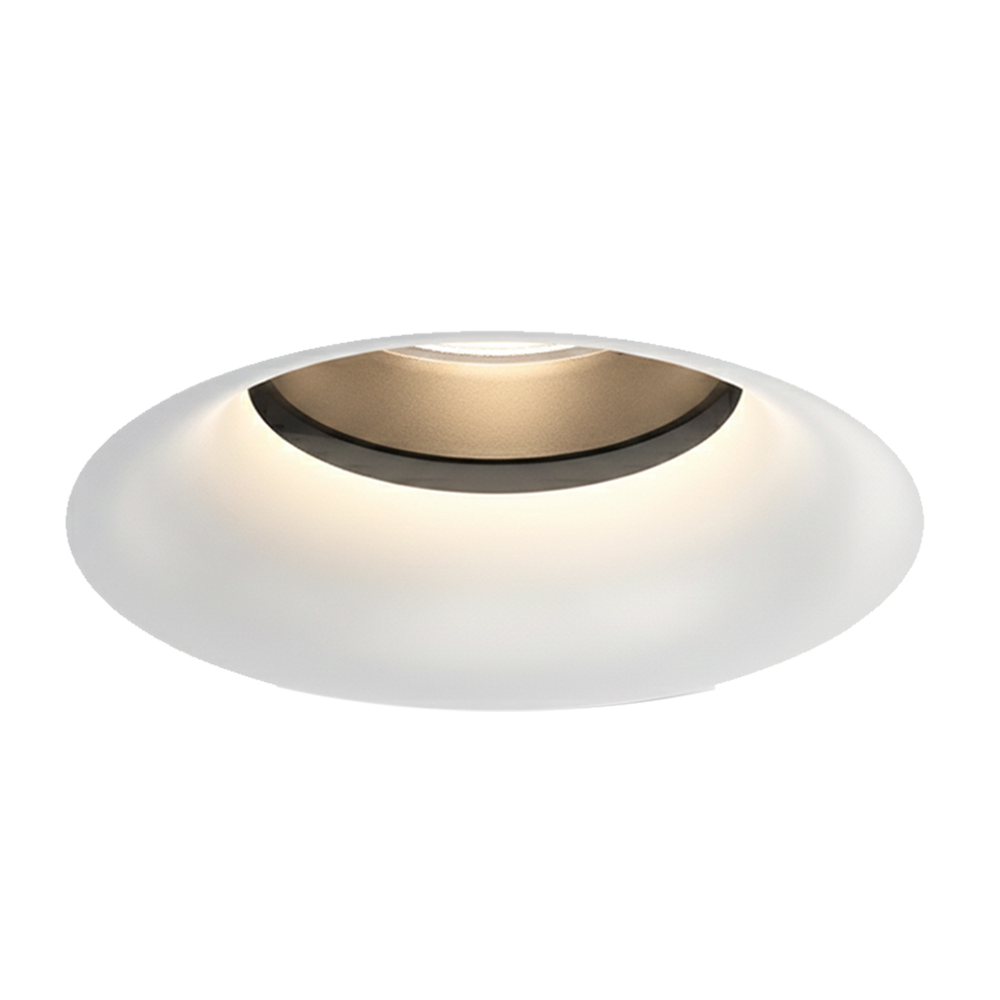

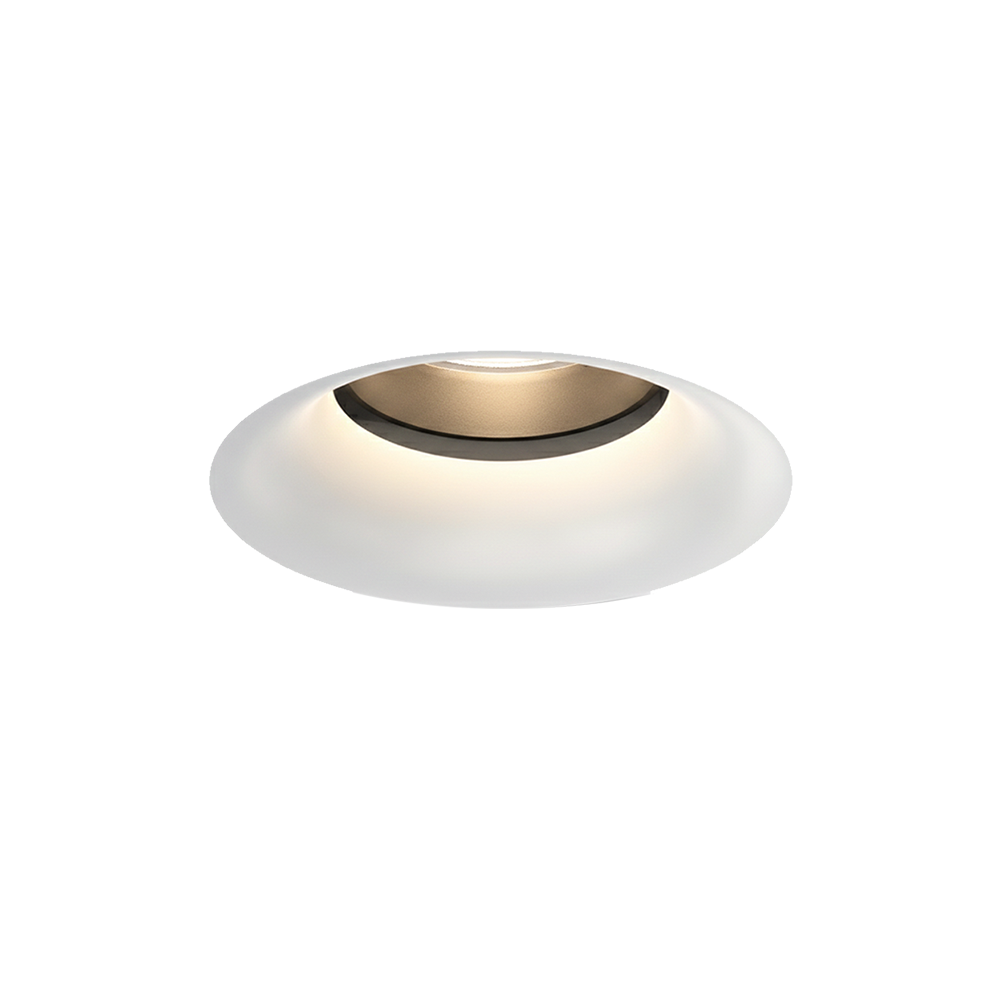

White 9016

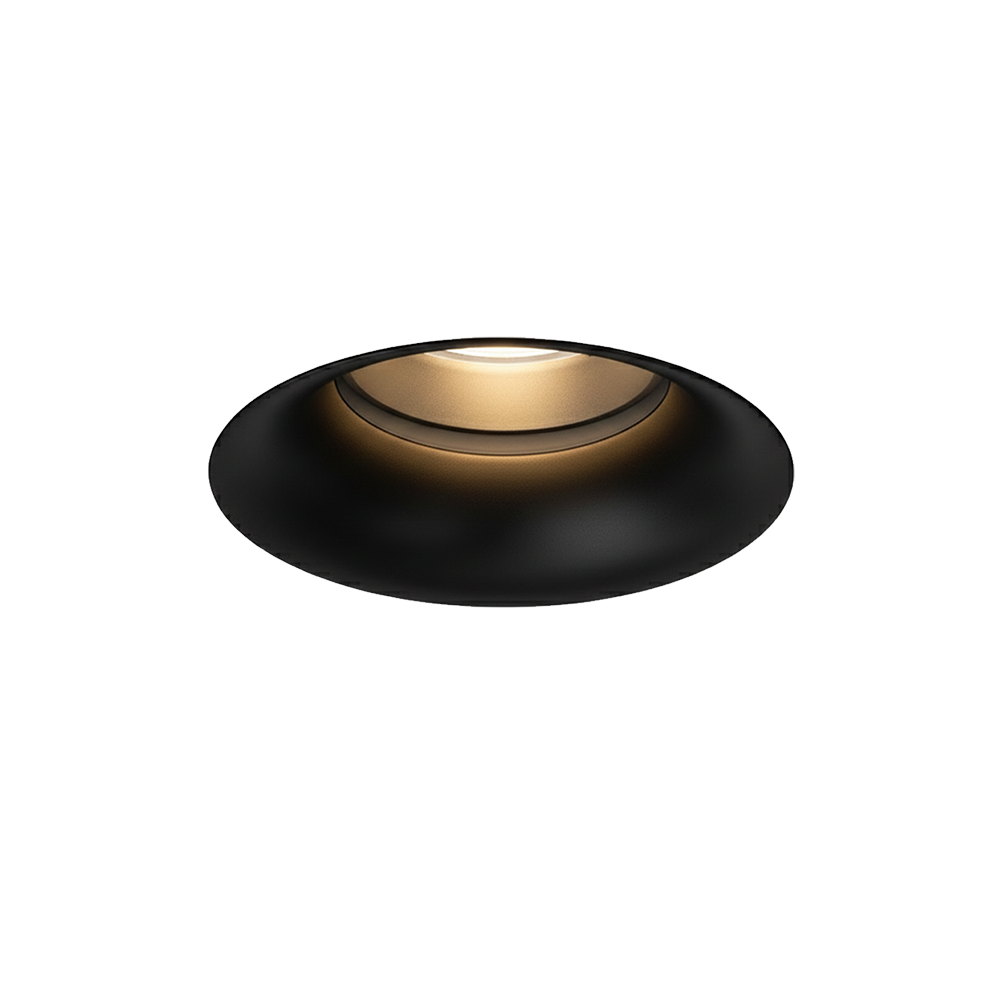

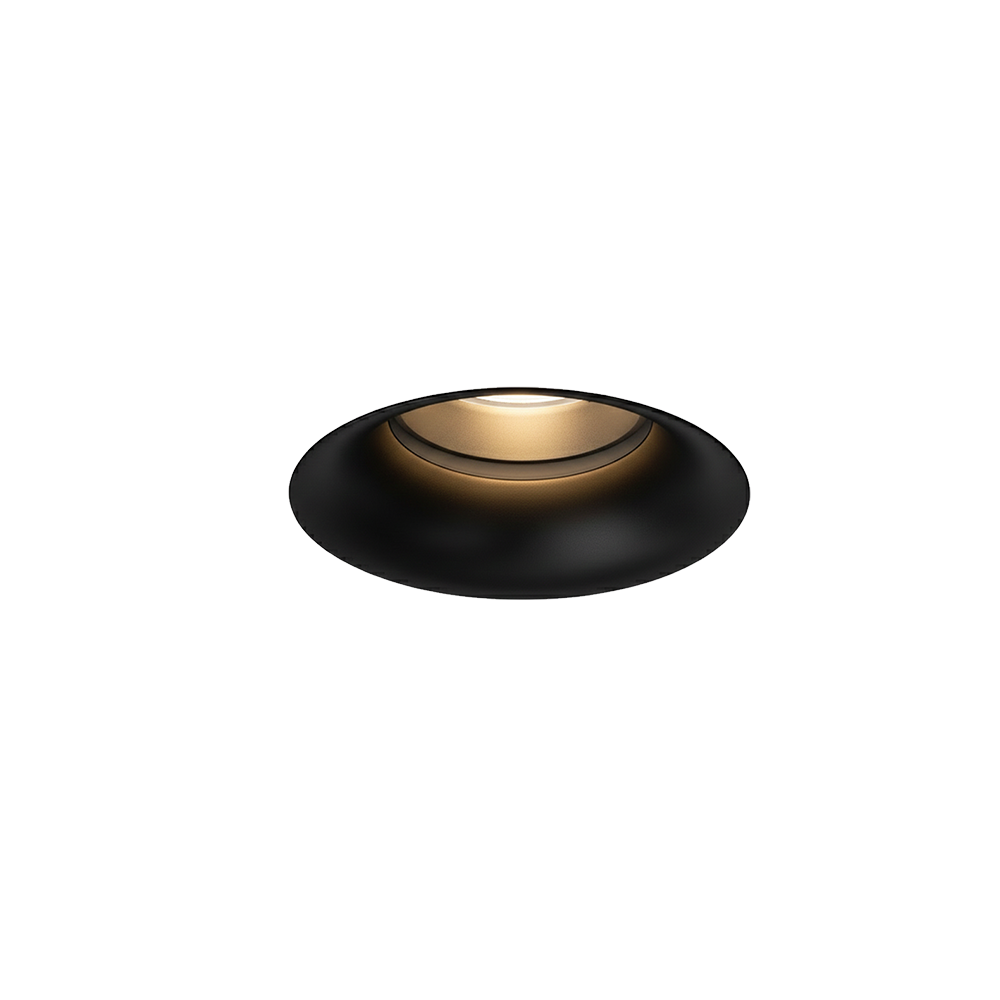

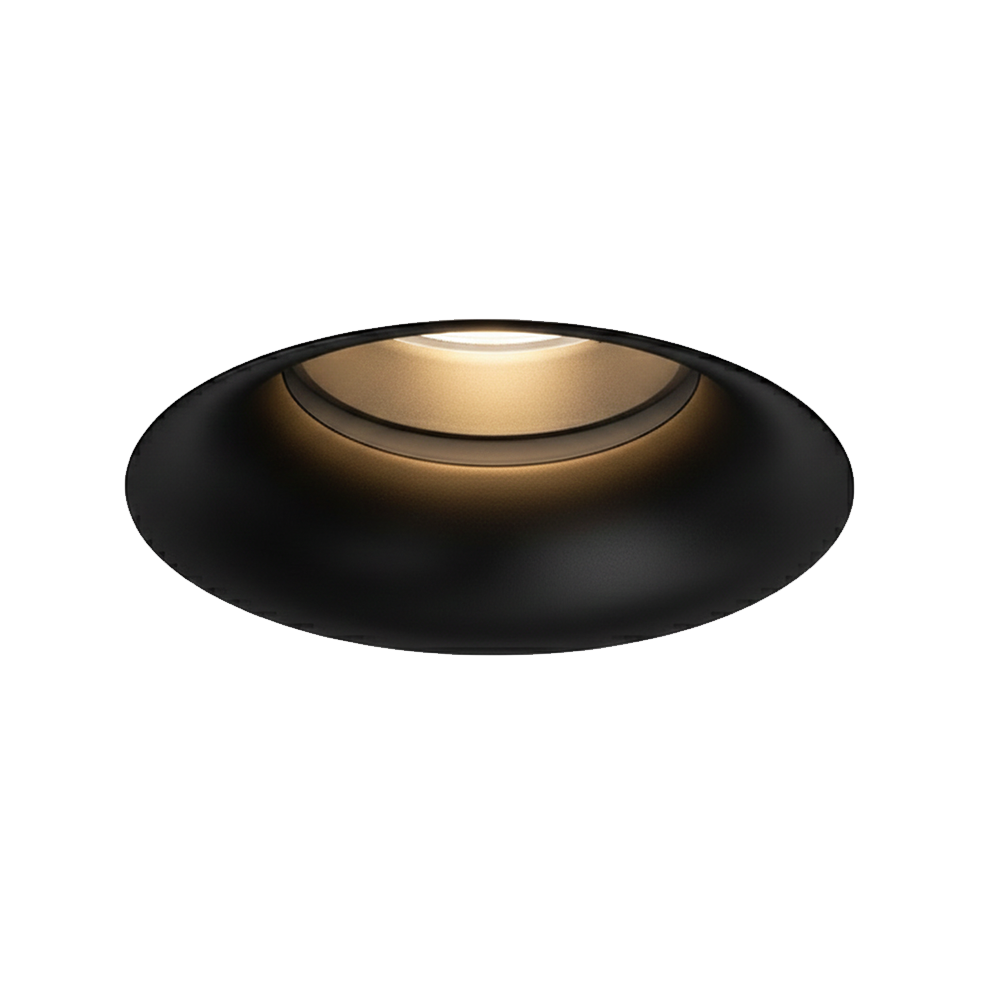

Black 9005
Regency Champagne

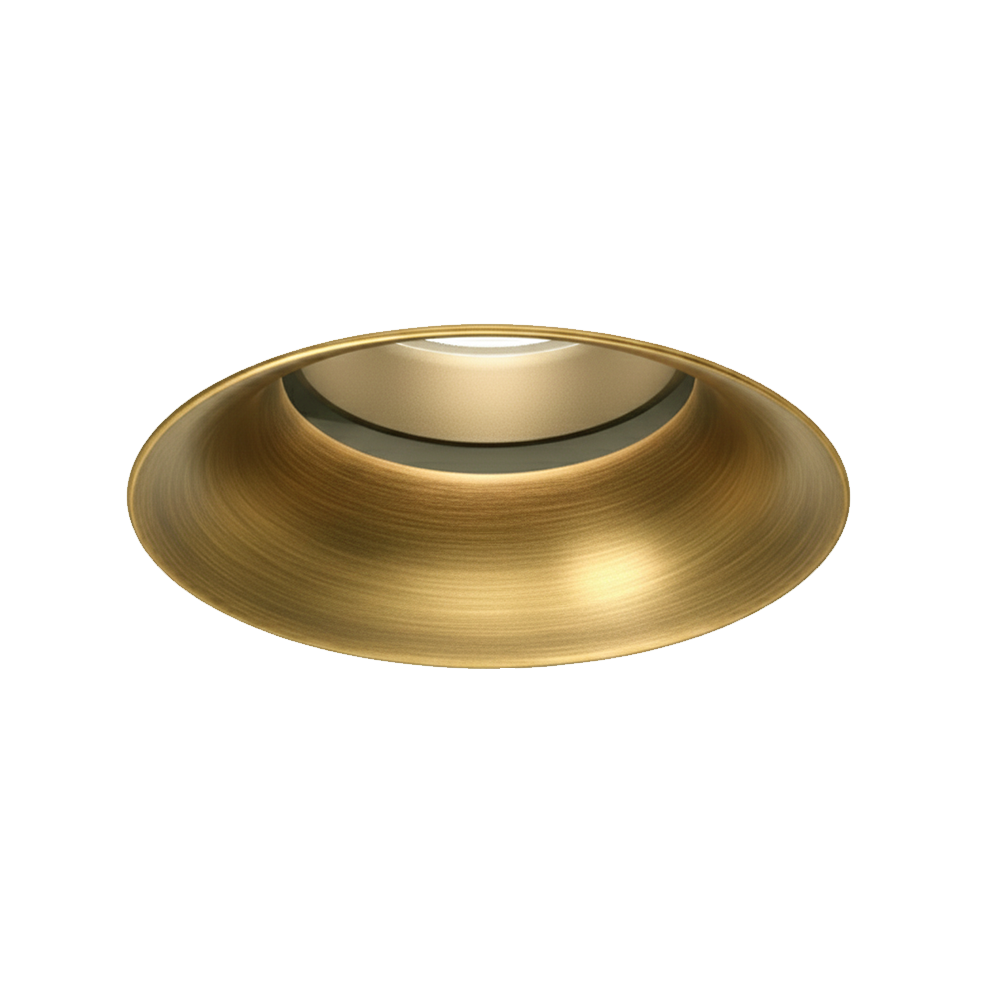

Dark Brass

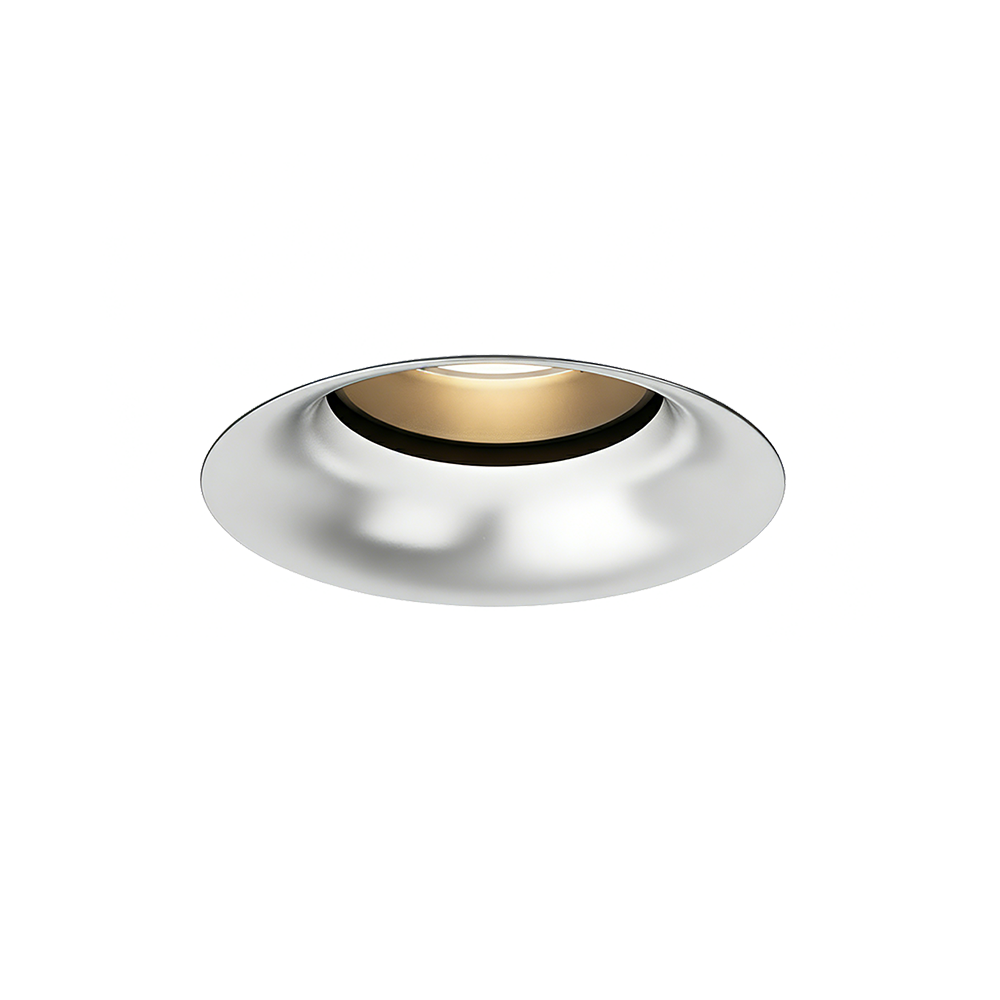

Bright Chrome

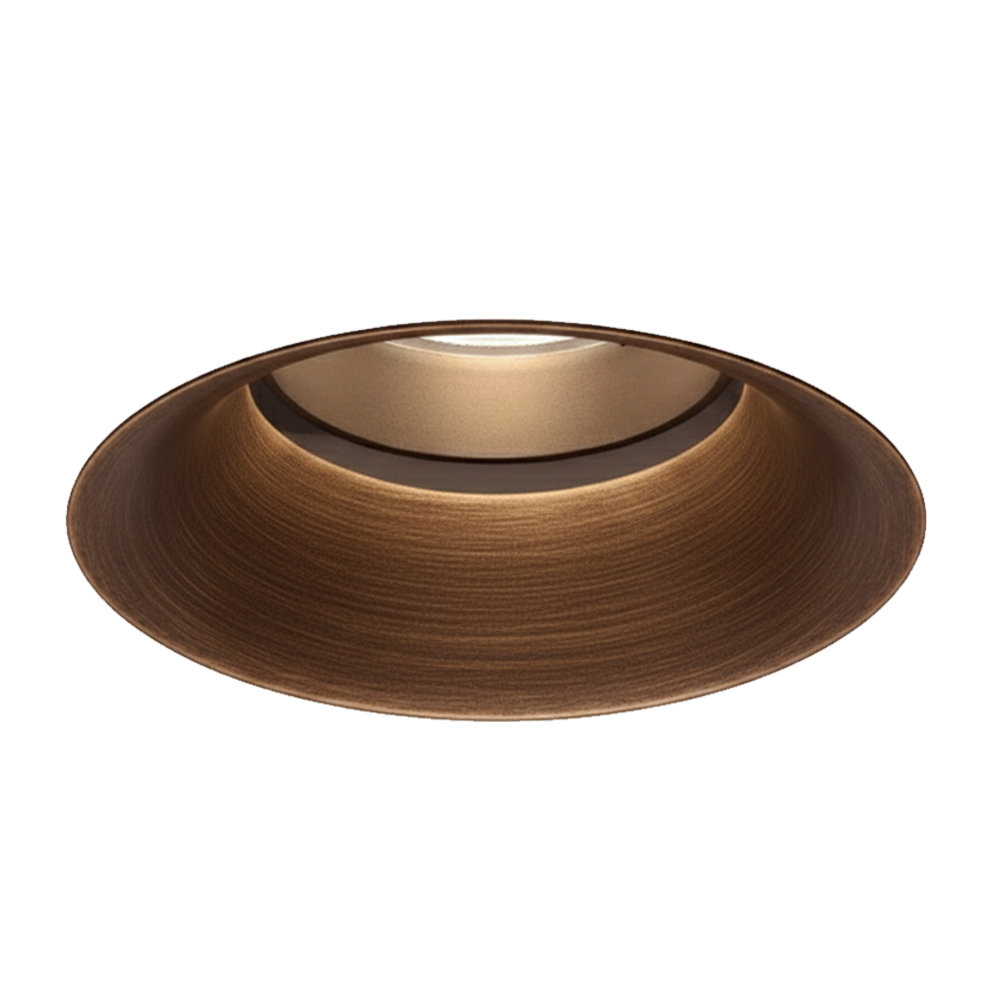

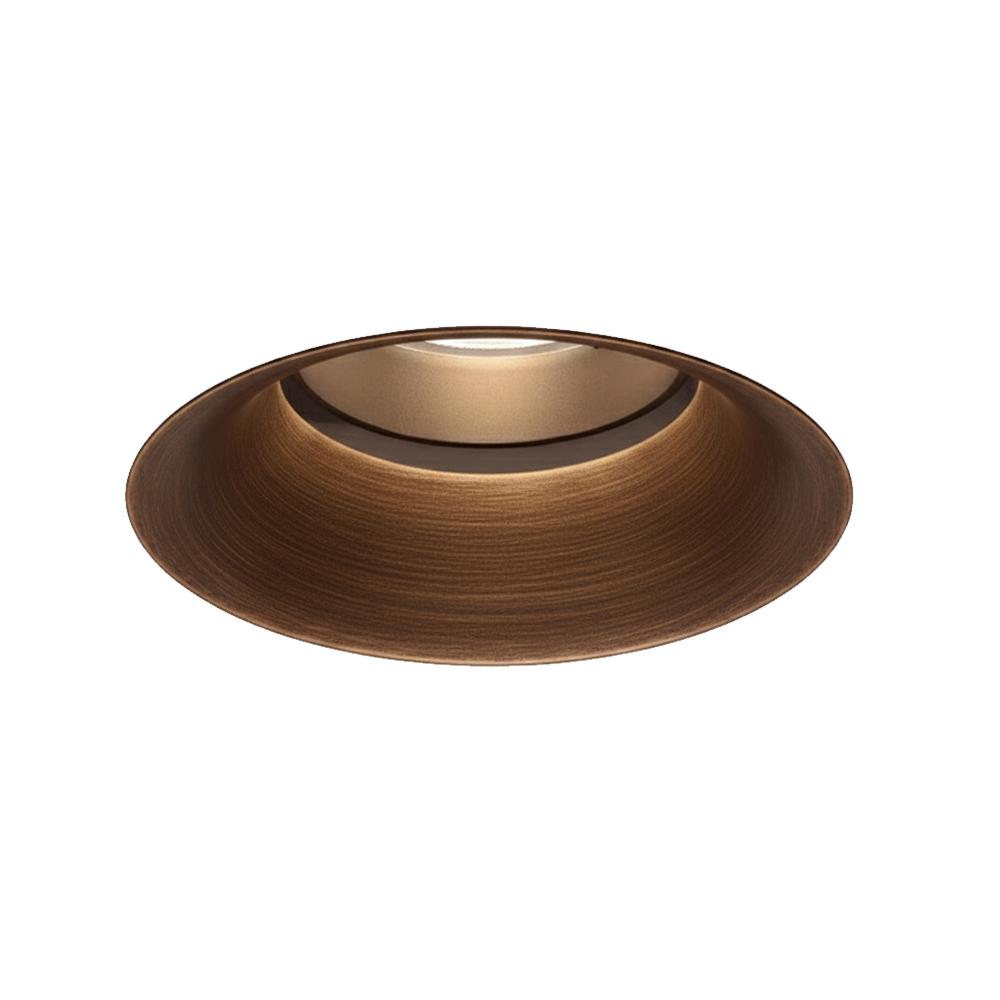

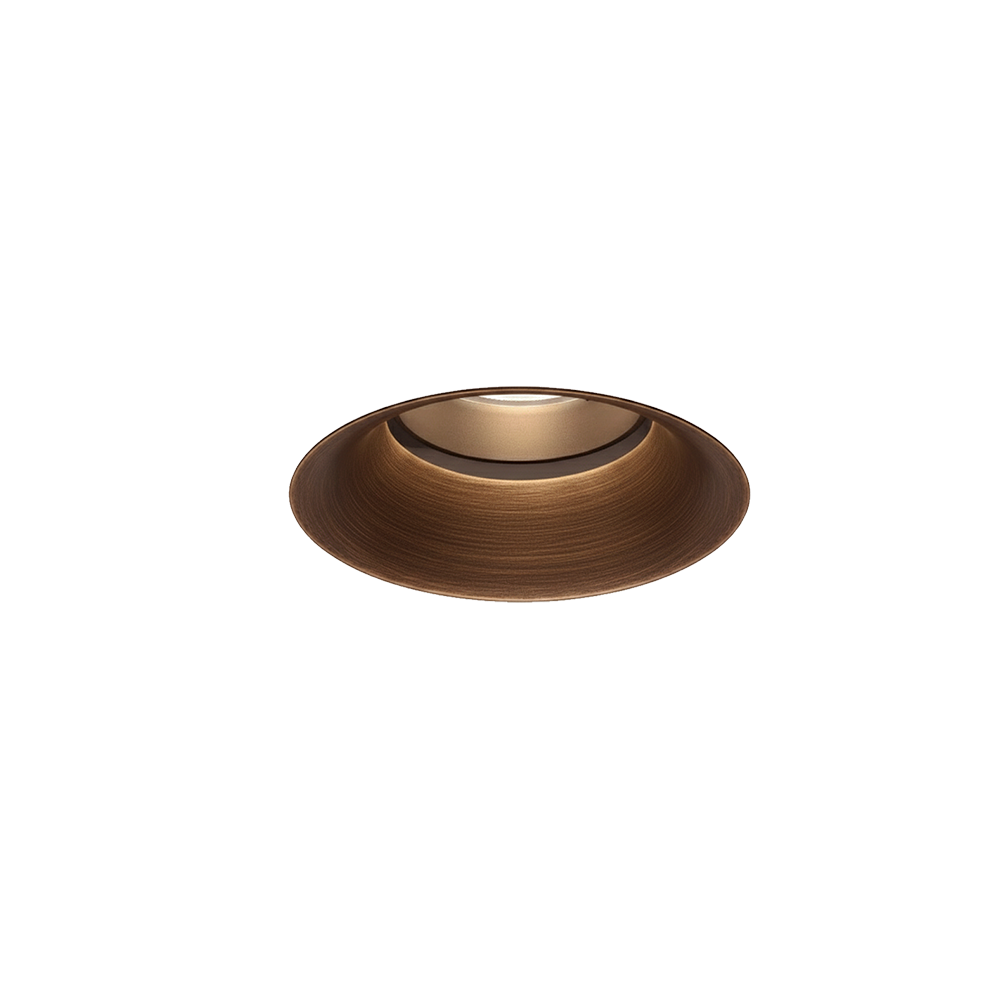

Antique Copper

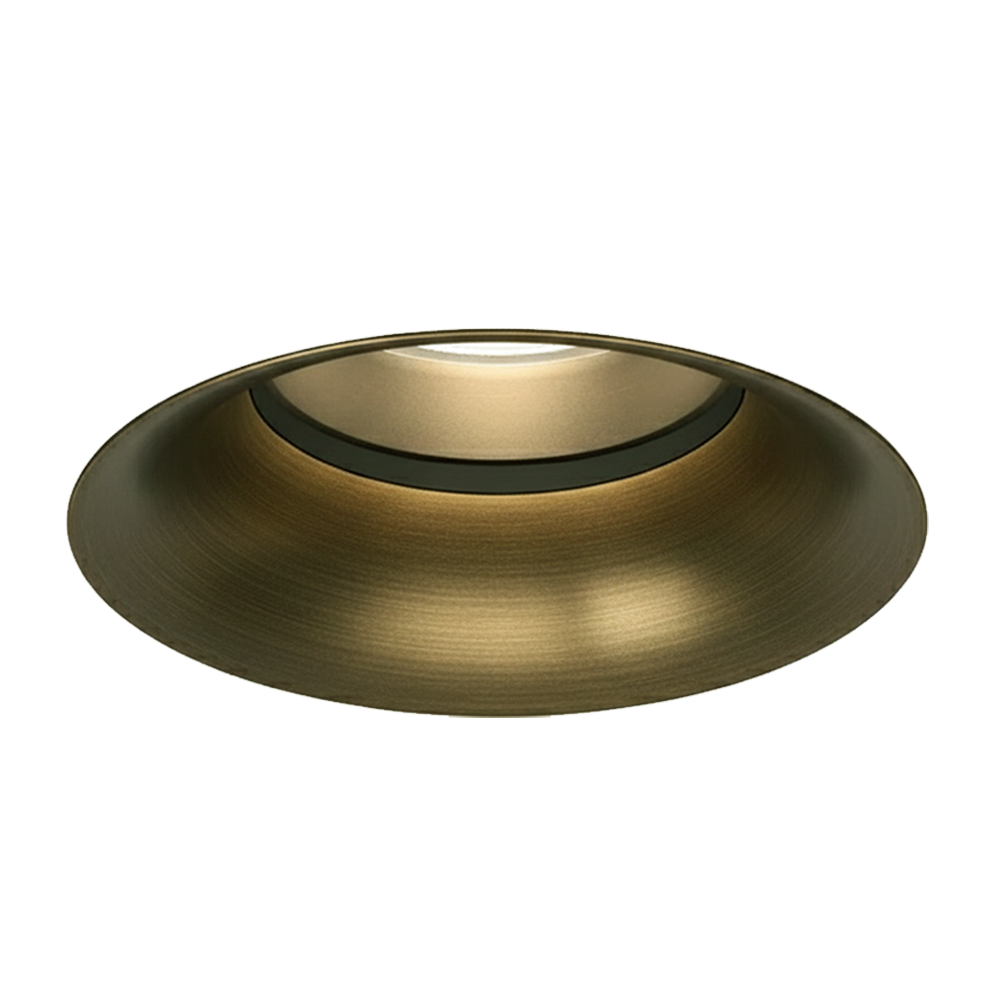

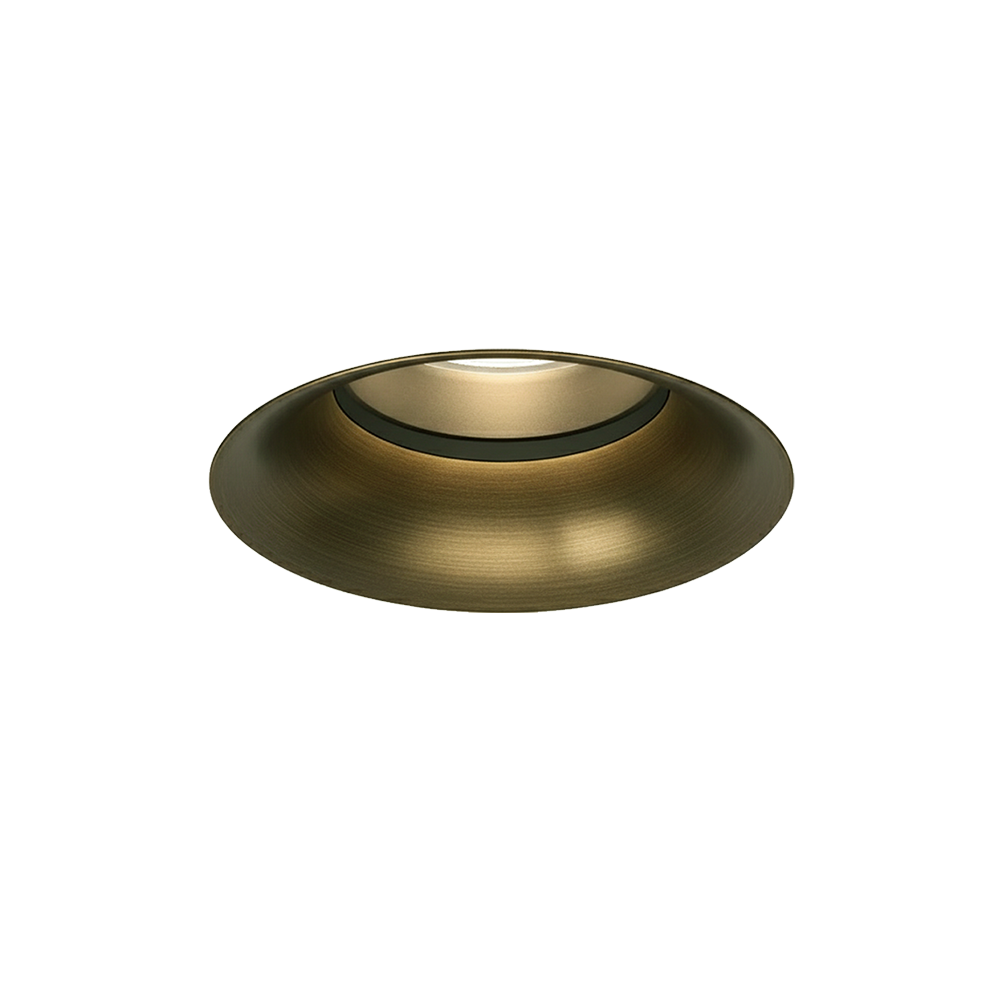

Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005
Bright Chrome
Regency Champagne
Dark Brass
Antique Copper
Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass







White 9016
Black 9005


Black 9005
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP44 front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP44 front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Bright Chrome
Regency Champagne
Dark Brass
Antique Copper
Antique Brass






| IP Rating : | IP65 front |
| Optics : | 15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP44 front |
| Optics : | 5°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005
Regency Champagne
Dark Brass
Bright Chrome
Antique Copper
Antique Brass






| IP Rating : | IP44 front |
| Optics : | 5°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI/RF/RG/R9 : | typ. 98/95/104/97 |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
White 9016
Black 9005

| IP Rating : | IP44 front |
| Optics : | 5°/10°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
Black 9005
| IP Rating : | IP44 front |
| Optics : | 5°/10°/15°/24°/36°/50° |
| UGR : | <10 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K / 3000K / 3500K / 4000K / 2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output* : | DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W |
| Ambient temp : | -20 ℃ to 25 ℃ |
| Optionsl Accessories : | Honeycomb, Elliptical Lens,Solite lens |
