ACME CURVE ADJUSTABLE

by DuraGreen

Where light shapes architecture.

Designed for interiors where every detail matters, ACME Curve Adjustable combines a discreet curved silhouette with precise directional light. Its minimal form disappears into the ceiling, creating a calm and refined ceiling aesthetic while delivering powerful flexibility for accent and mood lighting.

From intimate residential interiors to luxury retail, hospitality, and gallery environments, ACME Curve Adjustable offers a future-ready platform for designers seeking visual comfort, consistency, and architectural elegance.

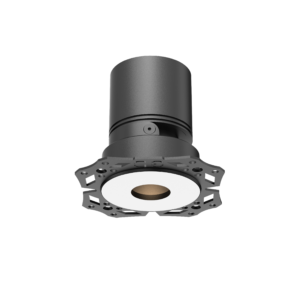

Close-up of a gray cylindrical metal component with a round flange at the bottom, featuring multiple bolt holes, viewed from below against a black background.
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 50 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 50 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 57 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 57 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 68 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 68 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 78 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :5°/15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME CURVE ADJUSTABLE - 78 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :5°/15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME CURVE ADJUSTABLE - 110 Curve Mini-Trim Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME CURVE ADJUSTABLE - 110 Curve Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP44 front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 300mA 12W/ DC 36V 350mA 15W/ DC 36V 500mA 20W /DC 36V 600mA 25W /DC 36V 700mA 30W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
