ACME PINHOLE

by DuraGreen

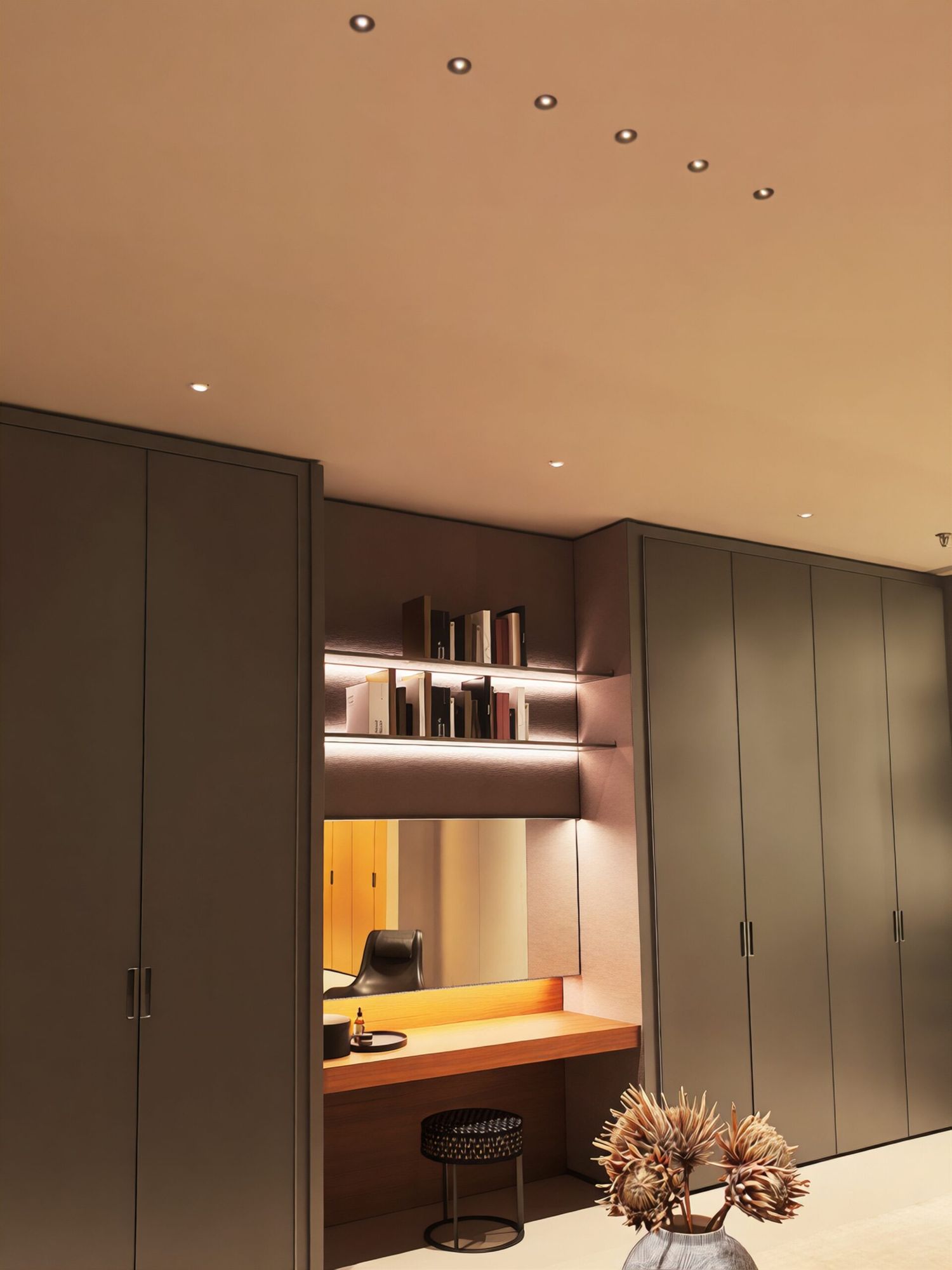

ACME Pinhole downlights offer ultra‑discreet illumination through a refined, minimal aperture. The deeply recessed light source keeps the ceiling visually calm while delivering precise, comfortable beams exactly where they’re needed. Ideal for premium residential, hospitality, retail, and gallery projects, the range provides a coherent, understated solution for sophisticated, glare‑controlled lighting schemes.

✖

SPEC

Certifications

SIZE

ACME PINHOLE - 50 Pinhole Fixed

Copy link QUOTE Share

IP Rating :IP44 front
Optics :28°/33°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 25 ℃
Class :III

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME PINHOLE - 50 Pinhole Trimless Fixed

Copy link QUOTE Share

IP Rating :IP44 front
Optics :28°/33°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 25 ℃
Class :III

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Pinhole Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃ ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Pinhole Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Oval Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

ACME PINHOLE - 57 Oval Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

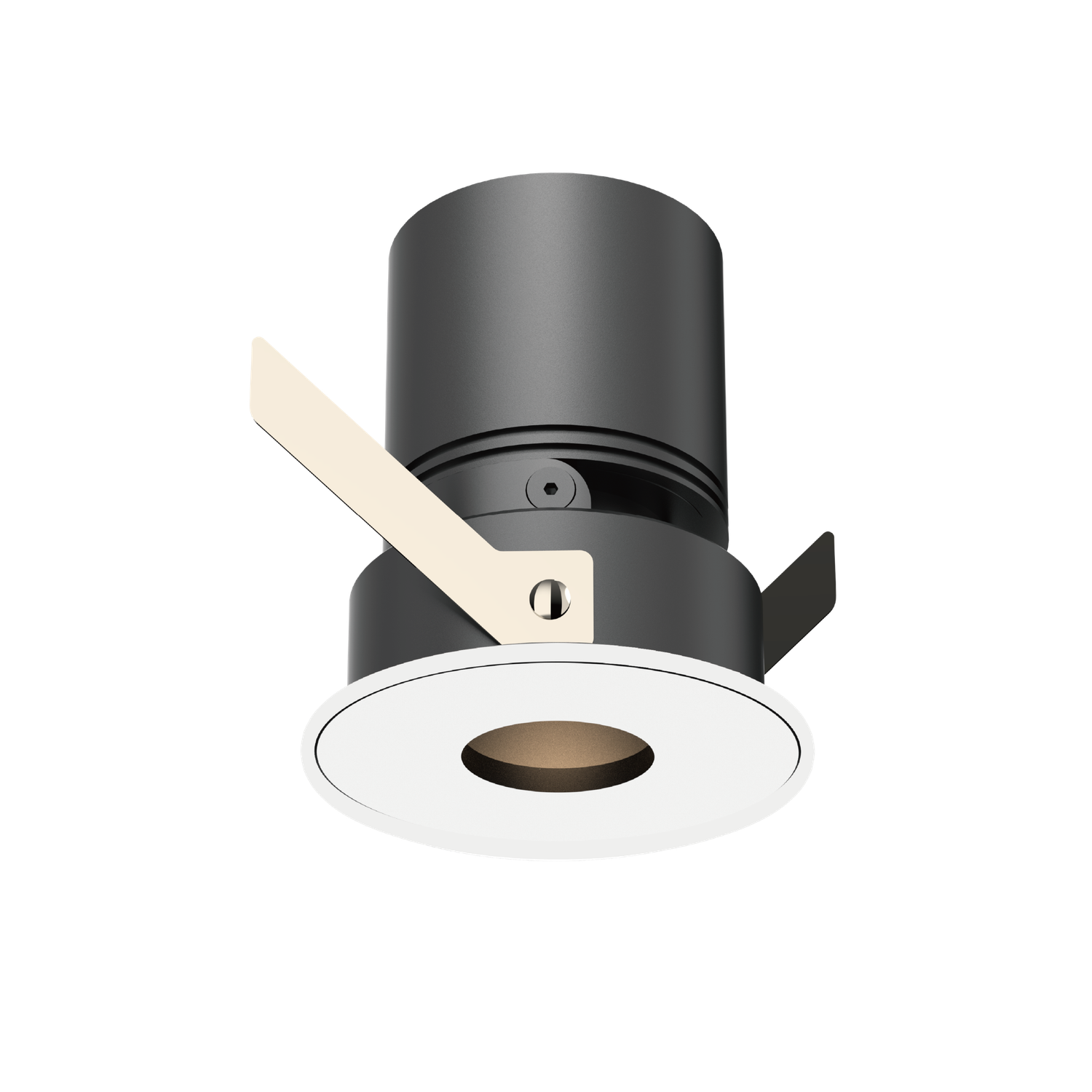

ACME PINHOLE - 68 Pinhole Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

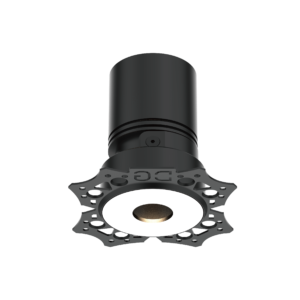

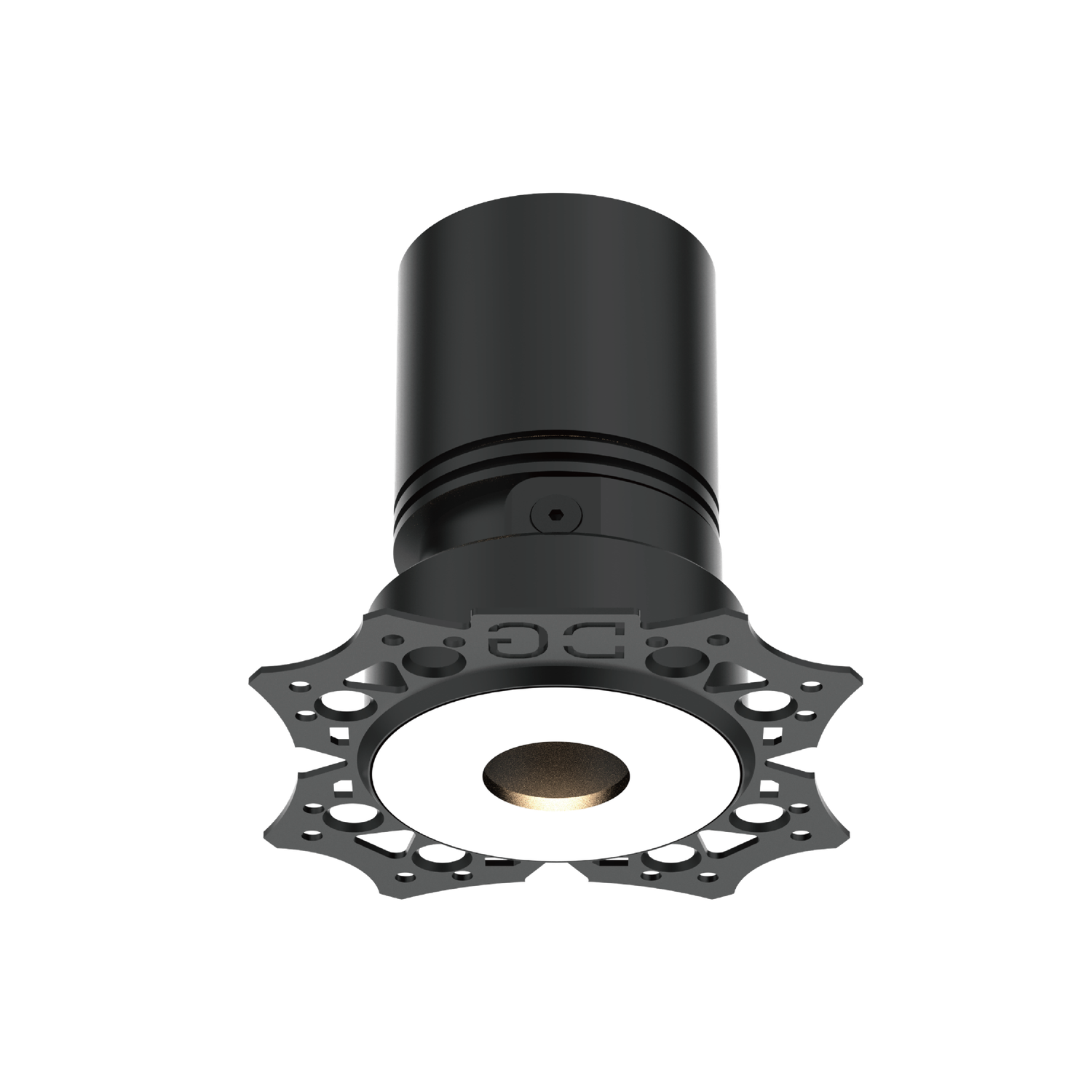

ACME PINHOLE - 68 Pinhole Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W/ DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

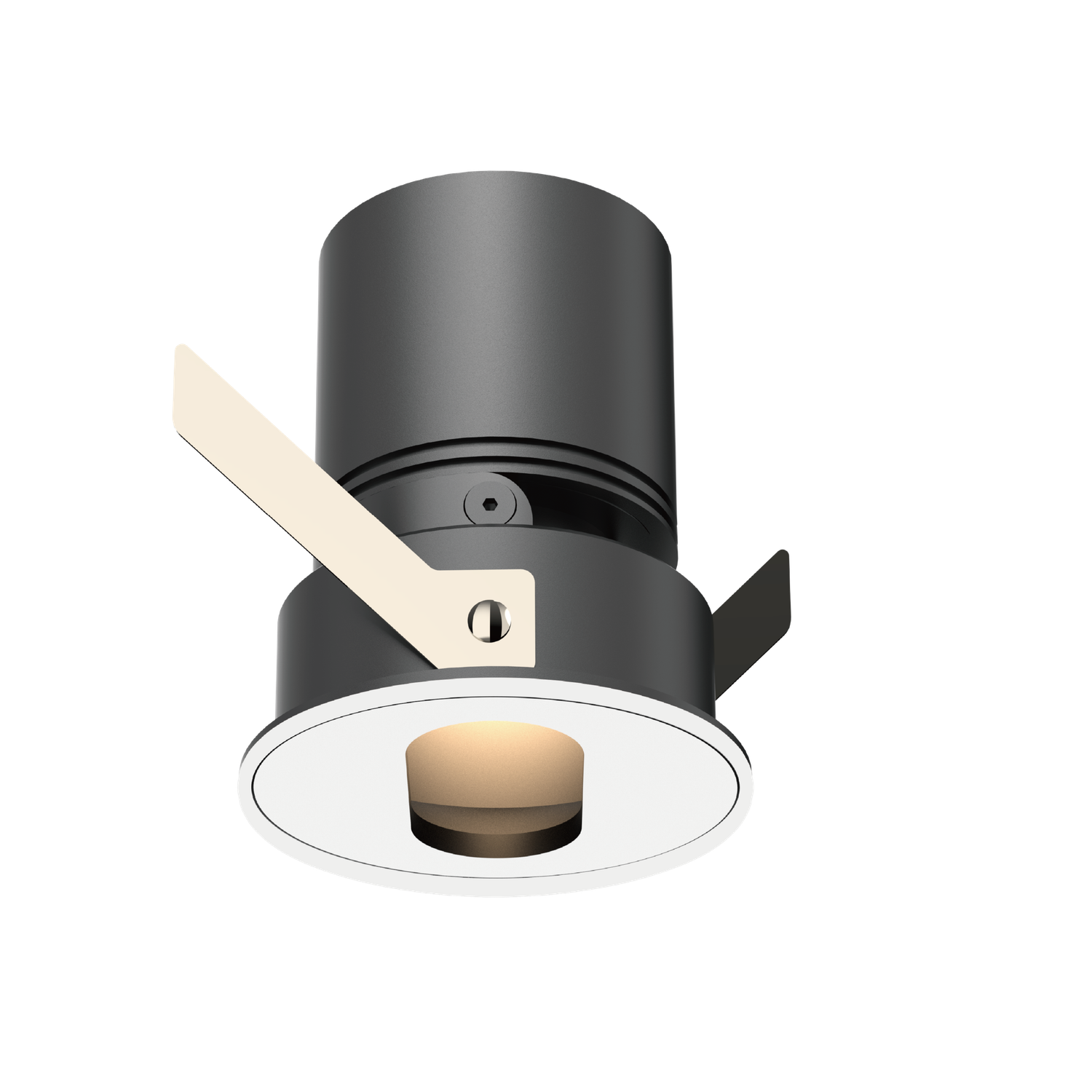

ACME PINHOLE - 68 Oval Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W /DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

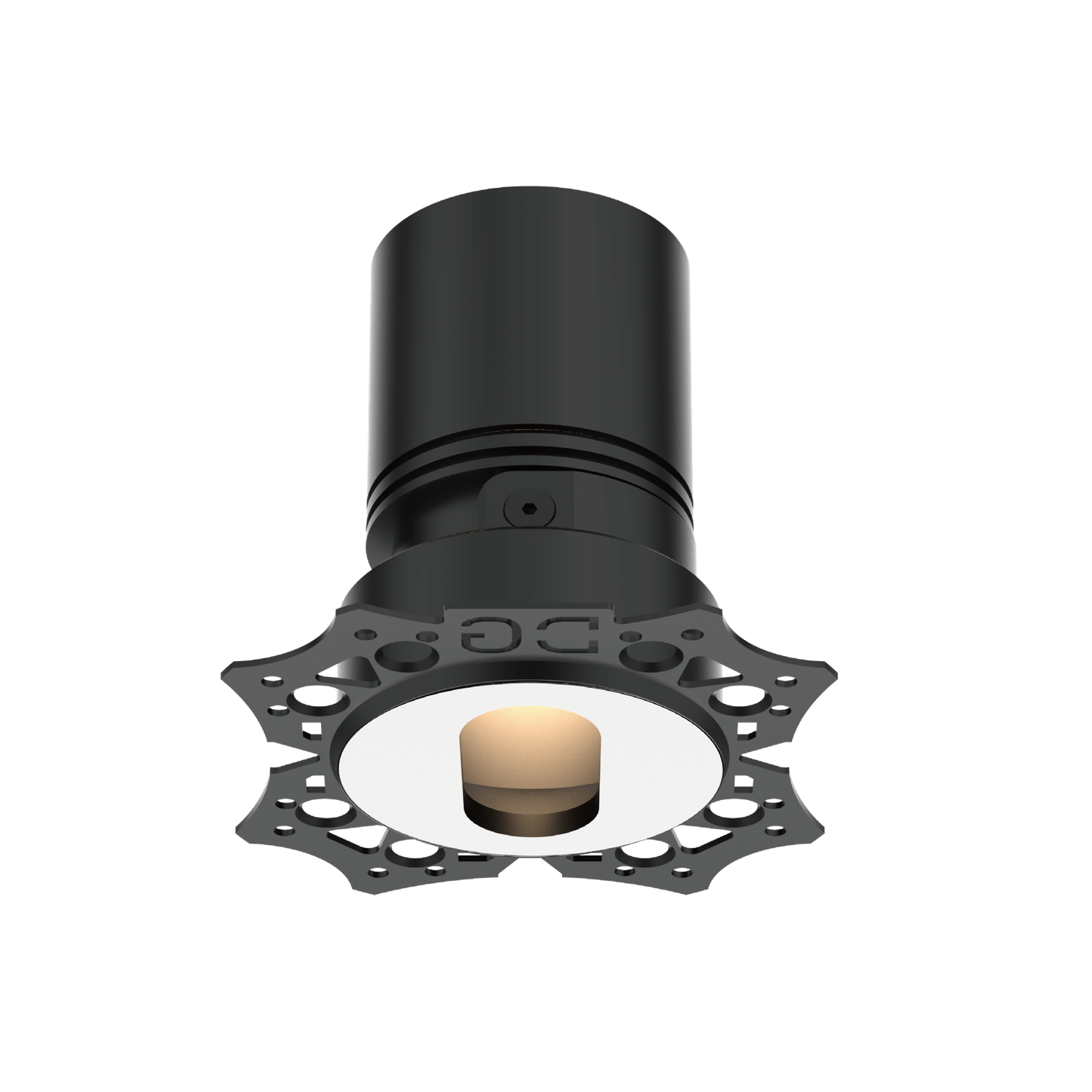

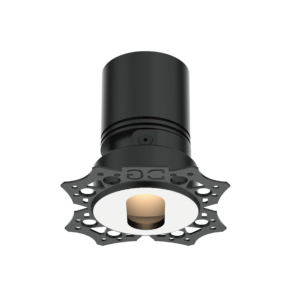

ACME PINHOLE - 68 Oval Trimless Adjustable

Copy link QUOTE Share

IP Rating :IP65 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W/ DC 36V 250mA 10W/ DC 36V 300mA 12W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
