BACK

ACME In-Out

by DuraGreen

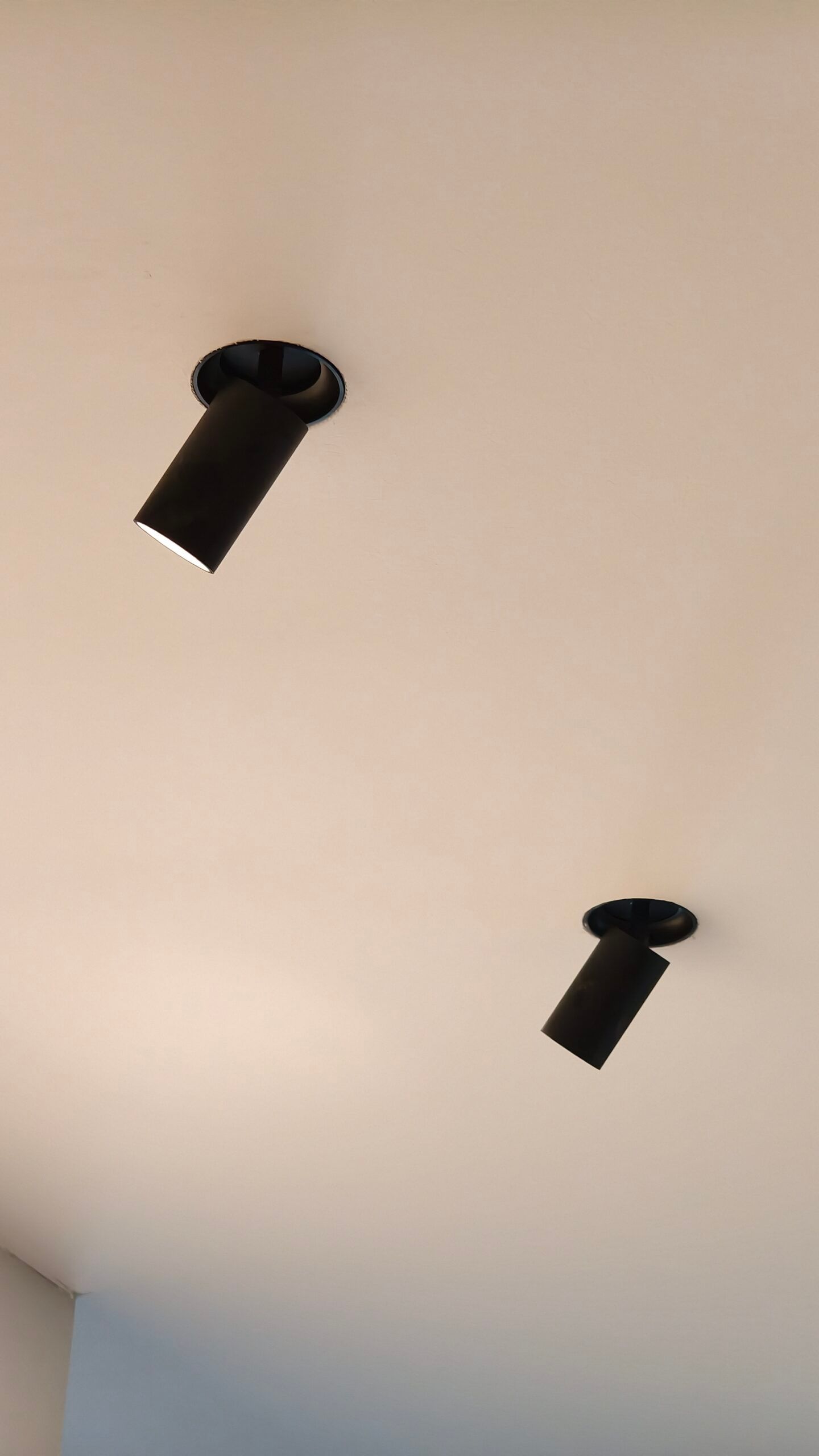

ACME In‑Out spotlights are designed to give maximum flexibility in how you light a space, allowing the light engine to sit flush with the ceiling or be pulled out and aimed with precision. Their compact form, full‑spectrum CRI 98 options, and tight, clean beam angles make them ideal for highlighting artwork, joineries, or architectural details while keeping ceilings visually calm. With multiple sizes, optics, CCTs, and control options (including DALI, 0/1‑10V, Zigbee, and Casambi), the ACME In‑Out family provides a coherent, high‑end toolkit for premium residential, retail, hospitality, and gallery projects.

✖

SPEC

Certifications

SIZE

ACME In-Out - 50 In-out Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/28°/36°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 50 In-out Trimless Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/28°/36°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 57 In-out Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 57 In-out Trimless Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 68 In-out Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°/50°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 68 In-out Trimless Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°/50°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 78 In-out Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°/50°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :/1-10V, Dali, Zigbee, Casambi 2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

ACME In-Out - 78 In-out Trimless Spotlights

Copy link Share

IP Rating :IP20 and IP44 options
Optics :15°/24°/36°/50°
UGR :<10
CRI :98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
