A range of luminaires for embedded installation features the same 57mm cutout installation frames for both downlights and spotlights, offering options for both mini-trim and trimless designs.
At DuraGreen, our products reflect a modular system approach. This simplifies lighting design while enhancing the visual appeal of any space with a uniform ceiling cutout. Customers have found this feature particularly helpful for solving lighting design errors on-site.
| IP Rating : | IP65 Front |
| Optics : | 120° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 200mA 8W |
| Ambient temp : | -20 ℃ to 45 ℃ |

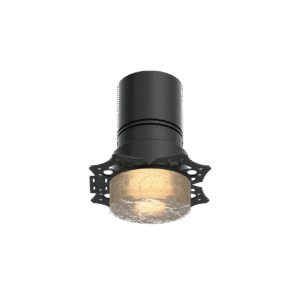

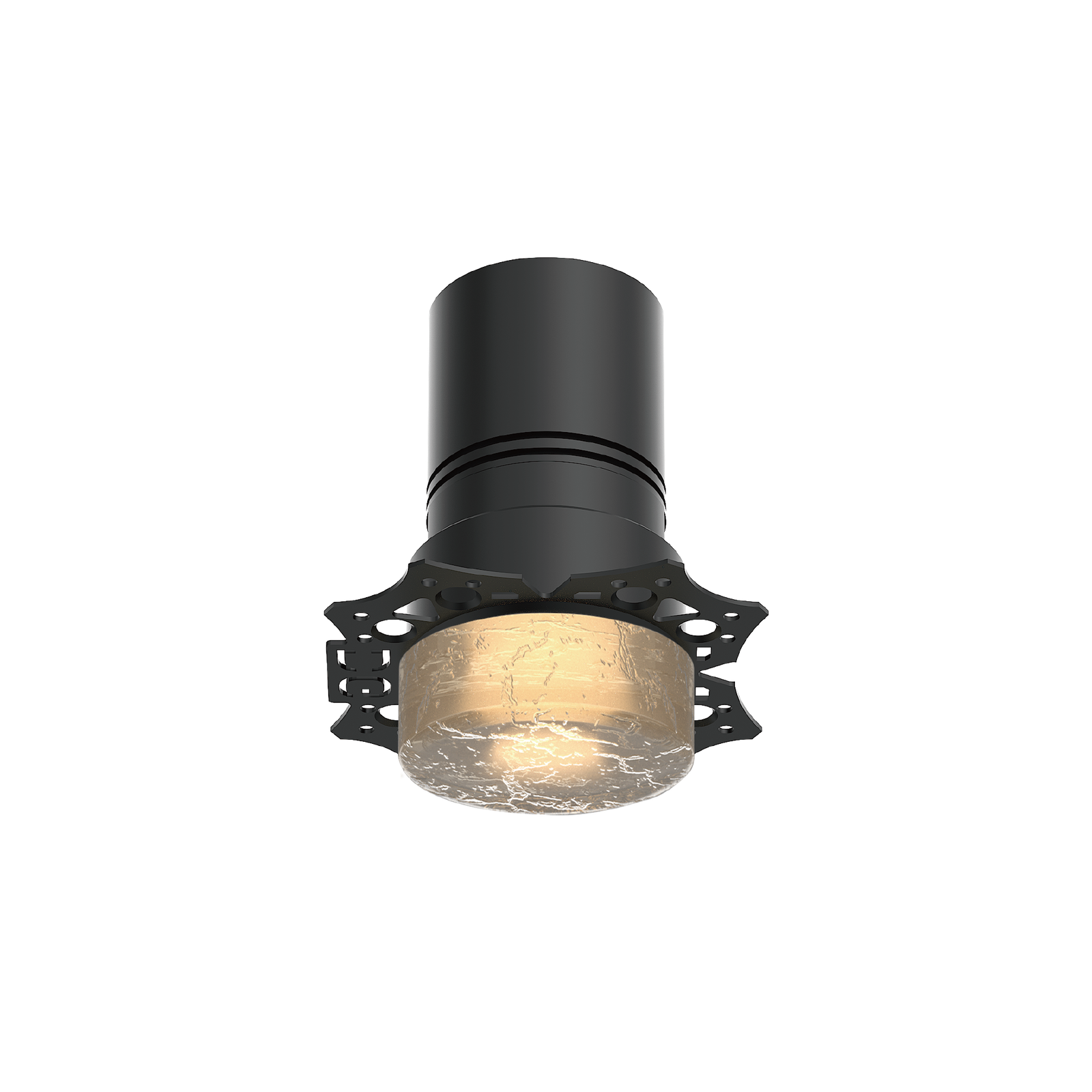

| Material : | Fine Aluminium 6063A + Alabaster Stone |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP20 and IP44 options |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 200mA 8W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP20 and IP44 options |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 200mA 8W |
| Ambient temp : | -20 ℃ to 45℃ |
| Optional accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
| IP Rating : | IP65 Front |
| Optics : | 15°/24°/36° |
| UGR : | <10 |
| CRI : | 98Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 2700K/3000K/2700K-6000K |
| Typical Source Efficacy (Im/W) : | 110 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | AC220-240V 50/60Hz |
| Output : | DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Optionsl Accessories : | Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter |
