ACME VELA

by DuraGreen

Sculpted simplicity for refined spaces.

ACME VELA reimagines the signature front tube of the ACME In-Out spotlight into a cleaner, more minimal spotlight family. Its pure cylindrical form, refined detailing, and broad selection of finishes make it a sophisticated choice for premium residential and commercial interiors.

White cylindrical track-light hanging from a black ceiling plate, with a green NEW badge on the right.
✖

SPEC

SIZE

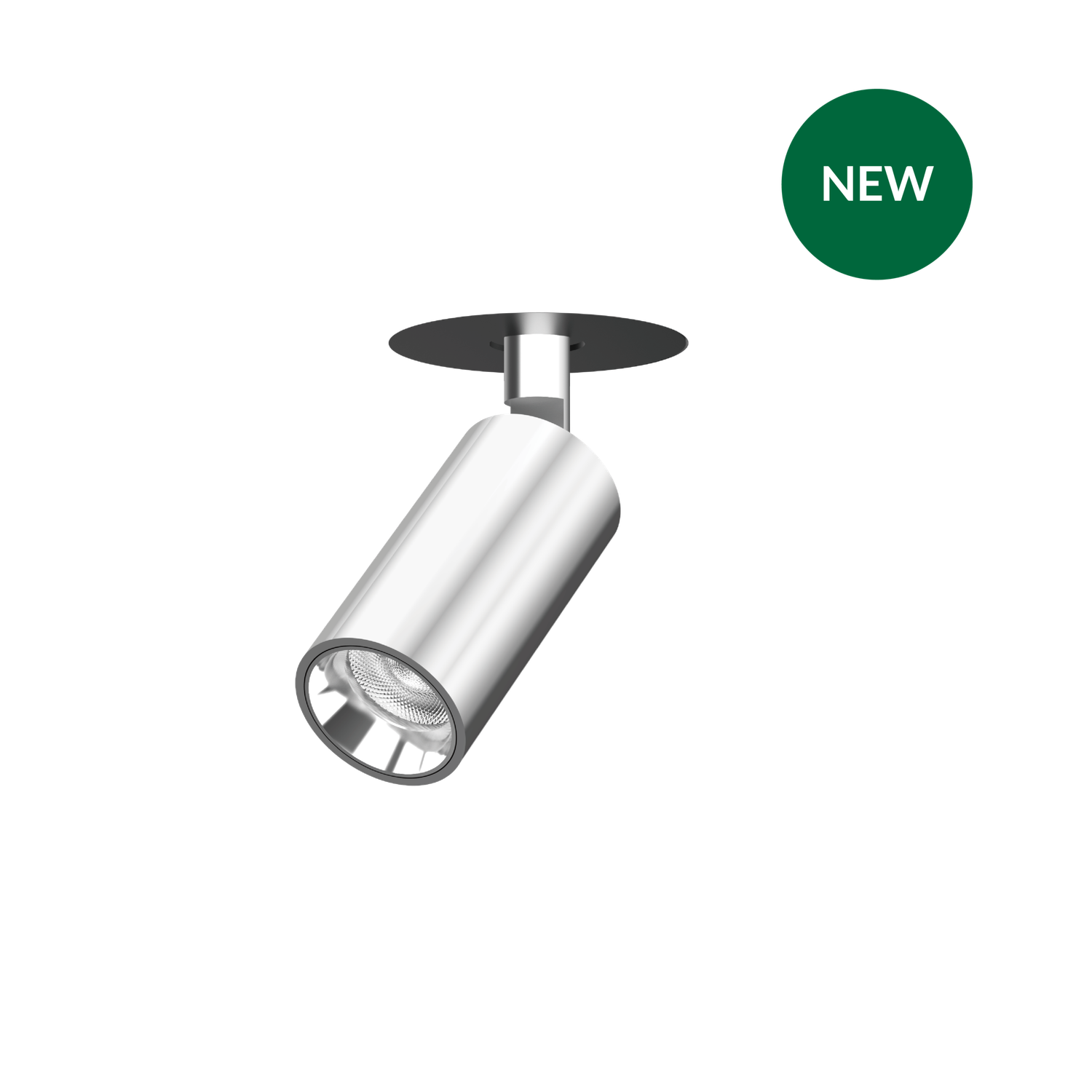

ACME VELA - 30 Spotlight Engine

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/28°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K （On request ）: 2200K / High efficiency 3000K Ra92 175 LM/W / Warm Dim 1800K- 3000K / Tunable white 1800K - 3000K / Tunable white 1800K - 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 150mA 6W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

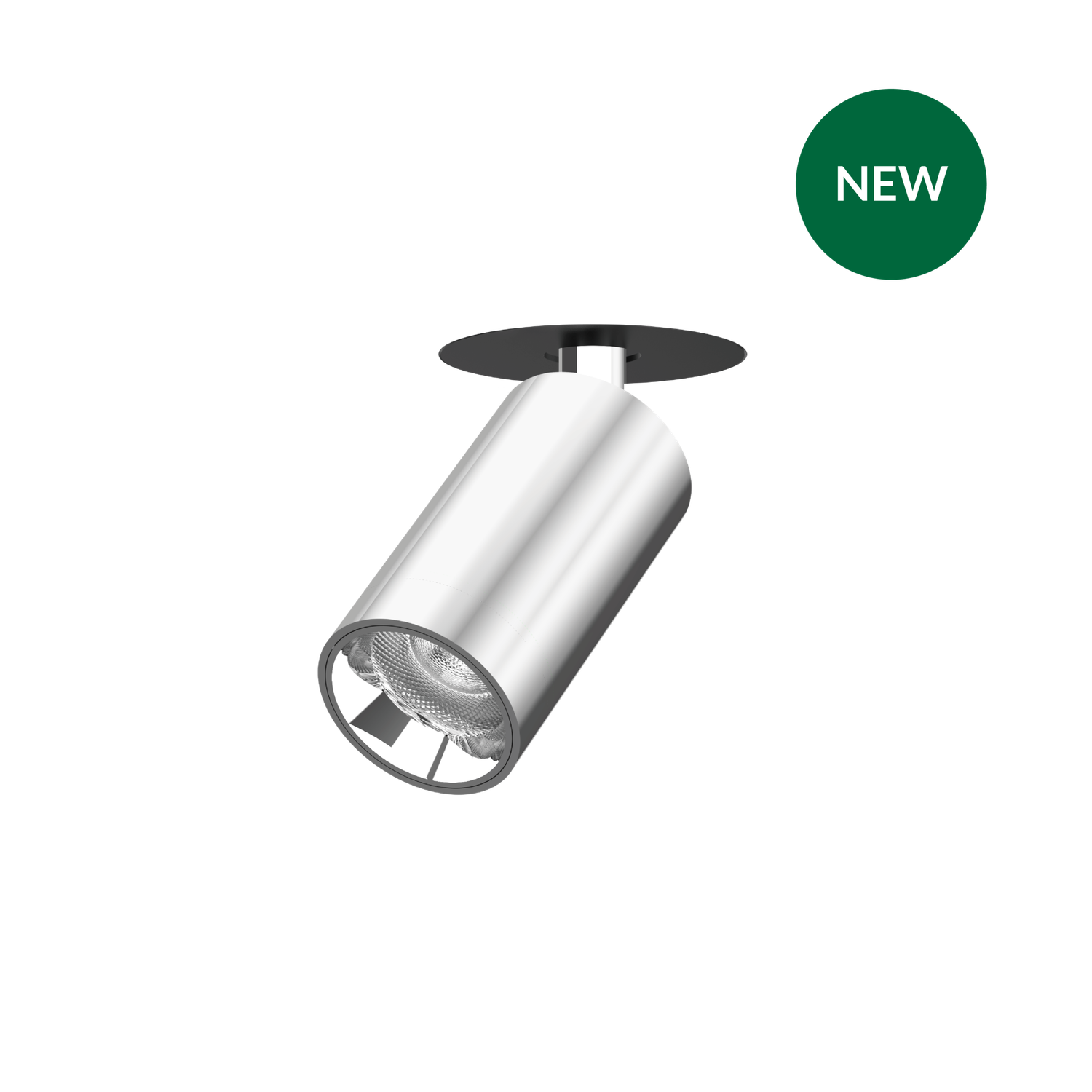

ACME VELA - 35 Spotlight Engine

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/24°/36°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K （On request） : 2200K / High efficiency 3000K Ra92 175 LM/W / Warm Dim 1800K- 3000K / Tunable white 1800K - 3000K / Tunable white 1800K - 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Output* :AC220-240V 50/60Hz
Ambient temp :DC 36V 200mA 8W
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

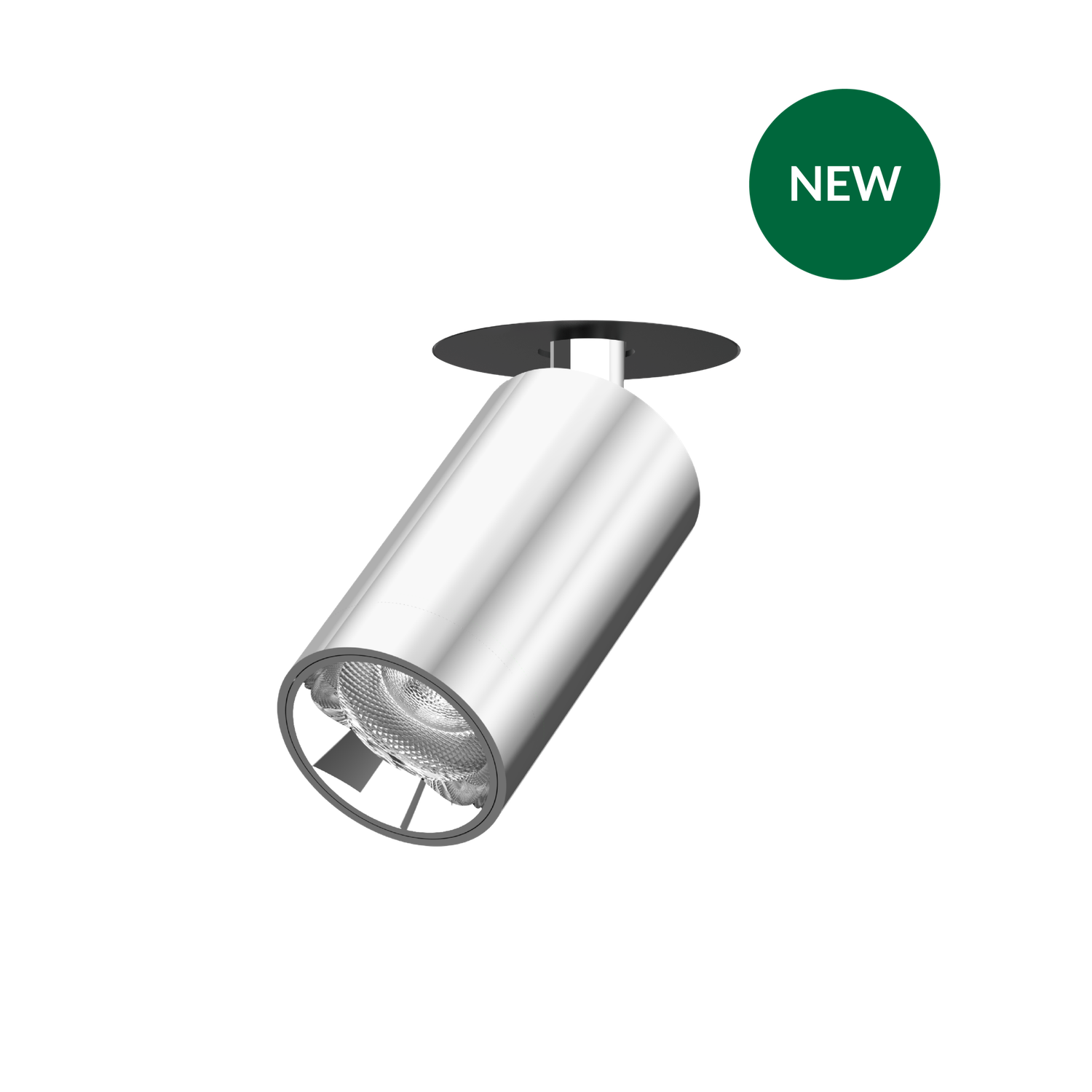

ACME VELA - 40 Spotlight Engine

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K （On request） : 2200K / High efficiency 3000K Ra92 175 LM/W / Warm Dim 1800K- 3000K / Tunable white 1800K - 3000K / Tunable white 1800K - 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

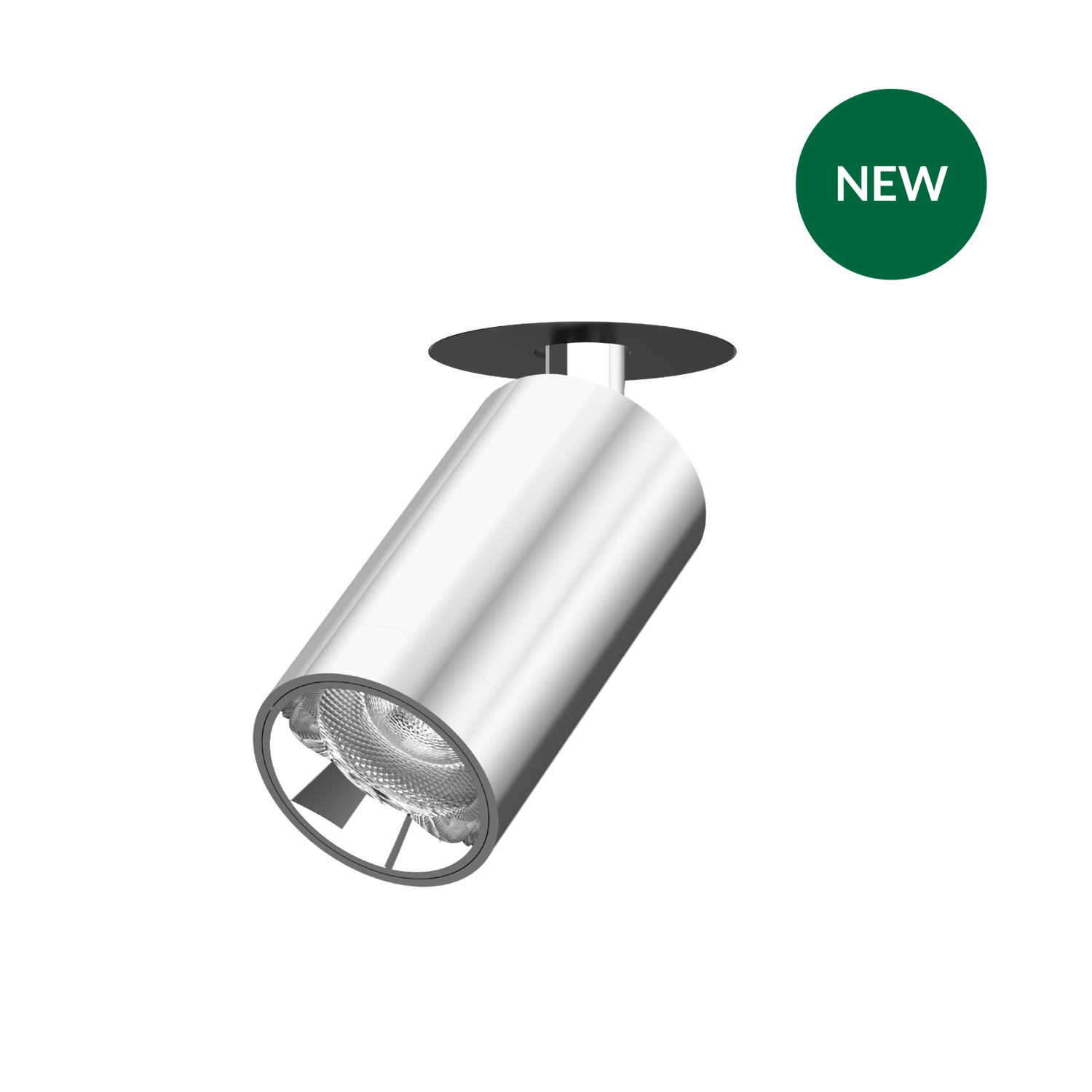

ACME VELA - 45 Spotlight Engine

Copy link QUOTE Share

IP Rating :IP44 front
Optics :15°/24°/36°/50°
UGR :<10
CRI/RF/RG/R9 :typ. 98/95/104/97
Lifetime :50,000 hrs (L90 B10)
CCT :2700K / 3000K / 3500K / 4000K / 2700K-6000K （On request ）: 2200K / High efficiency 3000K Ra92 175 LM/W / Warm Dim 1800K- 3000K / Tunable white 1800K - 3000K / Tunable white 1800K - 4000K
Typical Source Efficacy (Im/W) :110
Control :On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 36V 250mA 10W
Ambient temp :-20 ℃ to 25 ℃
Optionsl Accessories :Honeycomb, Elliptical Lens,Solite lens

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
