FOCUS family of uplights is a compact, high‑performance range designed to bring both landscape and architecture to life with clean, comfortable accents. From intimate gardens to expansive façades, the different sizes and wattages let you scale a scheme while keeping a consistent, refined aesthetic.

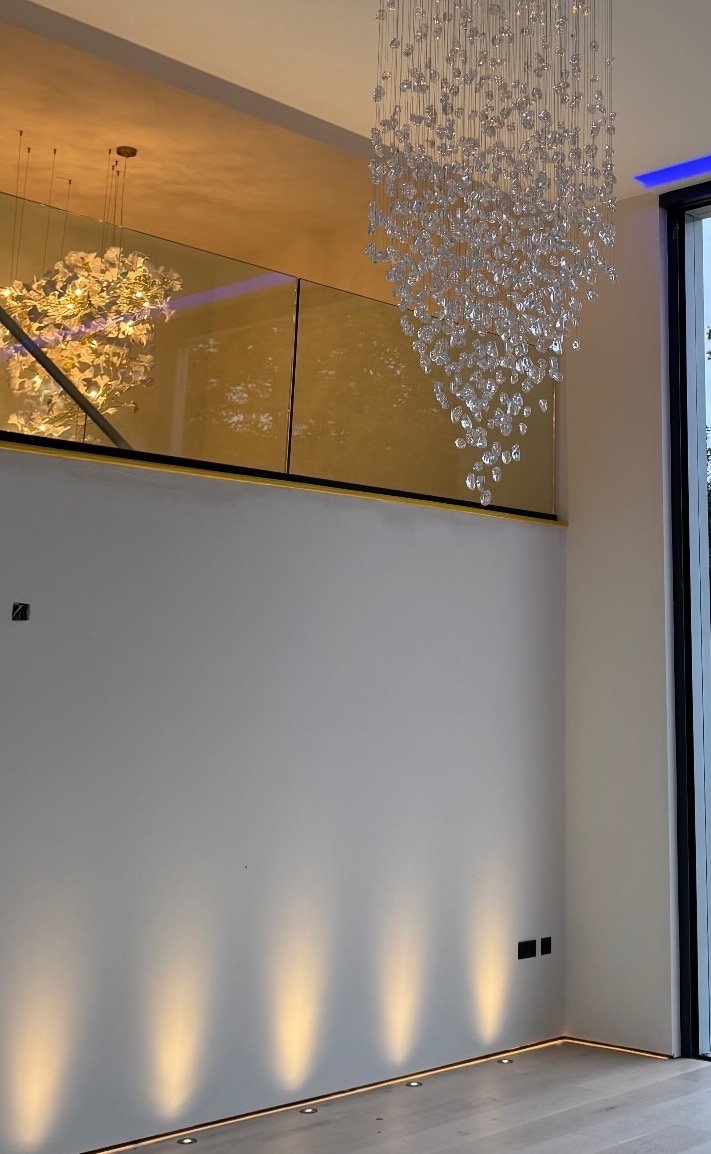

A coherent set of optics (15°/24°/36°), 3000K, high CRI 92 and tight colour consistency deliver cohesive, premium results across every view—outdoors and indoors. Used inside, FOCUS uplights can be concealed at the base of walls, columns or planting to add drama, model texture and subtly increase the perceived depth of the space. Robust IP67 construction and long lifetimes make the range a durable, low‑maintenance solution for long‑term architectural schemes.
| IP Rating : | IP67 |
| Optics : | 10°/20°/30° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K（3000K on request) |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | 24VDC Verison / AC 220-240V Verison |
| Output* : | DC 3V 700mA 2.5W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K, 3000K (2400K, 3500K,4000K on request) |
| Typical Source Efficacy (Im/W) : | 140 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | 24VDC Verison / AC 220-240V Verison |
| Output* : | DC 18V 350mA 7W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K, 3000K (2400K, 3500K,4000K on request) |
| Typical Source Efficacy (Im/W) : | 140 |
| Control : | On/off, Phase Cut, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Input : | 24VDC Verison / AC 220-240V Verison |
| Output* : | DC 18V 500mA 10W, 700mA 15W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | 50,000 hrs (L90 B10) |
| CCT : | 2700K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W) : | 20W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
