HIGH EFFICIENCY RECESSED

by DuraGreen

DuraGreen proudly introduces the range of high-efficiency, Part L-compliant downlights and spotlights, which utilize cutting-edge high-efficiency LED chip that deliver a remarkable 140 lumens per watt. These products are specifically designed for spaces that require increased lighting output while ensuring full compliance with Part L building regulations. Moreover, they support the UK’s ambitious Net Zero goals by reducing greenhouse gas emissions.

✖

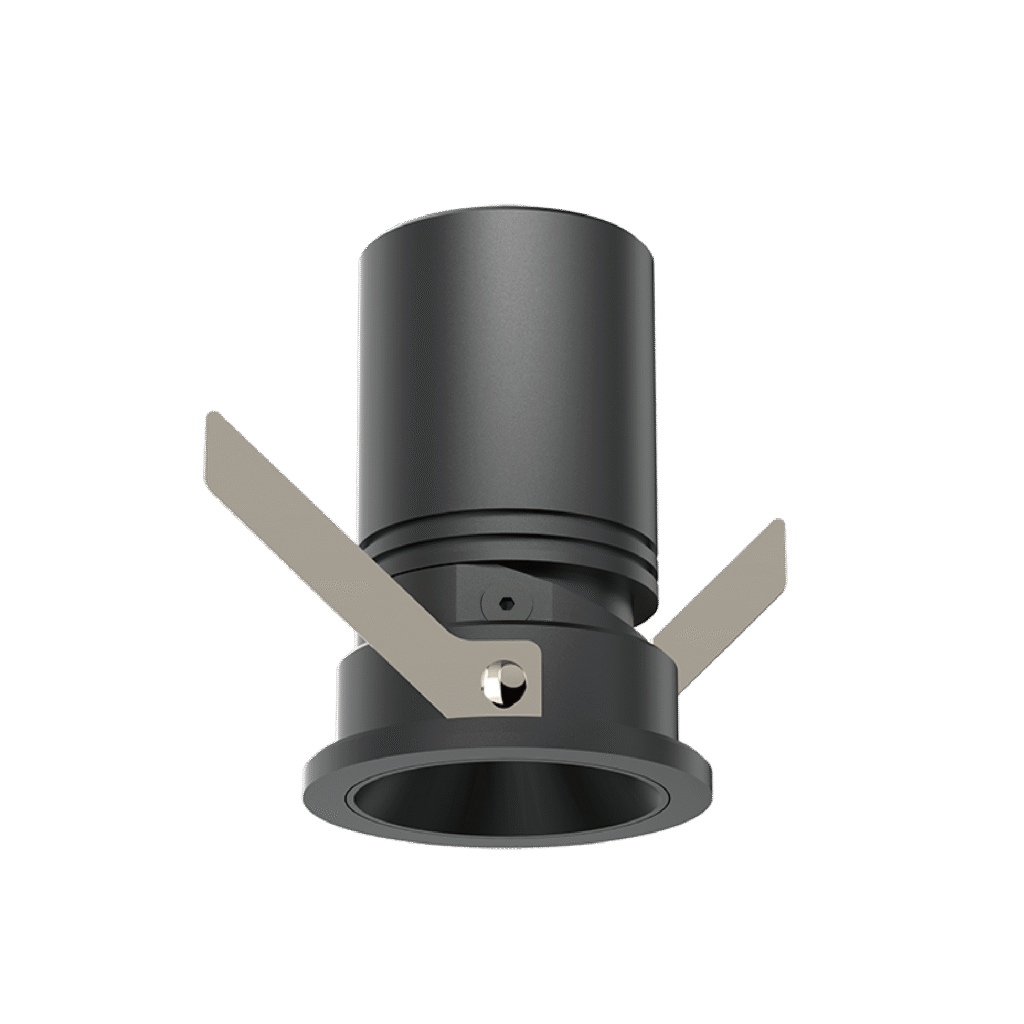

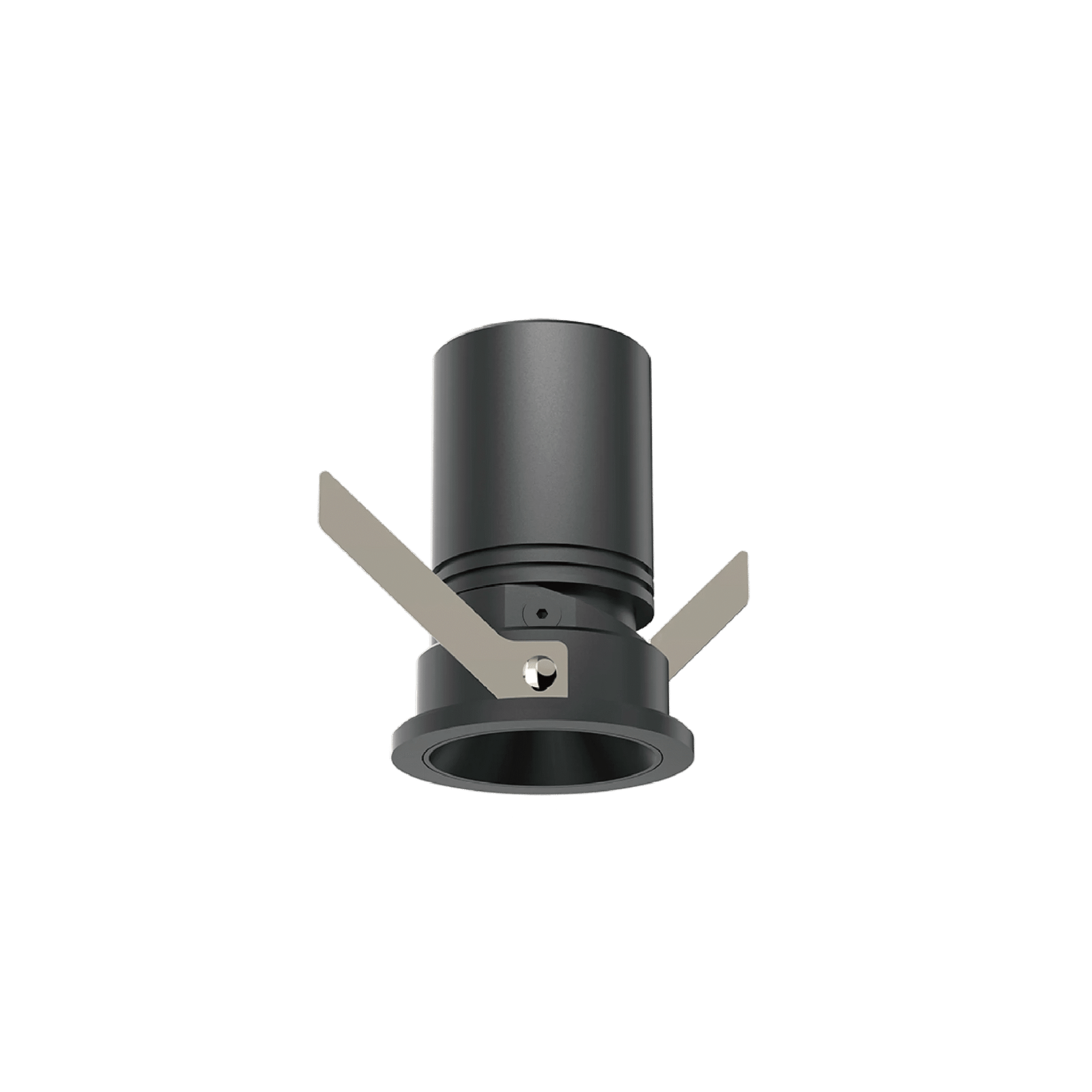

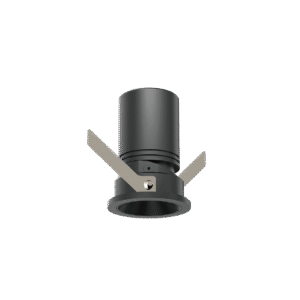

HIGH EFFICIENCY RECESSED - Part L Compliant 50 Straight Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

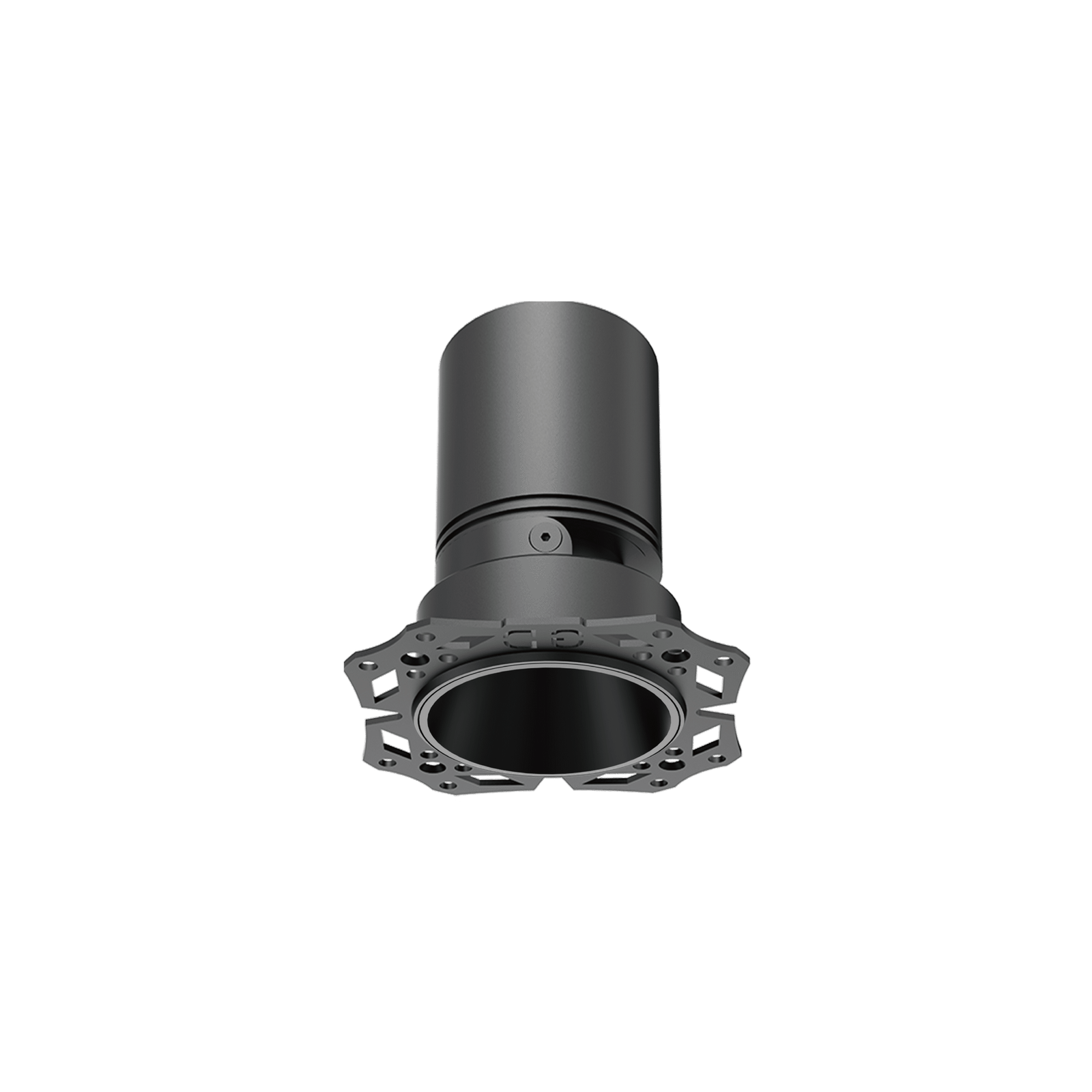

HIGH EFFICIENCY RECESSED - Part L Compliant 50 Straight Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

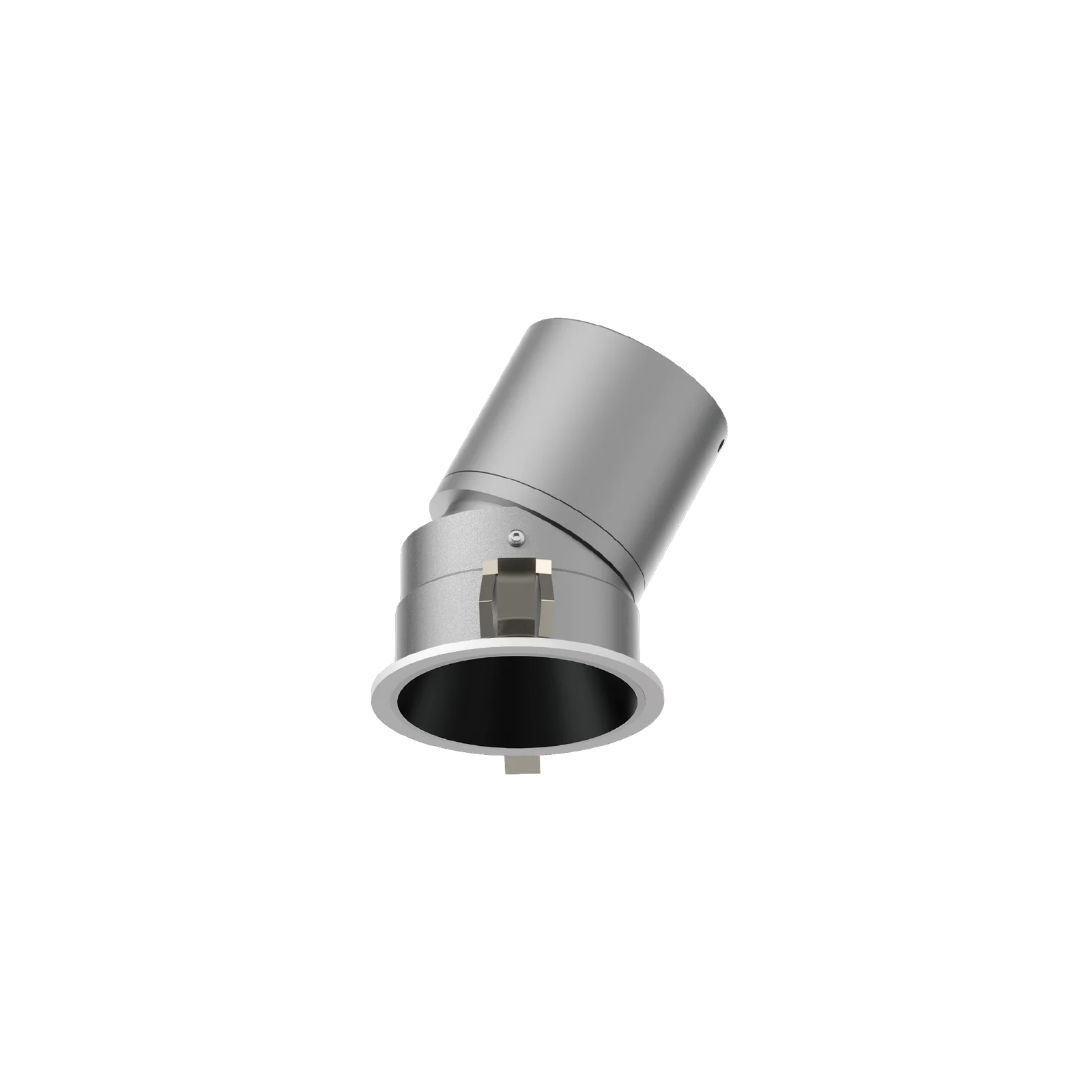

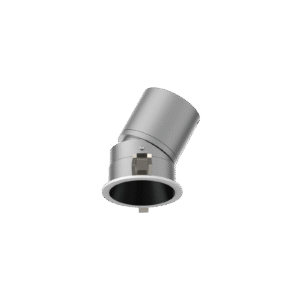

HIGH EFFICIENCY RECESSED - Part L Compliant 50 Curve Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 50 Curve Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 50 Semi Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 100mA 4W DC 36V 150mA 6W DC 36V 200mA 8W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 57 Straight Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (lm/W） :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 57 Straight Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (lm/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 57 Curve Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 57 Curve Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 57 Semi Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 150mA 6W DC 36V 200mA 8W DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

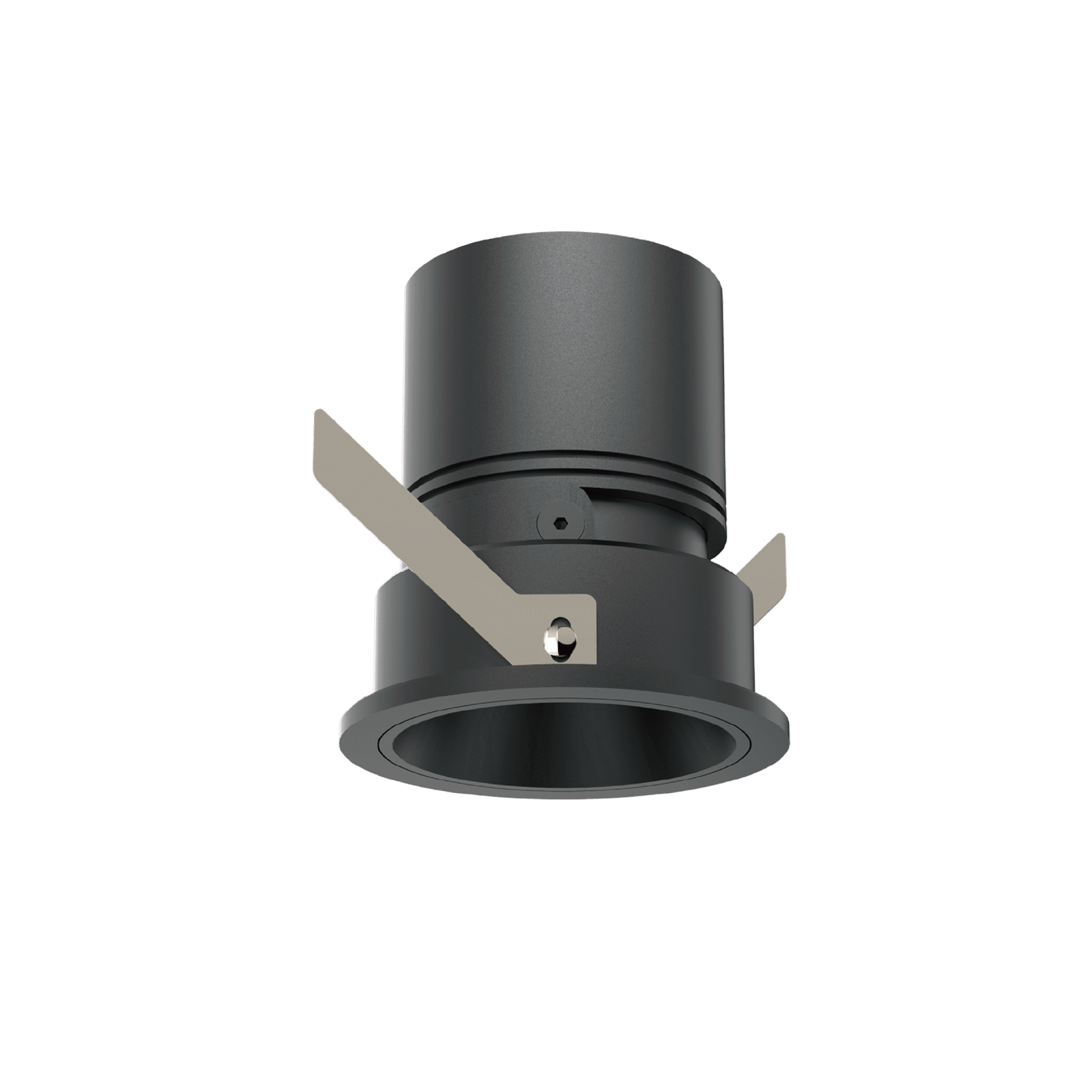

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Straight Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

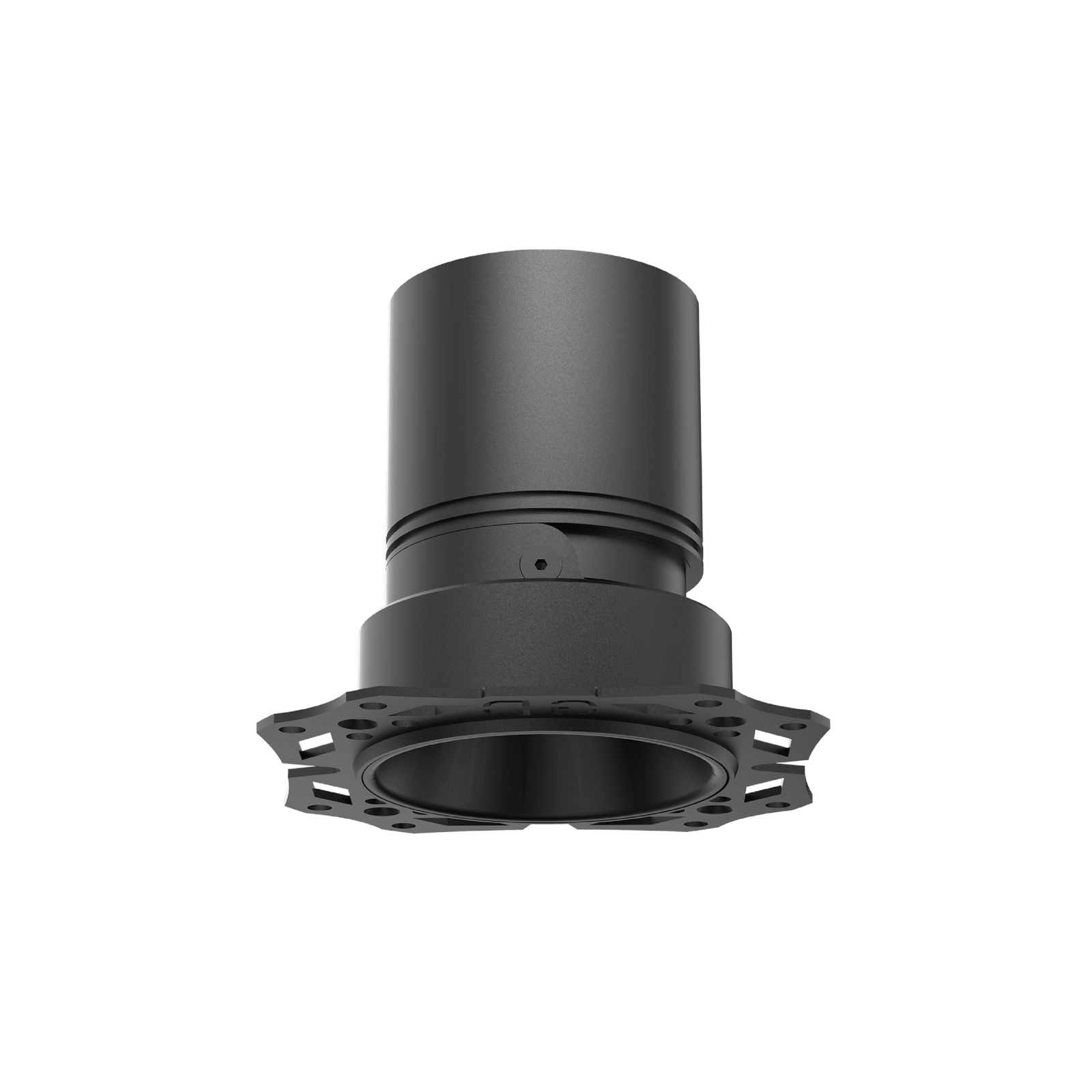

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Straight Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Curve Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Curve Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optional accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Semi Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

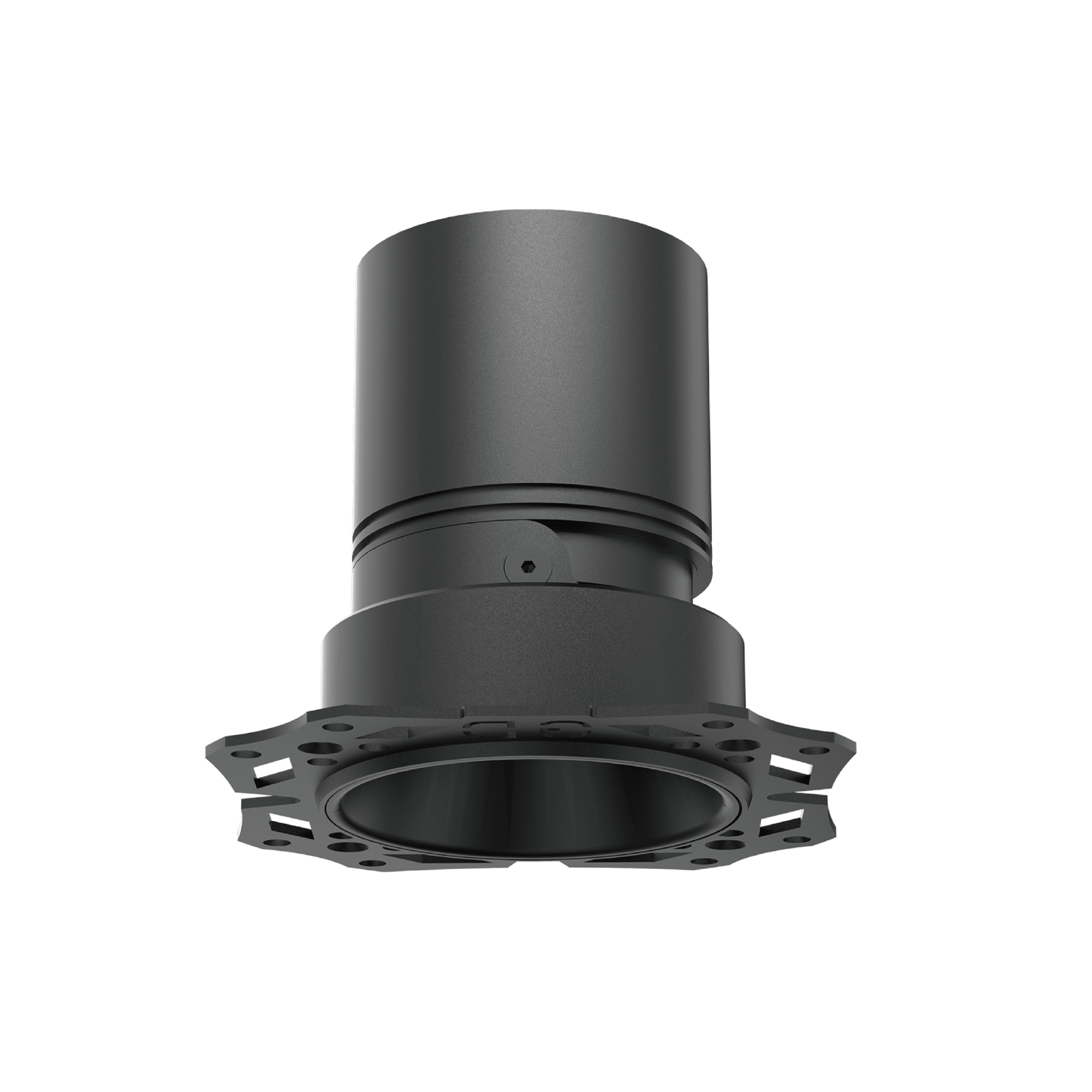

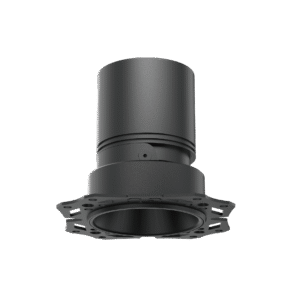

HIGH EFFICIENCY RECESSED - Part L Compliant 78 Straight Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 12V 700mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

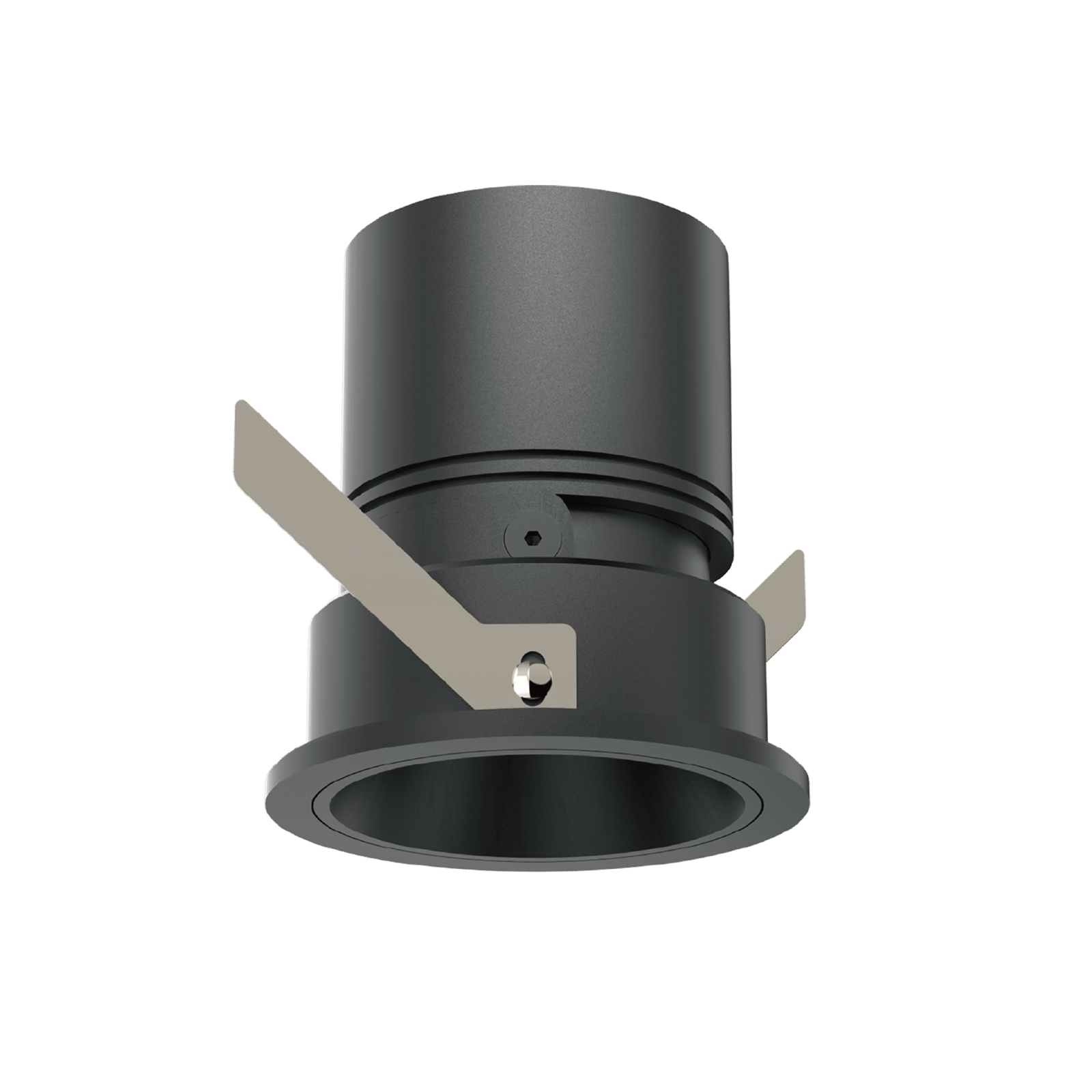

HIGH EFFICIENCY RECESSED - Part L Compliant 78 Straight Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W DC 36V 250mA 10W DC 12V 700mA 10W DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 78 Curve Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 12V 700mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 78 Curve Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 12V 700mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 78 Semi Adjustable Trimless

Copy link Share

IP Rating :IP65 Front
Optics :5°/10°/15°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W / DC 36V 250mA 10W / DC 12V 700mA 10W / DC 36V 300mA 12W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 60 Adjustable

Copy link Share

IP Rating :IP65 Front
Optics :10°/24°/36°/50°
UGR :<10
CRI :92Ra / 98Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :2700K/3000K/3500K/4000K/5000K/ 2000K-3000K/1800K-4000K/2700K-6000K
Typical Source Efficacy (Im/W) :140 (92Ra) / 110 (98Ra)
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output :DC 36V 200mA 8W / DC 36V 250mA 10W
Ambient temp :-20 ℃ to 45 ℃
Optionsl Accessories :Honeycomb louvre, Solite Lense, Spread Lense, Colour Filter

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 75 Adjustable

Copy link Share

IP Rating :IP44 and IP65 options（from the front）
Optics :12°/24°/36°/56°
UGR :<10
CRI(typ)(R9) :2700K 93 (73) , 3000K 92 (65)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140 (Luminus CXM Gen6)
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Input Voltage(typ) :33V
Drive Current :300mA
LED Power :9.9W
Power inc. Driver :12W
Luminaire Lm/CW :102 Lm/CW

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 75 Adjustable Trimless

Copy link Share

IP Rating :IP44 and IP65 options（from the front）
Optics :12°/24°/36°/56°
UGR :<10
CRI(typ)(R9) :2700K 93 (73) , 3000K 92 (65)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140(Luminus CXM Gen6)
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Input Voltage(typ) :33V
Drive Current :300mA
LED Power :9.9W
Power inc. Driver :12W
Luminaire Lm/CW :102 Lm/CW

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Zoomable Spotlight

Copy link Share

IP Rating :IP44
Optics :Zoomable 15°-50°
UGR :<17
CRI(typ)(R9) :2700K 93 (73) , 3000K 92 (65)
CCT :2700K/3000K
Typical Source Efficacy (lm/W) :140(Luminus CXM Gen6)
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Input Voltage(typ) :33V
Drive Current :300mA
LED Power :9.9W
Power inc. Driver :12W
Luminaire Lm/CW :87 Lm/CW

DOWNLOADS

Certifications

DIMENSIONS

Contact Us
✖

HIGH EFFICIENCY RECESSED - Part L Compliant 68 Zoomable Trimless Spotlight

Copy link Share

IP Rating :IP44
Optics :Zoomable 15°-50°
UGR :<17
CRI(typ)(R9) :2700K 93 (73) , 3000K 92 (65)
CCT :2700K/3000K
Typical Source Efficacy (Im/W) :140(Luminus CXM Gen6)
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Input Voltage(typ) :33V
Drive Current :300mA
LED Power :9.9W
Power inc. Driver :12W
Luminaire Lm/CW :87 Lm/CW

DOWNLOADS

Certifications

DIMENSIONS

Contact Us

Why This Light

You might also like

all products

Related products

Our team connects creativity with engineering.

We support the seen and the often invisible infrastructure of lighting technology, bringing imagination to light in projects across Australia.

Meet the team

Navigation

Information

Information

Join us

Join us

© 2024 DuraGreen

Terms & Conditions

text

✖
Share
